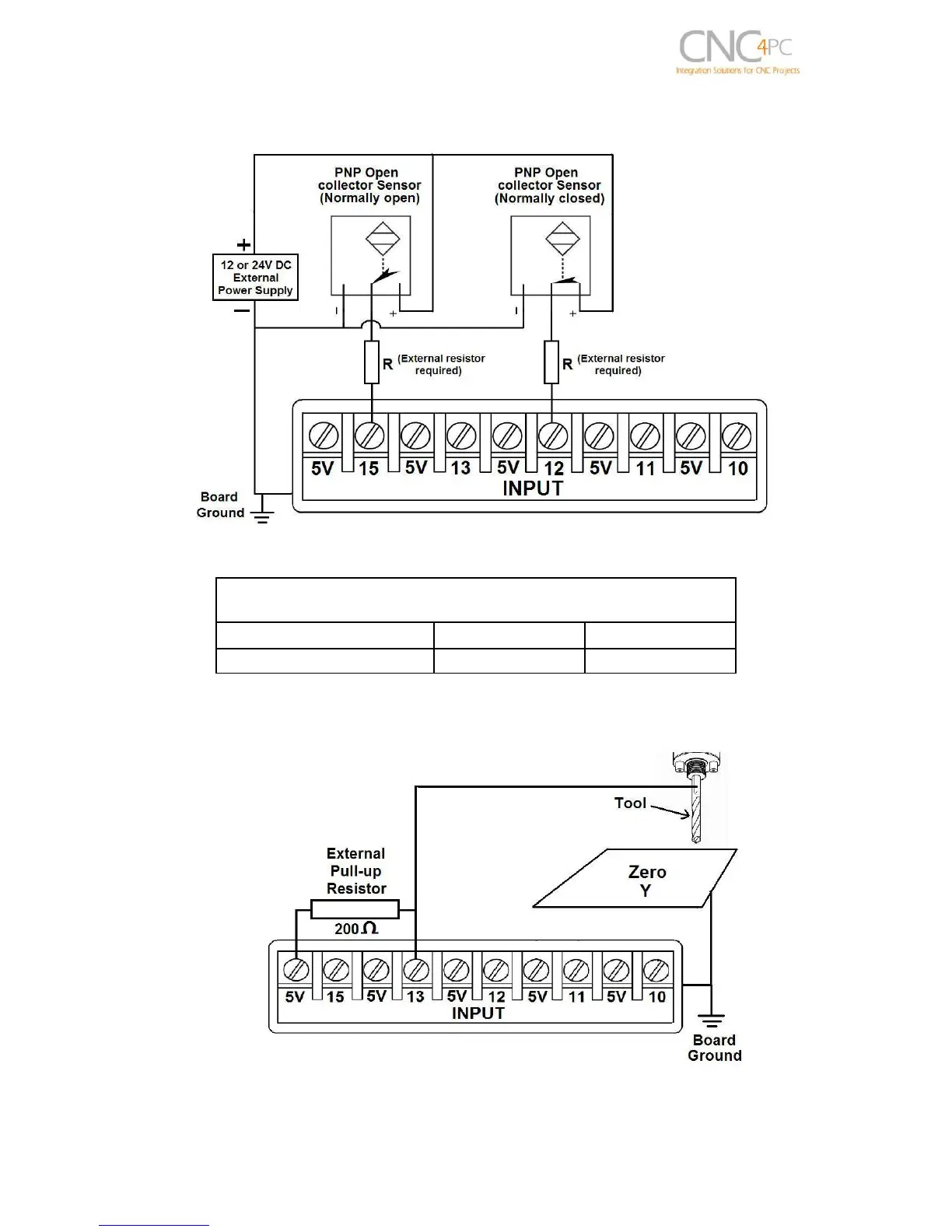

Wiring diagram to connect PNP open collector proximity sensors
Connecting PNP open collector proximity sensor with
the C32 Rev.3
Board
R Value (12V)
R Value (24V)
C32 Rev. 3
470Ω
1KΩ
Table 15 R value to Connect PNP open collector proximity sensor with the C33.
Wiring diagram to do an “Auto Tool Zero”
