To transmit at 1000Mbps requires Category 5 TP cable using four (4) pair wires.
2.2.4 Status LEDs
This Switch comes with a complete range of LEDs. The table below lists each LEDs name,
color and a brief description of its function.
Name Color Function
PWR Green Lit: Power "On"
Ports 1~24
LINK/ACT
Green(100Mbps)
Yellow(10Mbps)
Lit: When the port has a valid physical connection with another device.
Blinks: When the port is sending or receiving data (Activity).
Ports 1~24
FD/COL
Green Lit: When the port is set to Full-Duplex mode.
Blinks: When a collision is detected in Half-Duplex mode.
Ports 25,26
1000
Green Lit: When the port has a valid physical connection with another device at
1000Mbps.
Blink: When the port is sending or receiving data (Activity).
Ports 25,26
100
Green Lit: When the port has a valid physical connection with another device at 100Mbps.
Blink: When the port is sending or receiving data (Activity).
Ports 25,26
10
Green Lit: When the port has a valid physical connection with another device at 10Mbps.
Blink: When the port is sending or receiving data (Activity).
Ports 25,26
FD/COL
Green Lit: When the port is set to Full-Duplex mode.
Blinks: When a collision is detected in Half-Duplex mode.

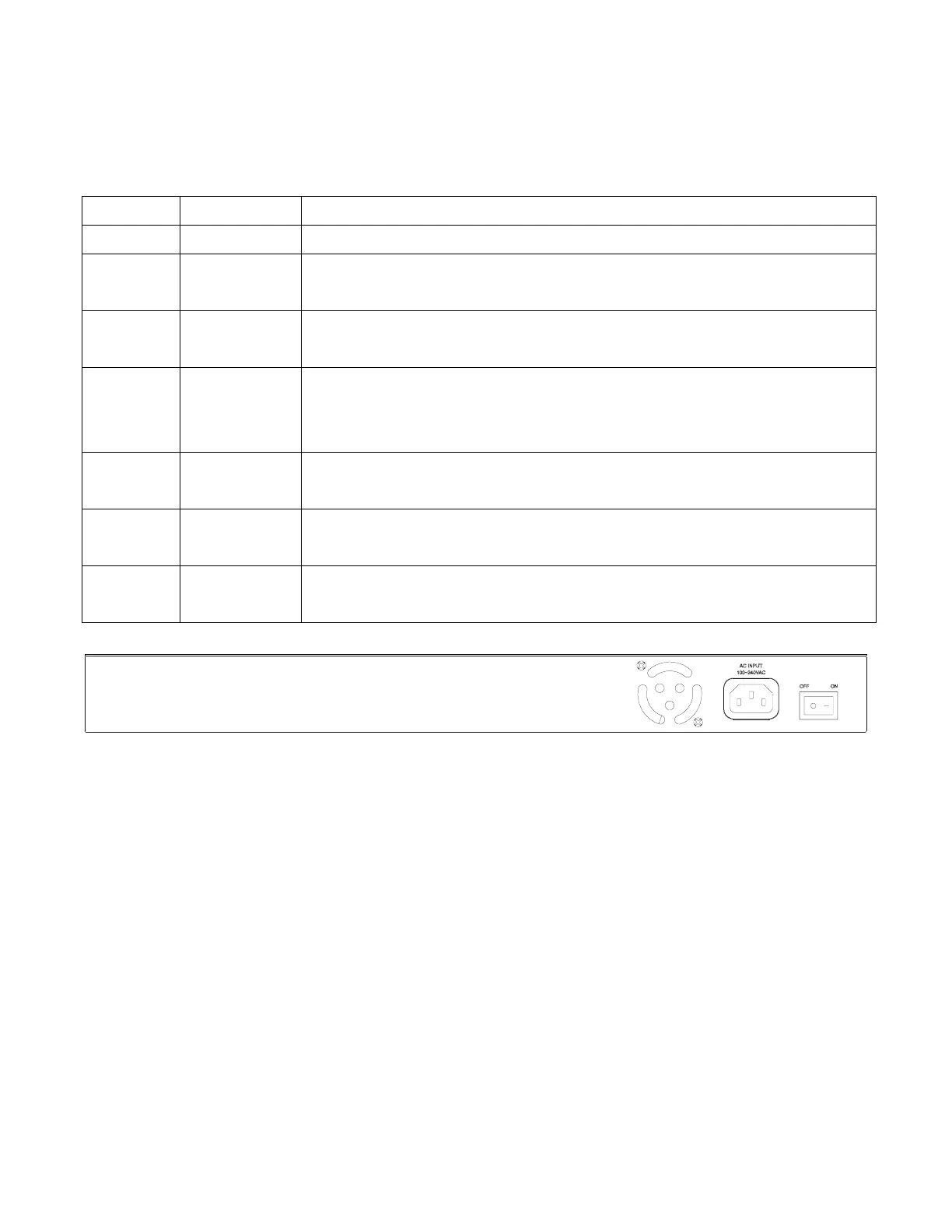

2.3 The Rear Panel
2.3.1 ON/OFF ("Reset") Switch
The power ON/OFF switch is located to the far right of the rear panel - next to the power
connector.
To Reset the Switch, turn the power switch "OFF", then "ON".
Note: The Switch must be reset when the MAC address table needs to be rebuilt.
2.3.2 Power Socket
The Power Socket is designed to be used with the power cord included in the product package.
• Attach the female end of the power cord to the male power connector on the back panel.
• Attach the male end of the power cord to a grounded power outlet.
2.3.3 Fan
Note: Please keep the fan area clear, so that the cooling function is not impaired.
