CO/Tech LBC 36 - Idle Speed Adjustment; Air Filter Servicing

14
ENGLISH

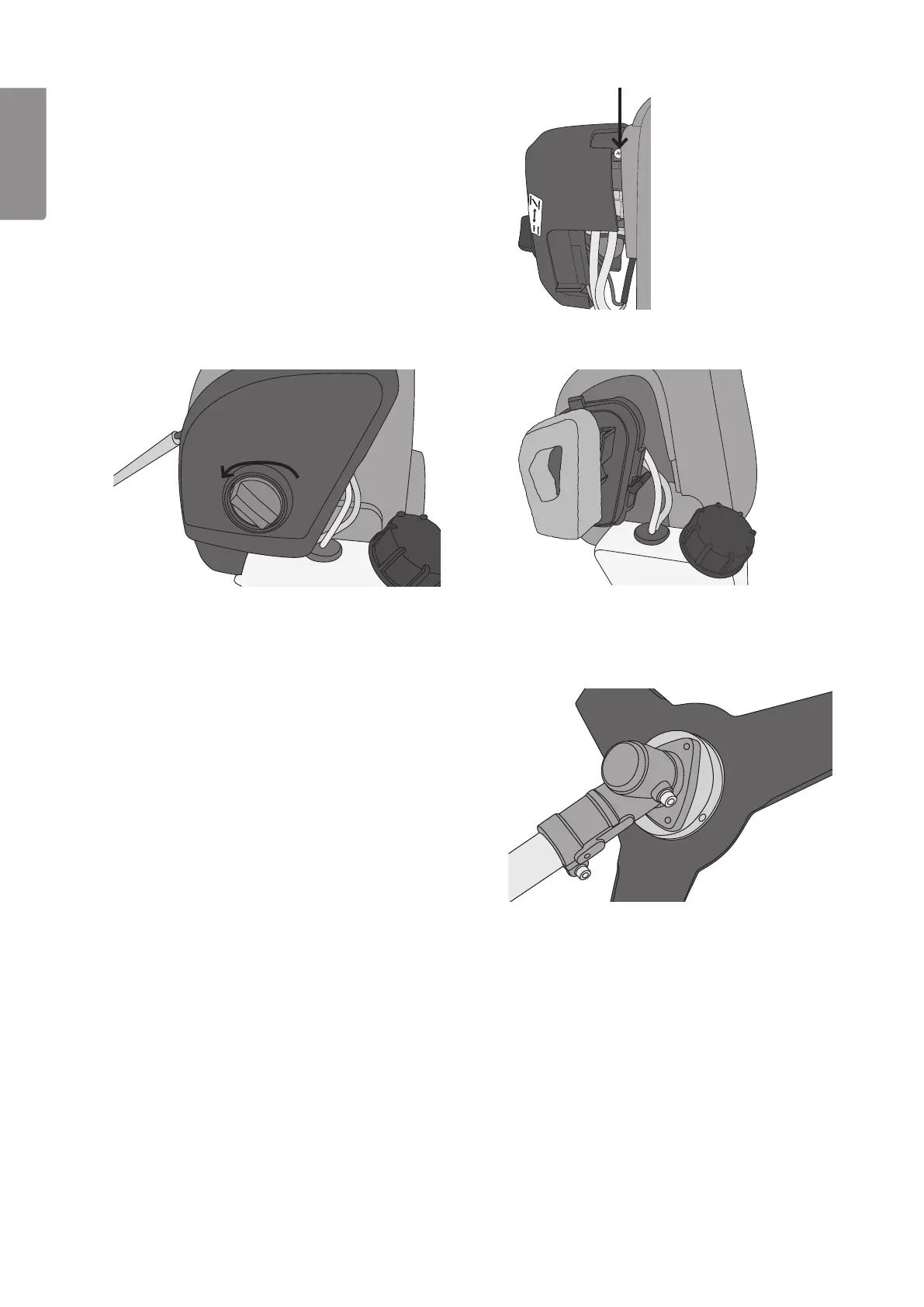

Idle speed adjustment
Any adjustment of theidle speed should be carried out when
theengine iswarm.
Carefully turn theidle speed adjustment screw as follows:
• Clockwise: Higheridlespeed.
• Anticlockwise: Loweridlespeed.
1. Remove theplastic cover over theair filter and
carburettor.
2. Remove theair filter and wash it in mild
soapywater.
3. Allow thefilter to completely dry before refitting it.
Air filter
Lubrication of the head angle adjuster
The head angle adjuster should be lubricated after
every 25 hours of operation.
1. Loosen thehead of thebolt on theside of
thegearbox and smear thepivot with some high
temperature grease.
2. Wipe off any excess grease.
3. Tighten thebolt.
