3. Release thecatch and then pull on thepipe to make
sure that thecatch has located in thehole and
fastened thepipe inplace.
4. Make sure that thelower frame pipe with thetrimmer
head is at thecorrect angle to theupper frame pipe
with thehandle and engine. Pushthelocking plate
down and tighten thelocking knob (see fig.).
5. To detach thelower frame pipe, undo thelocking knob,
press in therelease catch and pull thepipe out of
theclamp.

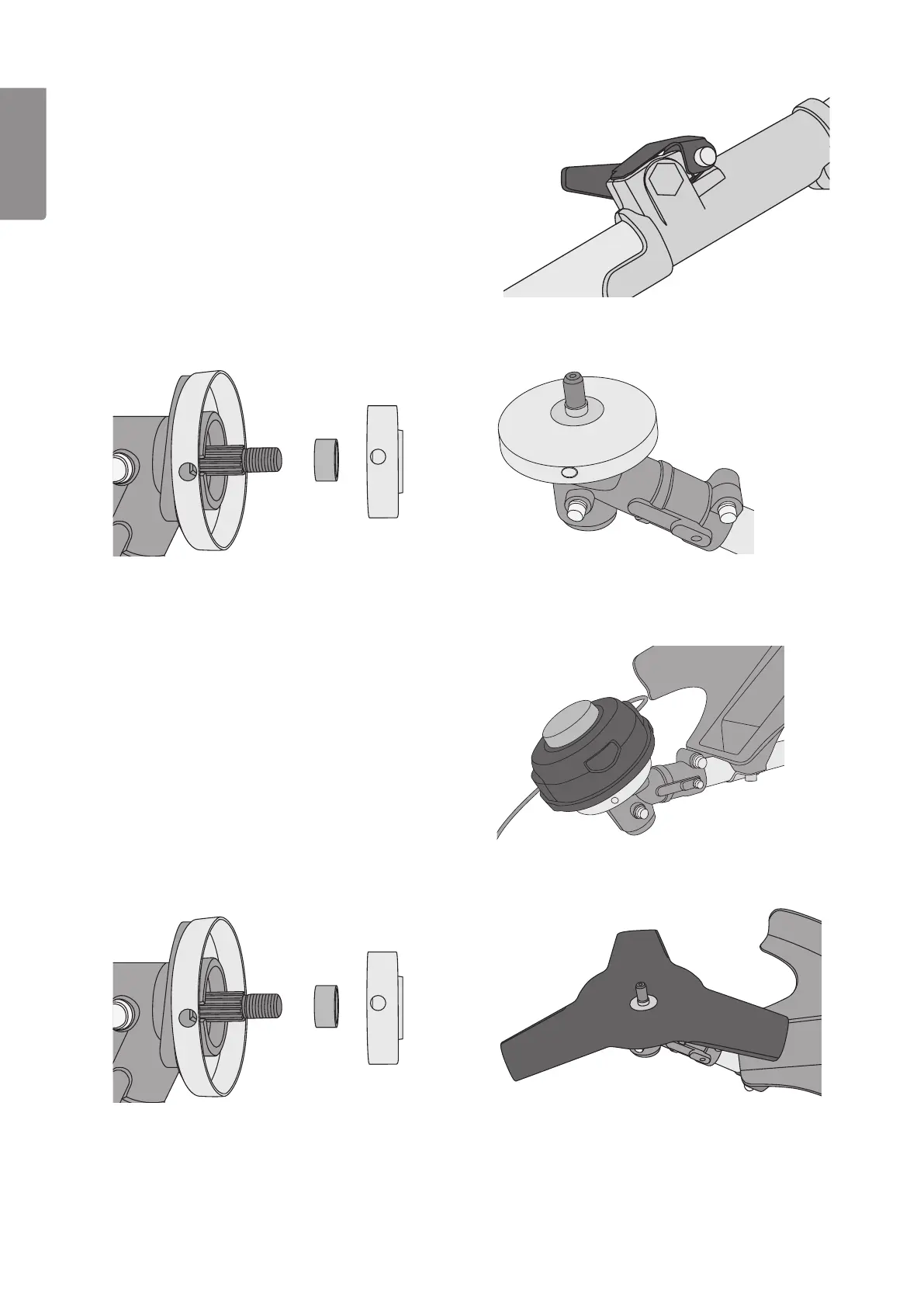

1. Fit the spacer and the inner support washer.
Make sure that the hole in the support washer
lines up with the hole in the housing.
1. Fit the spacer and the inner support washer.
Make sure that the hole in the support washer
lines up with the hole in the housing.
3. Lock thedrive shaft by poking thelarger of
thetwo included Allen keys through all three
holes in thecover, housing and theinner
supportwasher.
4. Thread thetrimmer head onto thedrive shaft
and screw it finger-tight (see fig.).
Note: Thetrimmer head has aleft-handed
thread, so you have to tighten it by turning it
the“wrong way”.
5. Remove theAllenkey.
2. Fit thecover over thehousing so that theholes
lineup.
2. Place thebrush cutter blade onto theinner
support washer (the text on theblade should
be face down, against thewasher), make sure
theblade is flat against thewasher.
Fitting the trimmer head
Fitting the brush cutter blade
