Assembly

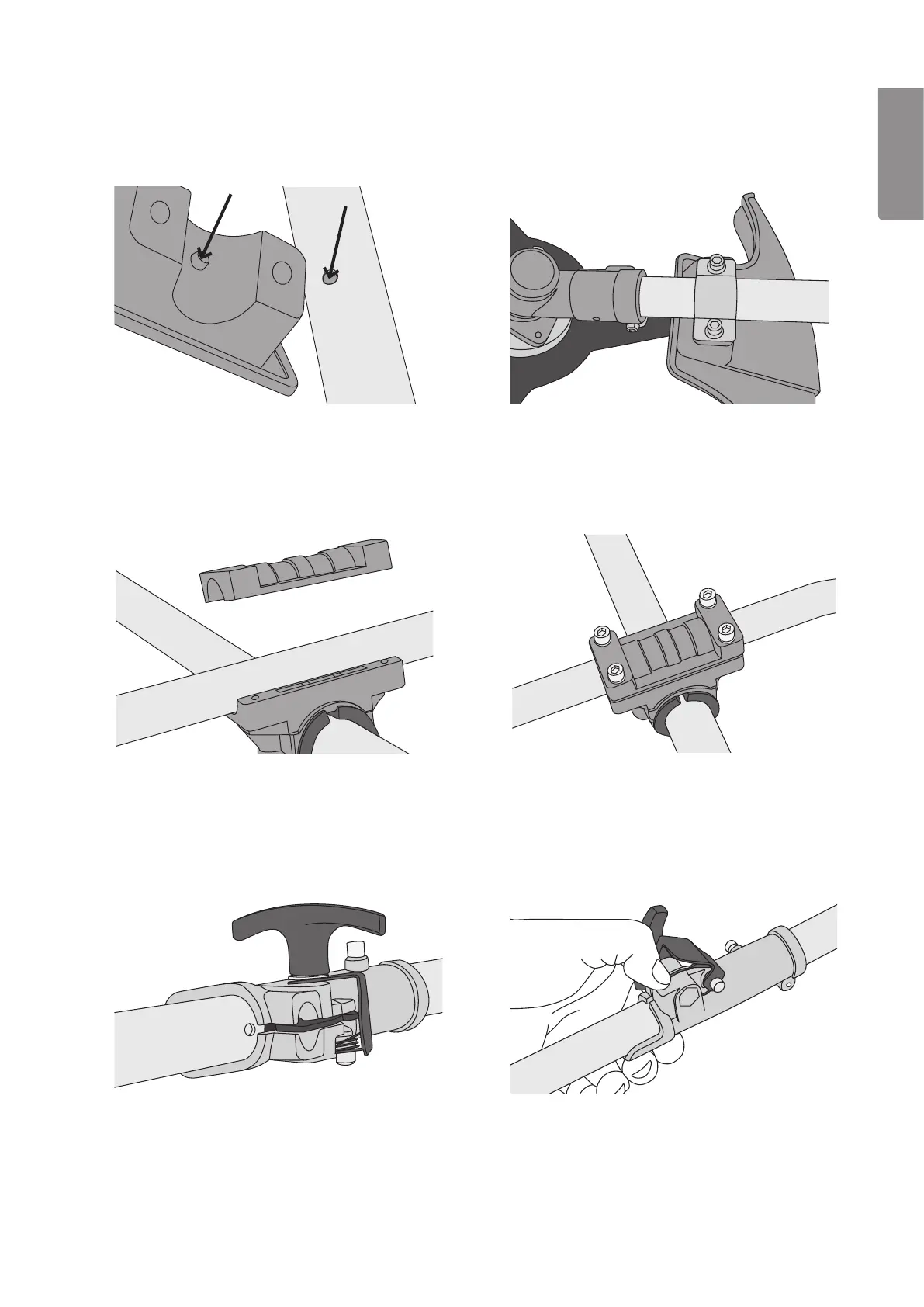

Attaching the debris shield
1. Remove thetwo screws and theholder from thedebris shield.
2. Make sure that thepeg in theshield bracket
slots into thenotch in theframepipe.
2. Place thebike handle into theclamp and screw
thetop of theclamp back on loosely.
1. Undo theclamp on theupper frame pipe
to release thelocking plate. Insertthelower
frame pipe into theclamp so that thehole in
thepipe lines up with theslot in theclamp and
therelease catch.
3. Attach theholder and tighten thescrews.
3. Adjust theangle of thehandle before tightening
thefour screws.
2. Press therelease catch in and slide thetwo
halves of theframe pipe together.
Attaching the handle
1. Open thehandle clamp by removing thefour screws.
Assembling the frame pipe
