Coats 775 - Control Panel and Display

6 • Important: Always read and follow the instructions.
Control Panel And Display
1-2 Digital readouts, AMOUNT OF UNBALANCE,
inside/outside
3-4 Digital readouts, POSITION OF UNBALANCE,
inside/outside
5 Push button, FUNCTIONS MENU
6 Menu selection confirmation push button
8 Push button, SPLIT (unbalance resolution)
9 Clip Mode selection button
10/10a Correction mode selection push buttons
11 CORRECTION MODE display push button
12 Push button, unbalance reading < 0.25 oz (5 g)
13 Push button, emergency/EXIT
14 Push button, cycle start
15 Push buttons, manual DISTANCE setting
16 Push buttons, manual DIAMETER setting
17 Push buttons, manual WIDTH setting
18 Dot matrix function display
1-2 Digital readouts, AMOUNT OF UNBALANCE,
inside/outside
3-4 Digital readouts, POSITION OF UNBALANCE,
inside/outside
5 Push button, FUNCTIONS MENU
6 Menu selection confirmation push button
7 gr./oz selection push button
8 Push button, SPLIT (unbalance resolution)
9 Clip Mode selection button
10/10a Correction mode selection push buttons
11 CORRECTION MODE display push button
12 Push button, unbalance reading < 0.25 oz (5 g)
13 Push button, emergency/EXIT
14 Push button, cycle start
15 Position repeater push button
16 Minimize/MENU button
17 Maximize/MENU button
18 Dot matrix function display

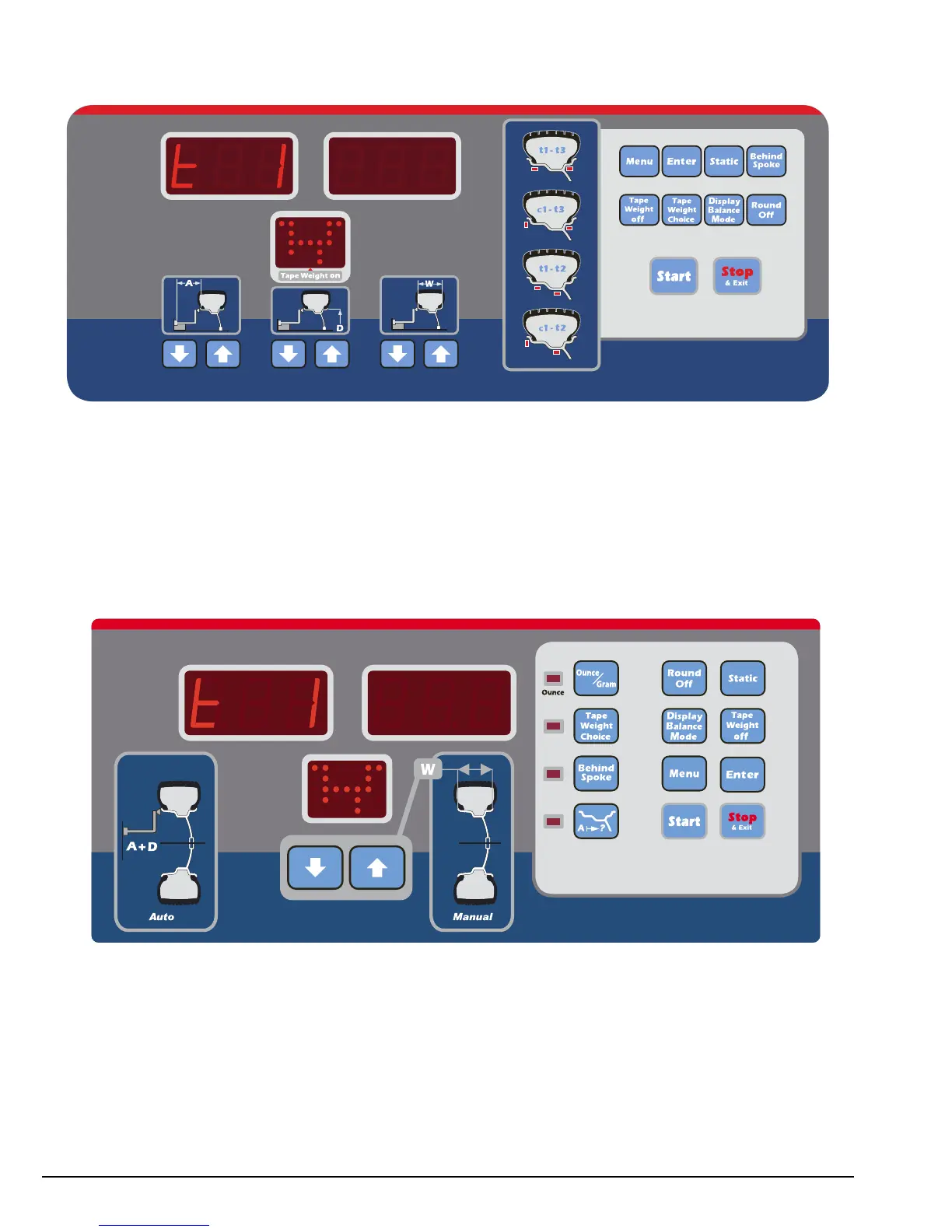

775 Control Panel
875 Control Panel
1
2
3
4
56
8
9
10
11
12
13
14
15
16
17
18
10a
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
10a
Note: Only press buttons with your fingers. Never use the weight hammer or other pointed objects to press buttons.
