Coats 775 - 775 - Manual Presetting Of Wheel Dimensions

10 • Important: Always read and follow the instructions.
775 - Manual Presetting Of Wheel
Dimensions

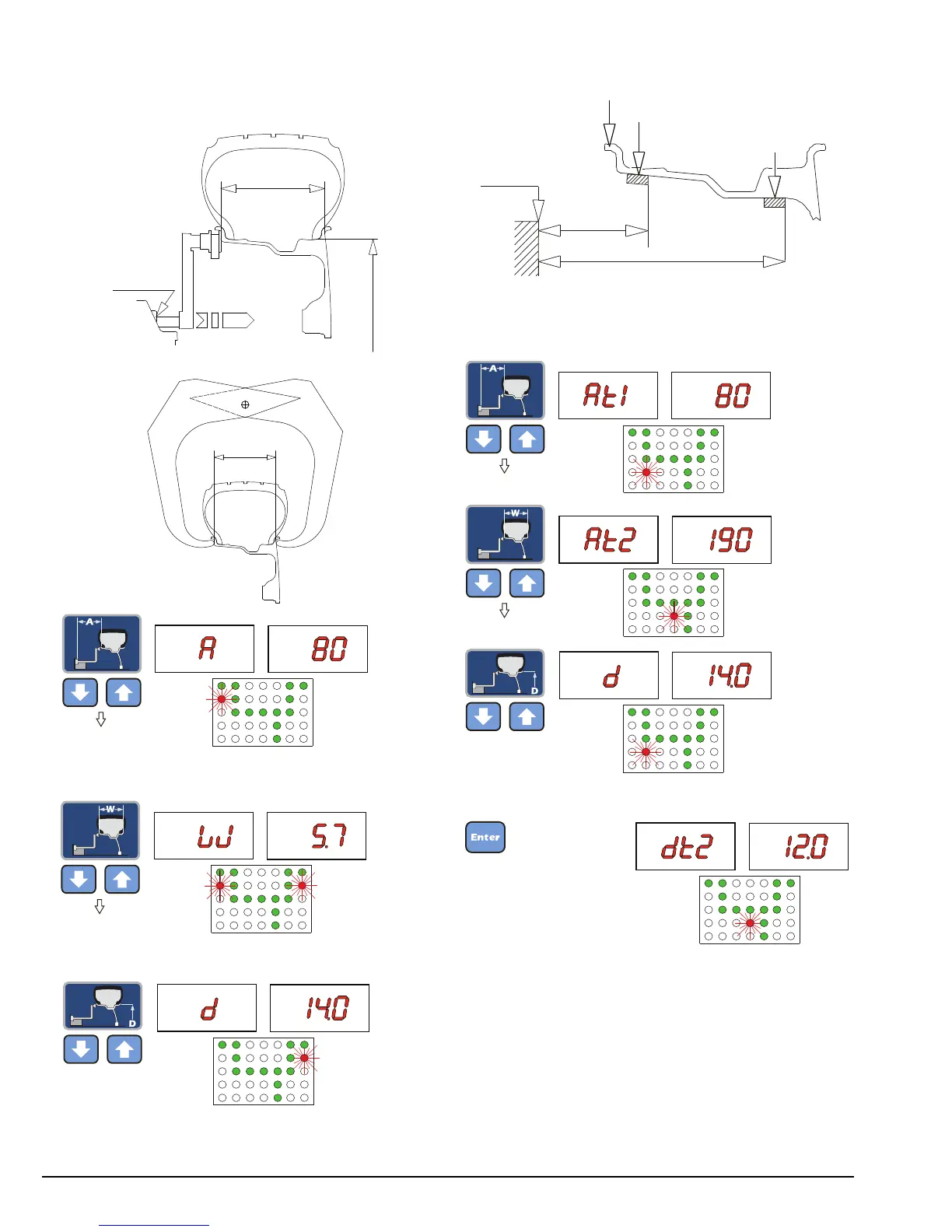

Standard Wheels c1-c2/STATIC/t1-t3/c1-t3
- Preset distance “A” for the inside of the wheel from
the machine.
- Set the rated width, which is generally indicated on
the rim, or measure width “W” using the calipers.
- Preset nominal diameter “d” indicated on the tire.
775 - t1-t2 Wheel
- Measure the dimensions as shown in the following
diagram.
Presetting:
nominal
Note: dt1 = d set + 1" when dt2 is not set, dt2 = d +
2" is automatic.
W
W
W
A
D
dt1
dt2
At1
At2
d
Hold down
3 seconds
