6.1.8 Find the accompanied harness and insert it into the corresponding holes of the products, and connect the wires
with the original car circuit showing below.
6.1.9 Fuel sensor diagram instructions: Refer to the fuel sensor installation instructions.

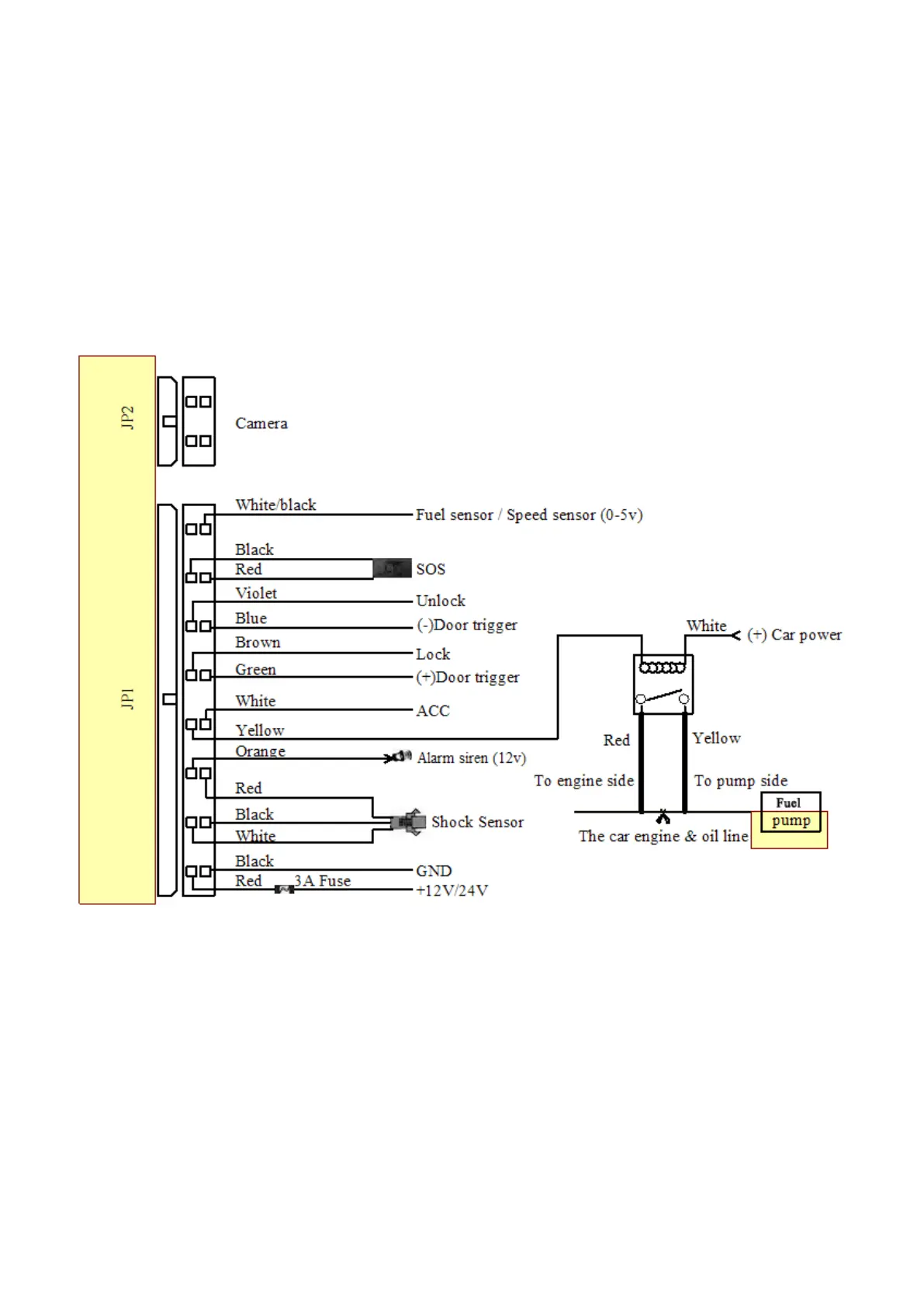

6.2. Installation wiring diagram
6.2.1. Unit installation wiring diagram
6.2.1.1.choose only one from vehicle Speed detection and fuel measurement.
6.2.1.2.For vehicle Speed detection, white with black wire directly connect to speed sensor signal wire of car gearbox.
6.2.1.3.For fuel measurement, white with black wire connect to fuel sensor signal wire.
