SAILOR XTR Ka system
98-175666-A
Chapter 1: Introduction
1-4

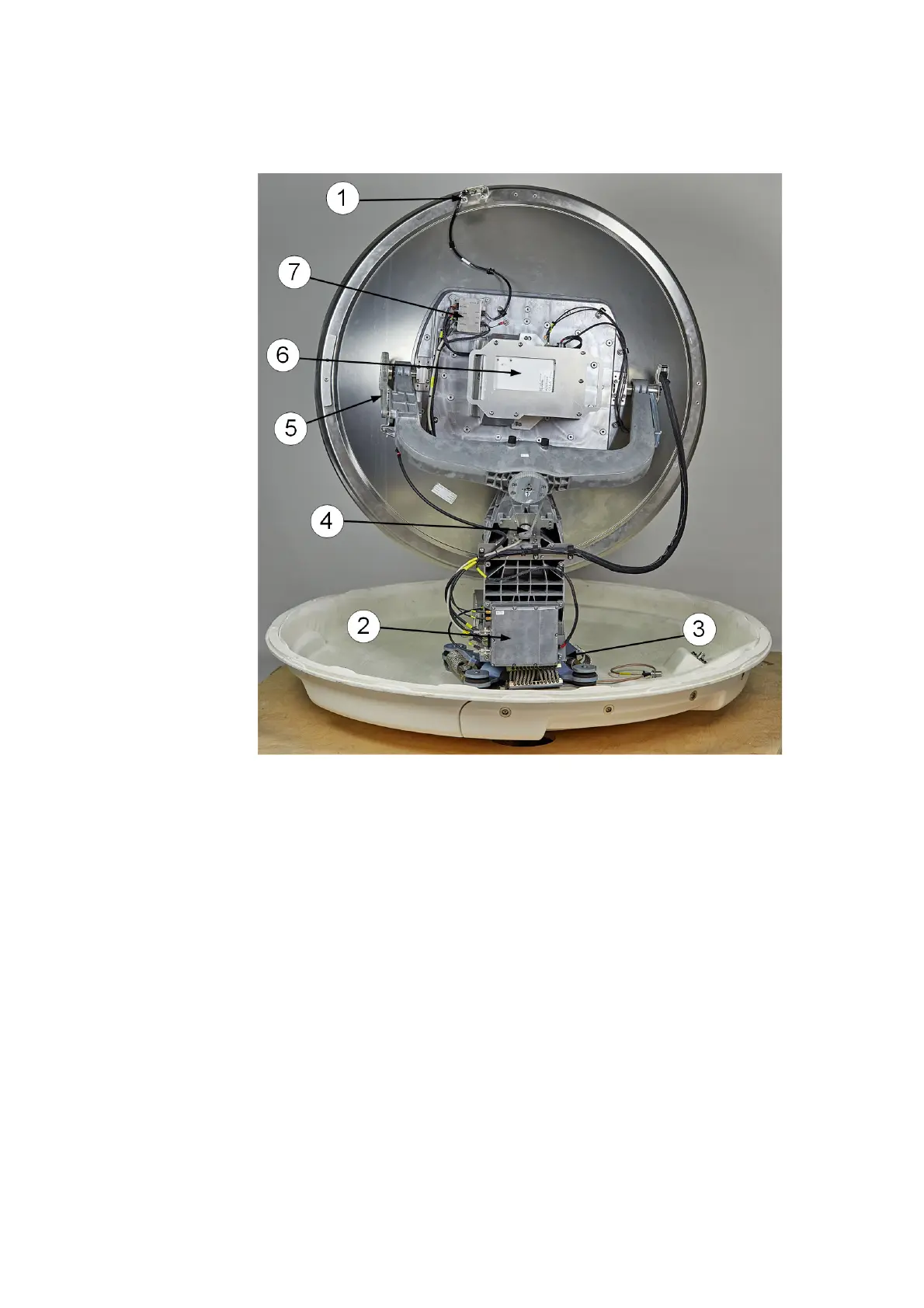

Modules in the ADU (100 cm)
1.
GNSS module (GPS, GLONASS, BEIDOU).
2.
XTR Antenna Control Module
(ACM).
3.
ADU power on/off.
4.
Cross elevation motor.
5.
Elevation motor.
6.
Ka-band transceiver.
7.
Iner
tial Sensor Module (ISM).
Figure 1-3:
SAILOR XT
R Ka (100 cm):
ADU modules 1/
2
14
16
