COBHAM EXPLORER 323 - To connect cables

Chapter 2: To install the system
98-169085-B To connect cables 11
To connect cables

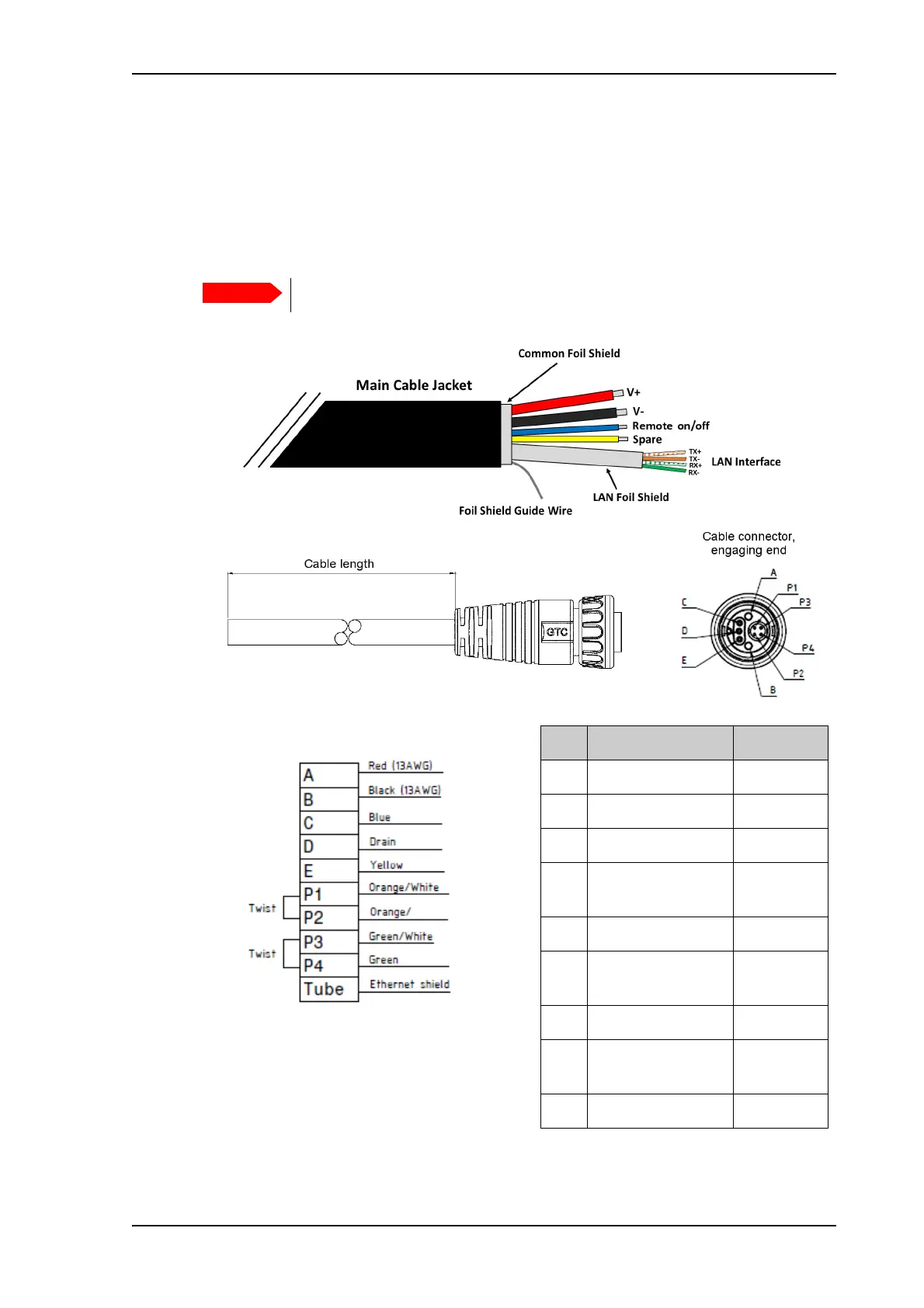

Included cable
A combined cable for connection to power supply and Ethernet equipment comes with the
system. If you need a longer cable, a 15 meter cable is also available.
Important
The 15 m cable requires 24 V operation!
Pin Function Wire color
AV+ Red
BV- Black
CRemote on/off Blue
D Foil shield guide
wire
Metal
E Spare Yellow
P1 TX+ Orange/
White
P2 TX- Orange
P3 RX+ Green/
White
P4 RX- Green
