COBHAM EXPLORER 540 - Built-In BGAN Antenna

Appendix A: Technical specifications
98-148232-B Built-in BGAN antenna 92
To insert the wires in X5 use a screwdriver (max. 2mm wide) to push each terminal open.
For configuration of the I/O pins, see Power save (Settings) on page 71

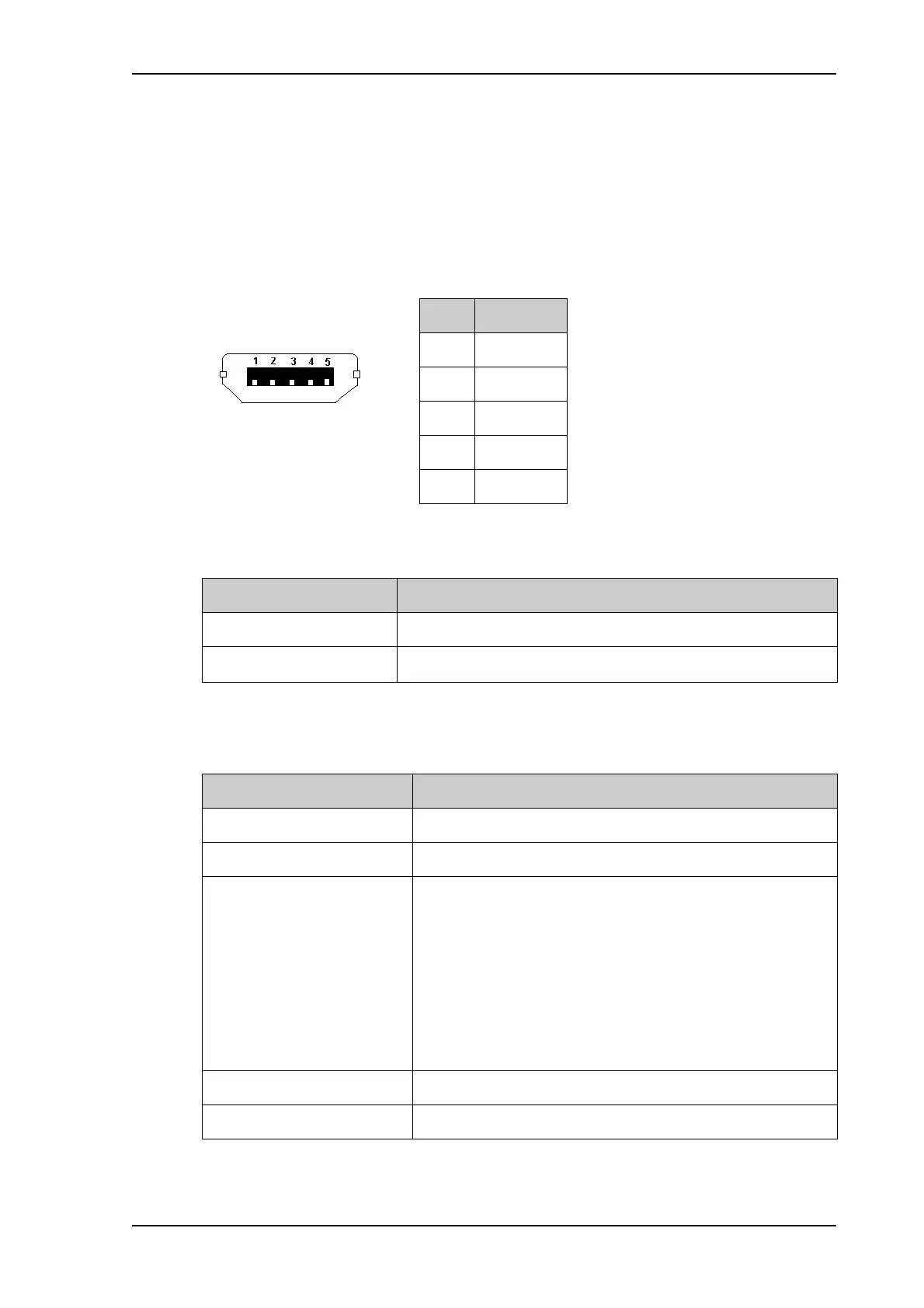

USB (Host) interface (X6, Future use)
Connector pin-out
Specifications
Built-in BGAN antenna
Pin Function
1+5V
2Dm
3Dp
4ID
5GND
USB Micro B
Item Specification
Version USB v2.0 Host
Connector type
Type Micro B
Item Specification
Type Directional patch array, manually adjustable
Polarization RHCP, Right-hand circular polarization for both tx and rx
Frequencies
Inmarsat I-4
Transmit
Receive
Inmarsat Alphasat (EMEA)
Transmit
Receive
GNSS
1626,5 MHz - 1660,5 MHz
1525 MHz - 1559 MHz
Extended L-band (XL)
a
:
1626,5 MHz - 1660,5 MHz and 1668 MHz - 1675 MHz
1518 MHz - 1559 MHz
GPS, GLONASS, Beidou
a. Only available within Alphasat coverage (EMEA). See BGAN services on page 5.
EIRP Nominal: 15.1 dBW ±1dB, Class 2
Gain 11.25 dBi
