Chapter 2: Installation
8 Installing the SAILOR 6080 Power Supply
2.2.3 To install the SAILOR 6080 Power Supply
To install the SAILOR 6080 Power Supply, do as follows:
1. If you are using the cable-relief bracket, first fasten the cable-relief

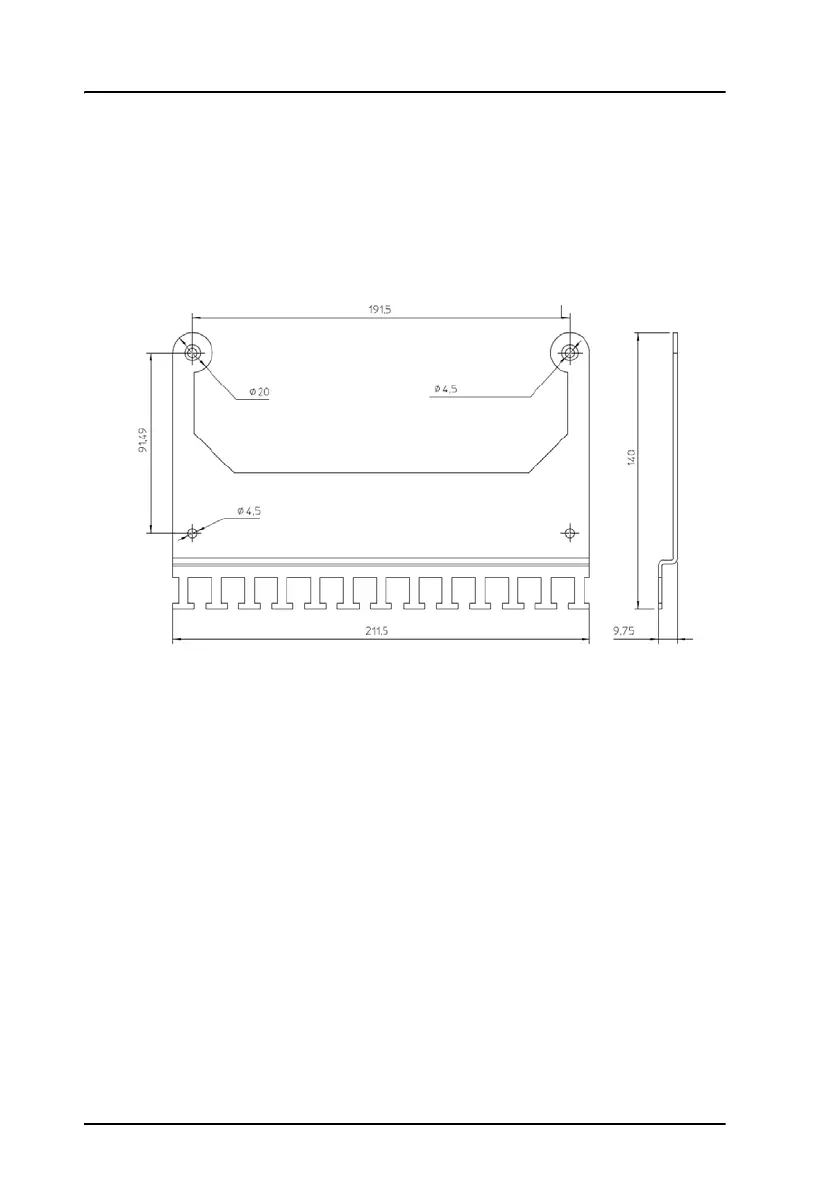

bracket to the wall with four screws according to the following drawing.
2. Fasten the SAILOR 6080 to the wall with 4 mounting bolts, M6X55 mm,
DIN912 (included the delivery). For dimensions, see the drawing in the
previous page.
If you are using the cable-relief bracket, place the SAILOR 6080 over the
cable-relief bracket and align the connector row of the SAILOR 6080
with the cable-relief bracket.
An optional, larger Wall-mount tray, heavy duty, is available for the
SAILOR 6080. For further details see Wall-mount tray (option) on page 25.
