Chapter 2: Installation
Installing 2, 3 or 4 SAILOR 6080 units 17
2222
Installation
2.3.1 Wiring for daisy-chaining

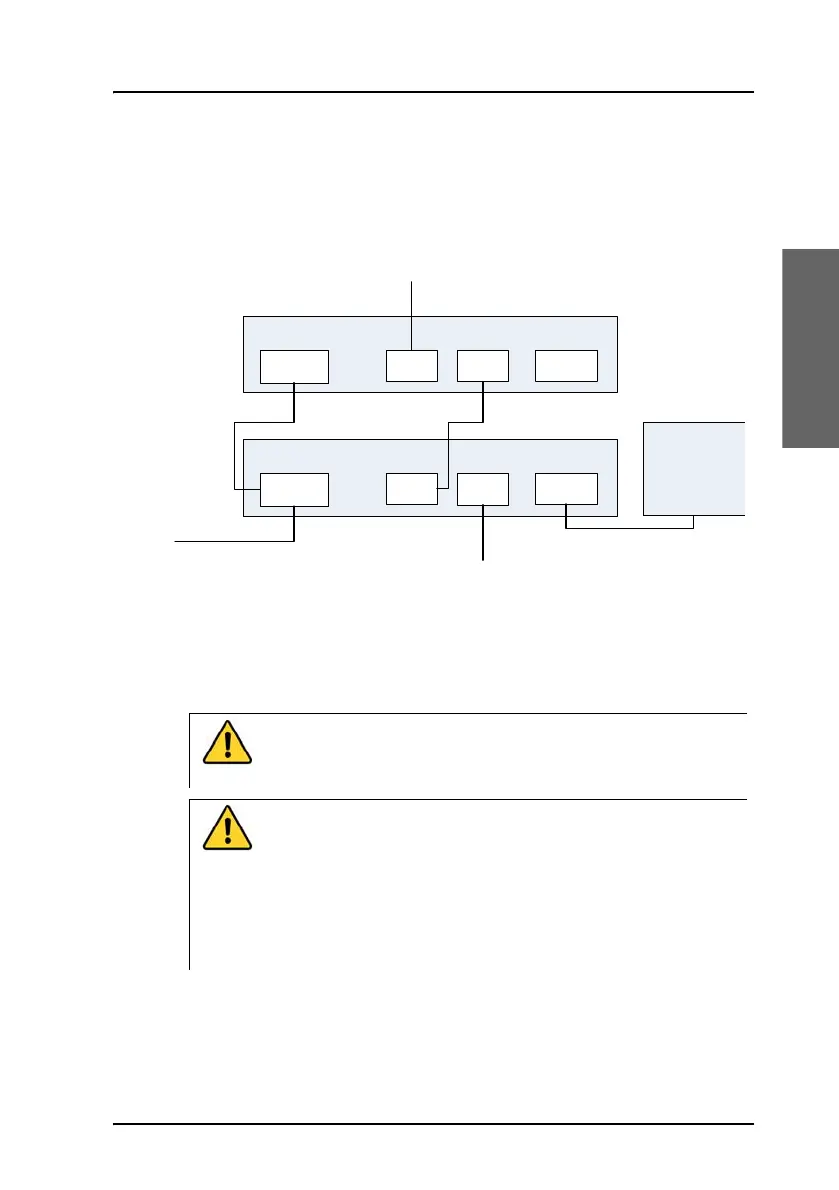

The following drawing shows how to wire the SAILOR 6080 Power Supply
units when daisy-chaining two units.
To daisy-chain two SAILOR 6080 Power Supply units proceed as follows:
1. Connect Mains AC of unit 1 to unit 2.
2. Connect DC1 of unit 1 to DC2 of unit 2.
Caution! Use different colors for plus and minus and make
sure you connect to the right polarity.
Caution! If you need more than 2x300 W or 20 A you need
to follow special guidelines when connecting the
required SAILOR 6080 Power Supply units. Refer
to Wiring 3 or more SAILOR 6080 units on
page 27 to see how to connect the SAILOR 6080
Power Supply units to meet these requirements.
(PHUJHQF\
EDWWHU\
77$
0DLQV$&
'&
'&
%$77(5<
77$
0DLQV$&
'&
'&
%$77(5<
&RPELQHG
'&2XW
$&3RZHU
&RPELQHG
'&2XW
