Chapter 2: Installation
16 Installing 2, 3 or 4 SAILOR 6080 units

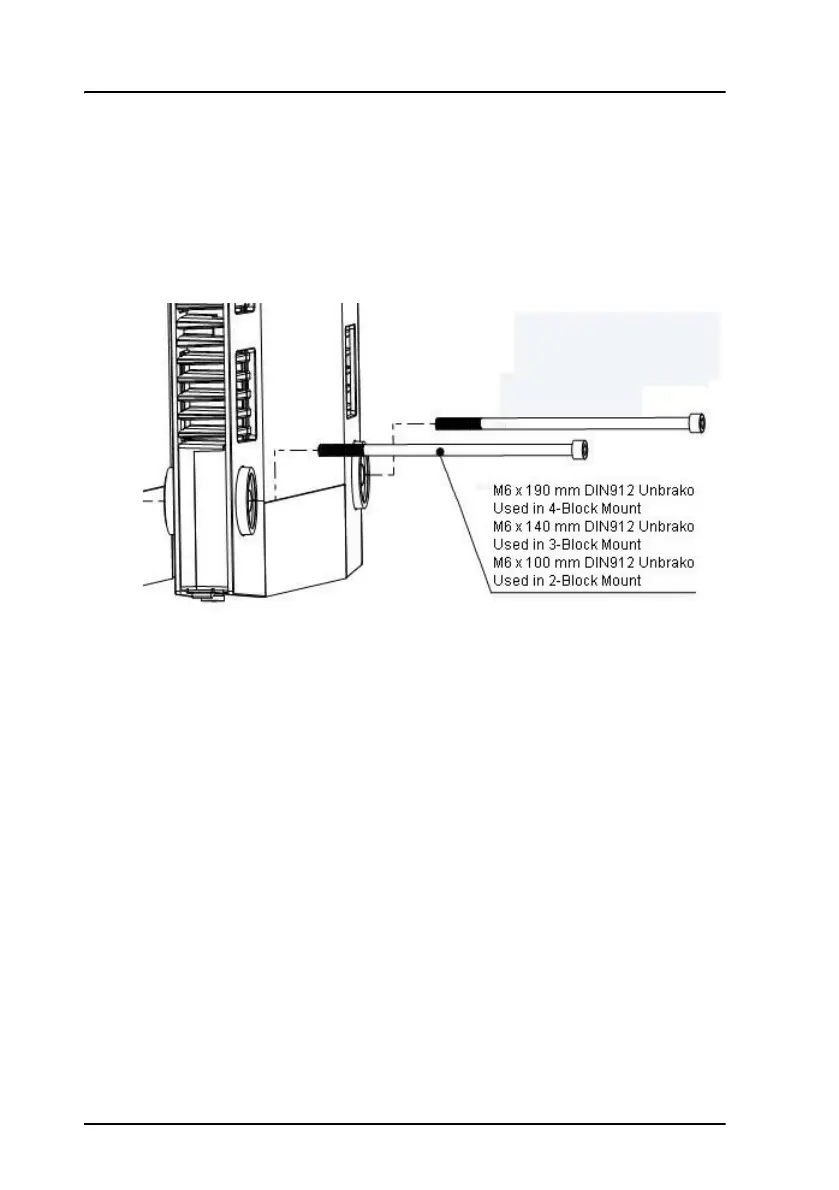

The following drawing shows the specifications of the mounting bolts
needed when installing two, three or four units on top of each other.
• 2-block mount: 4 x M6X100 mm DIN912, A4
• 3-block mount: 4 x M6X140 mm DIN912, A4
• 4-block mount: 4 x M6x190 mm DIN 912, A4
