Chapter 2: Installation
Installing the SAILOR 6080 Power Supply 11
2222

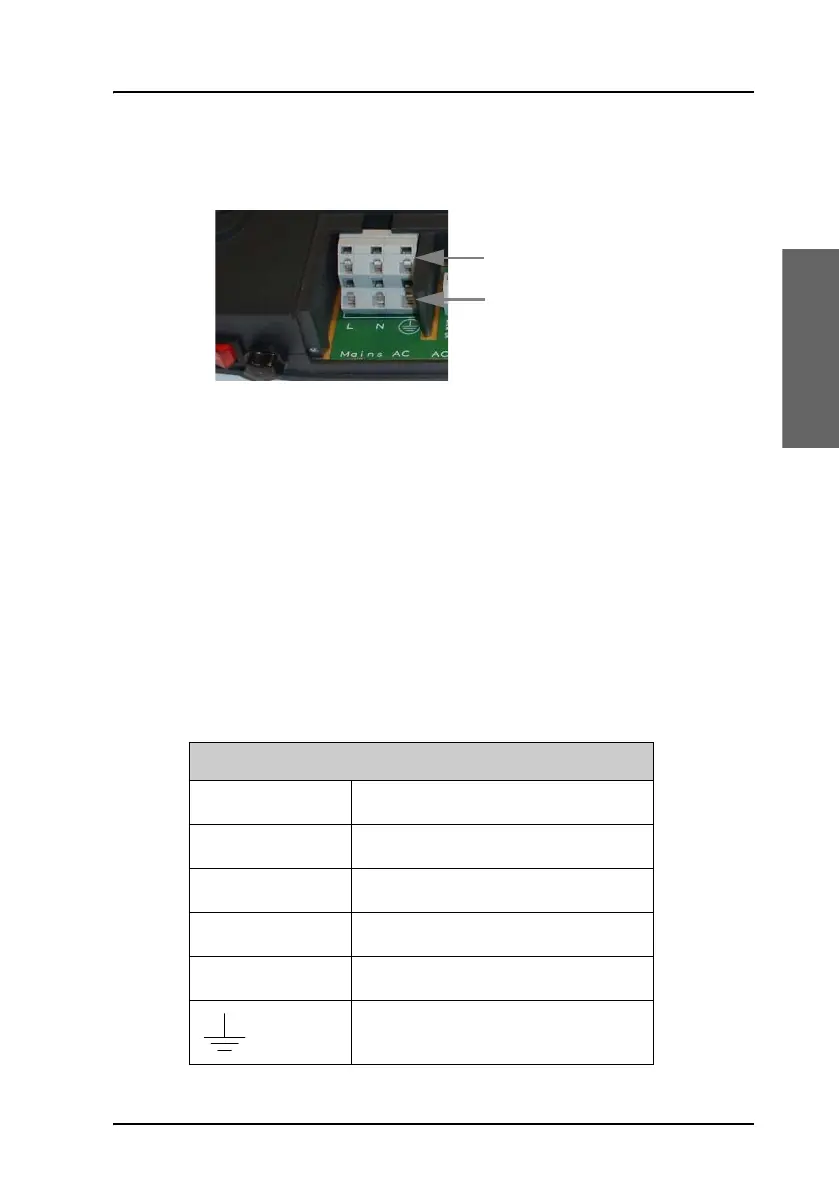

This connector is used when adding a SAILOR 6080 Power Supply (dual row
spring loaded terminal).
3. In order to be able to daisy-chain SAILOR 6080 Power Supply units the
Mains AC connector has two terminals:
• Use one terminal for the incoming mains power.
• Use the other terminal for the mains power going to the next
SAILOR 6080 Power Supply.
2.2.6.2 DC output
The SAILOR 6080 Power Supply supplies a DC output. To connect the DC
output DC1 do as follows:
1. Connect the DC cable between the connector marked DC1 and the
equipment that must be powered.
AC input
To connect to additional
AC/DC Power Supply
DC 1
Connector type Spring-loaded terminal
Wire cross section Up to 6 mm
2
Maximum load 20 A
+DC out, plus
-DC out, minus
GND
