Chapter 2: Operation
Operation – SAILOR 6004 Control Panel 7
22222
Operation

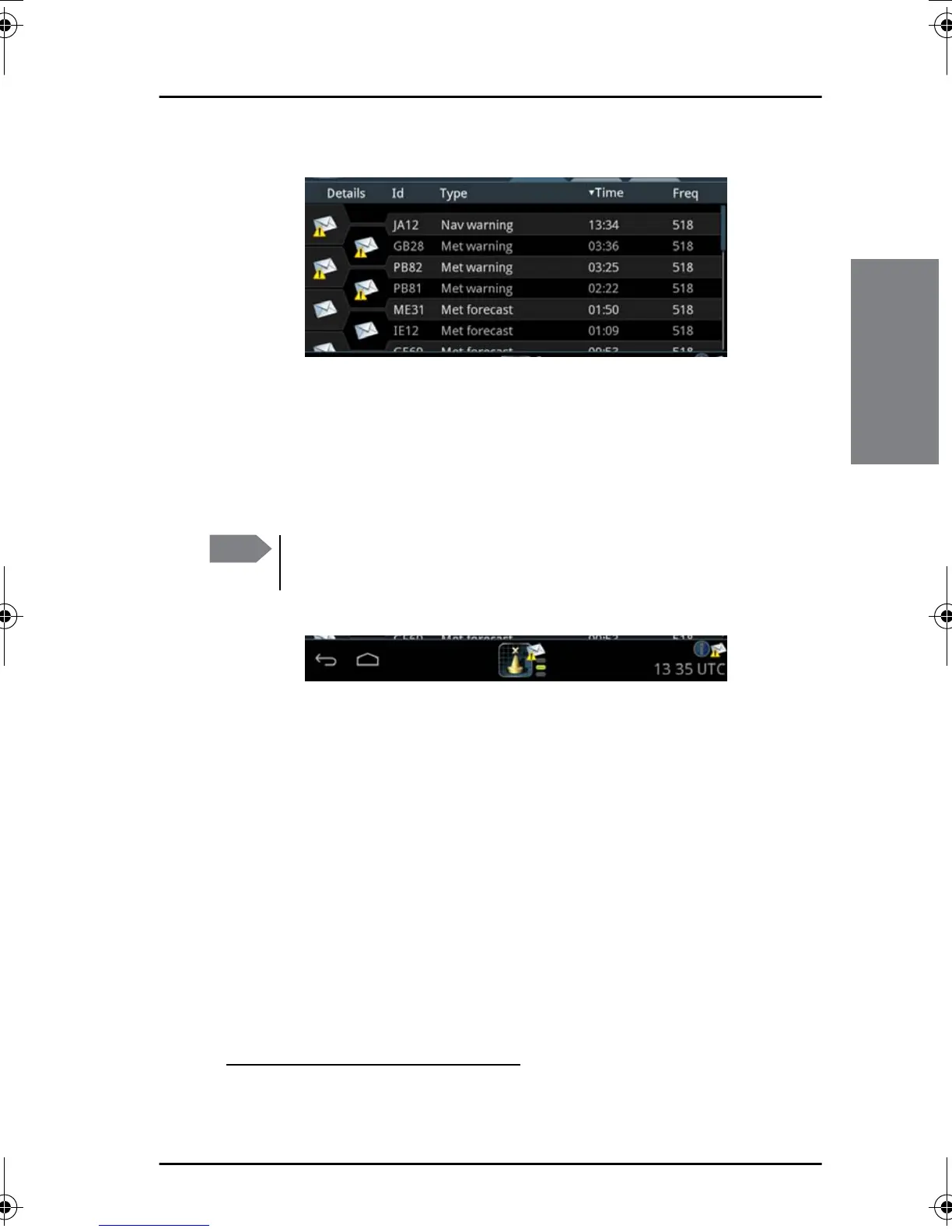

2. Navtex app-specific area.
Each row represents a Navtex message.
• Closed envelope: The message has not been read and is newer than
24 hours.
• Open envelope: The message has been read or is older than 24 hours.
• Yellow triangle: Nav or Met warning
• Red triangle: SAR message
3. Bottom bar
• Icon for back function or for collapsing the on-screen keyboard.
• Icon for going to the start screen.
• Icon for the installed app
1
, including status information
2
.
• Icons for new messages (closed envelope). After 24 hours messages
are automatically set to not new.
– Yellow triangle: Nav or Met warning.
– Red triangle: Unread SAR message.
• 3 indicators, from the top: 4209.5 kHz (local), 518 kHz (international,
mandatory), 490 kHz (local). Green while receiving a message.
• Icons for alarms and for software update:
– Flashing bright red triangle: Unacknowledged alarm(s)
– Faded red triangle: Acknowledged alarm(s)
– Information icon: New Navtex software is available
• Time, e.g. UTC time received from the Navtex receiver via GPS input.
Note
Only messages filtered for Display are shown. For more
details see Filters for stations and message types on page 10.
1. Not visible in some cases, if configured not to be shown or if this is the third
app on this SAILOR 6004 Control Panel.
2. The letter A is shown if the filter for Display is set to Automatic Mode.
98-137261.book Page 7 Wednesday, February 19, 2014 2:06 PM
