Operation
Operation
31
External Speaker
External Speaker
The external speaker jack is used for remote
receiver monitoring.
Note
Theexternalspeakershould
have8-ohmimpedanceand
beratedtohandleatleast
4.0watts.Whentheexternal
speakerispluggedin,theinter-
nalspeakerisautomatically
disconnected.
Note
Cobraexternalspeakersare
ratedat10watts.
Note
ExternalS-Meterindicates
receive/transmitsignal
strengthonly.

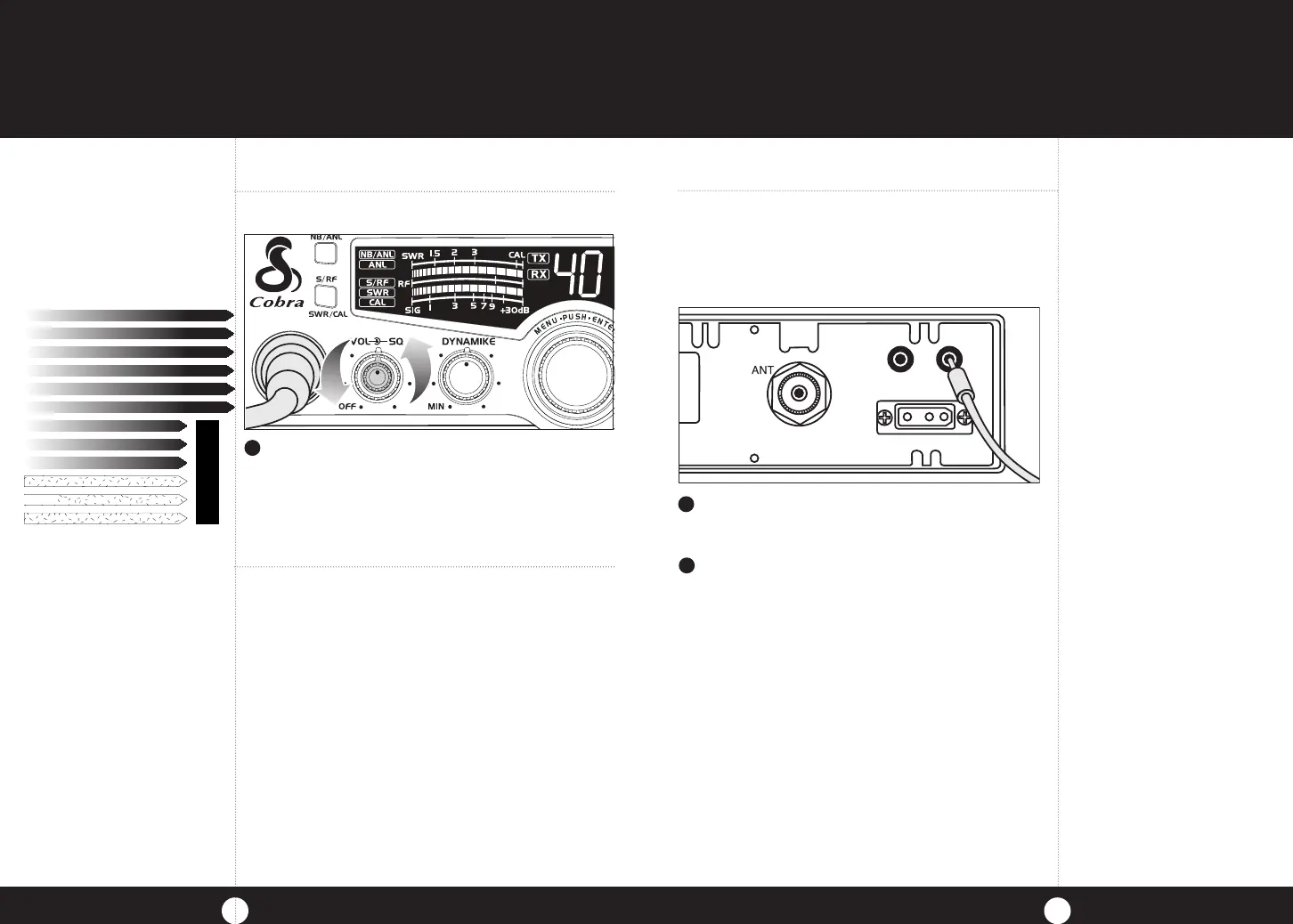

Connect an external speaker to the external
speaker jack on the rear panel.
Connect external S-Meter to jack for use of
external S-Meter (not supplied).
1
30
To achieve the Desired Squelch Setting (DSS),
turn the Squelch control anticlockwise until
you hear noise. Now turn the control clock-
wise just until the noise stops. This is the DSS
setting.
3
NOISE
WEAK SIGNALS
MEDIUM SIGNALS
STRONG SIGNALS
GATE
Gate set to Desired
Squelch Setting (DSS)
Setting Squelch
Continued
S-MTR EXT.SP.
+ POWER –
2
