Mounting and Connection
Hold the radio with the mounting bracket in
the exact desired location. If there is no inter-
ference, remove the bracket and use it as a
template to mark the location for the mount-
ing screws.
Location
Plan location of transceiver and microphone
bracket before starting the installation.
Select a location that is convenient for operation,
yet does not interfere with the driver or passenger.
The transceiver is usually mounted to the under-
side of the dash with the microphone bracket
beside it.
Note
Thetransceiverisheldinthe
universalmountingbracketby
twothumbscrewswhichallow
foradjustmentataconvenient
angle.
Thebracketincludestwoself-
tappingscrewsandstarwash-
ers.Themountingmustbe
mechanicallystrong,conve-
nientlylocated.
continued

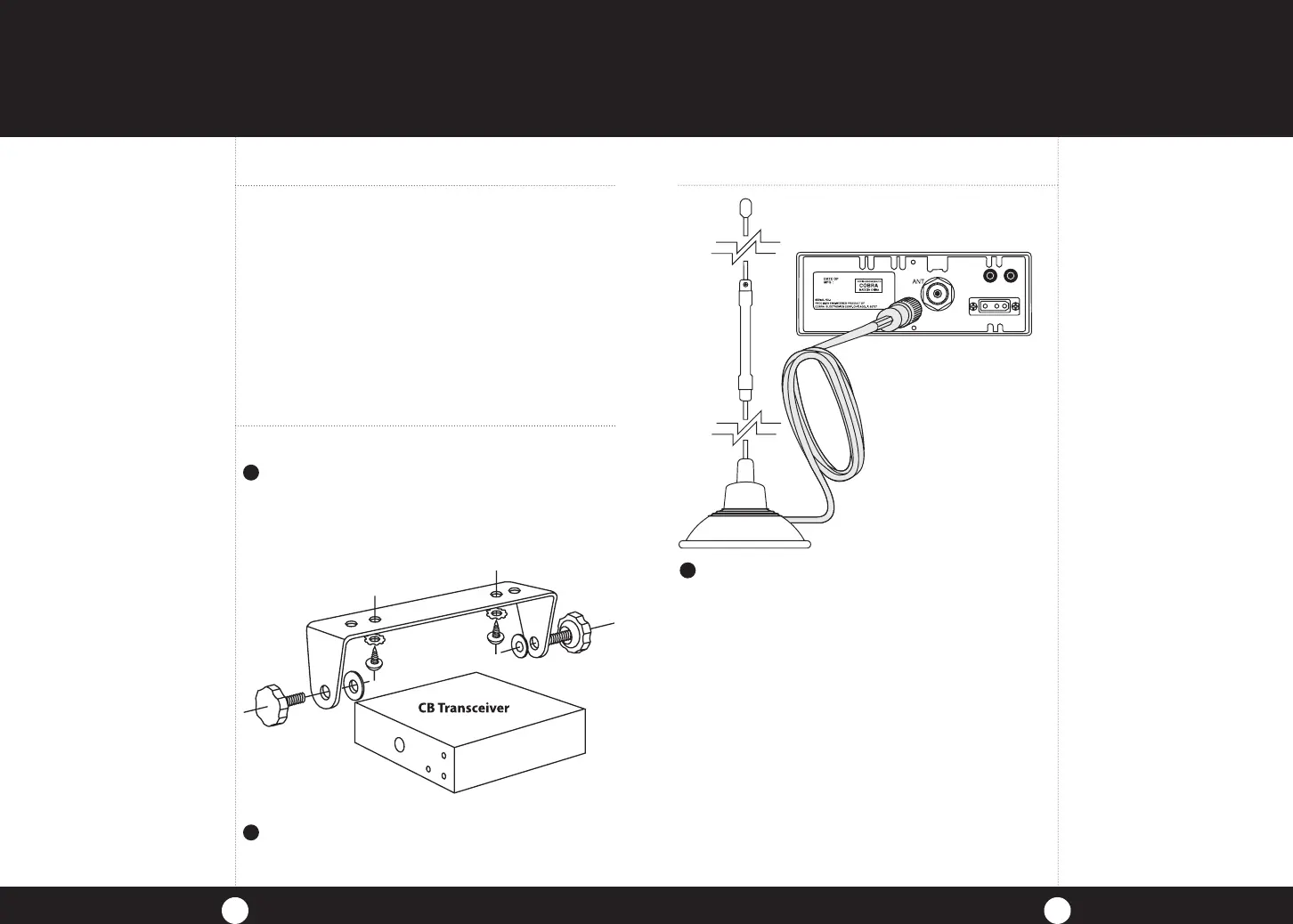

Drill the holes and secure the bracket.
2
1
Connect the antenna cable plug to the recep-
tacle marked “ANT” on the back of the unit.
3
S-MTR EXT.SP.
+ POWER –
