Cobra 29 LX EU - Set-Up Options; Home and Office Base Station Setup

Temporary Mobile Set-Up
Home And Office Set-Up
3332
Base Station
Operation
(From 230V AC
House Current)
Base Station Operation
(From 230V AC House Current)
To operate your transceiver from home or office
you will need a 13.2 volt DC Power Pack rated at
a minimum of 2 amps, and a properly installed
base station antenna.
Warning!
Donotattempttooperatethis
transceiverbyconnectingit
directlyto230VAC.
1

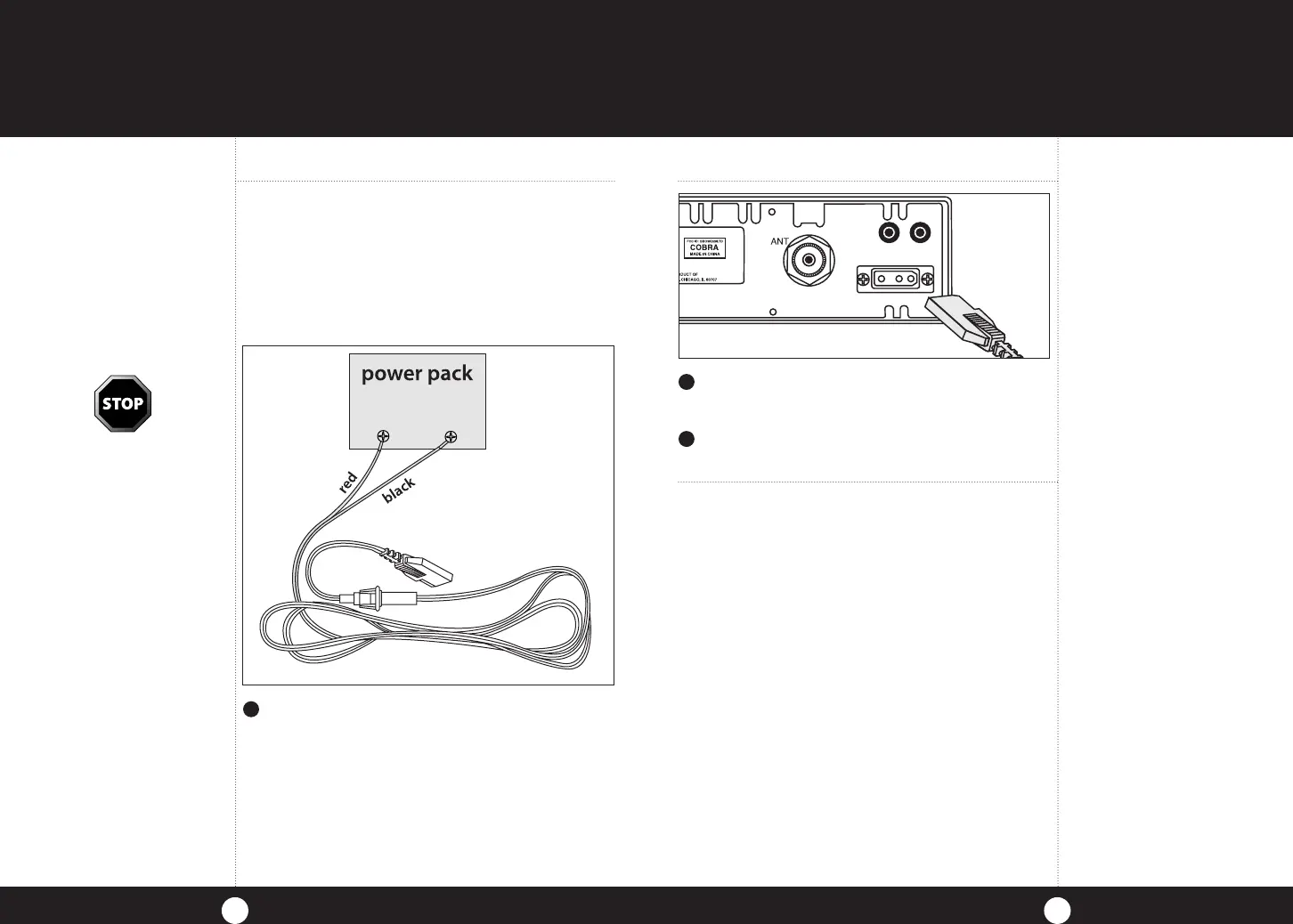

Connect properly installed and matched base
station antenna.
Simply connect the red (+) and black (-)
leads of the transceiver to the corresponding
terminals of the power pack.
Plug power cable into back of unit marked
“Power”. Be sure to observe polarity markings.
2
3
S-MTR EXT.SP.
+ POWER –
+—
