10
RED - TK DN
GREEN / BLK ( LEVEL - 1 )
RED ( ARROW LEFT )
WHITE / BLK ( LEVEL - 2 )
RED / BLK ( LEVEL - 3 )
BLUE ( DIMMING )
GREEN ( CRUISE )
ORANGE / BLK ( TAKE DOWN )
BLACK ( TAKE DOWN FLASH )
WHITE ( ARROW FLASH )
BLACK / RED - PATTERN SELECT
ATTACH BLACK / RED
WIRE TO GROUND
AFTER PROGRAMMING
IS COMPLETE

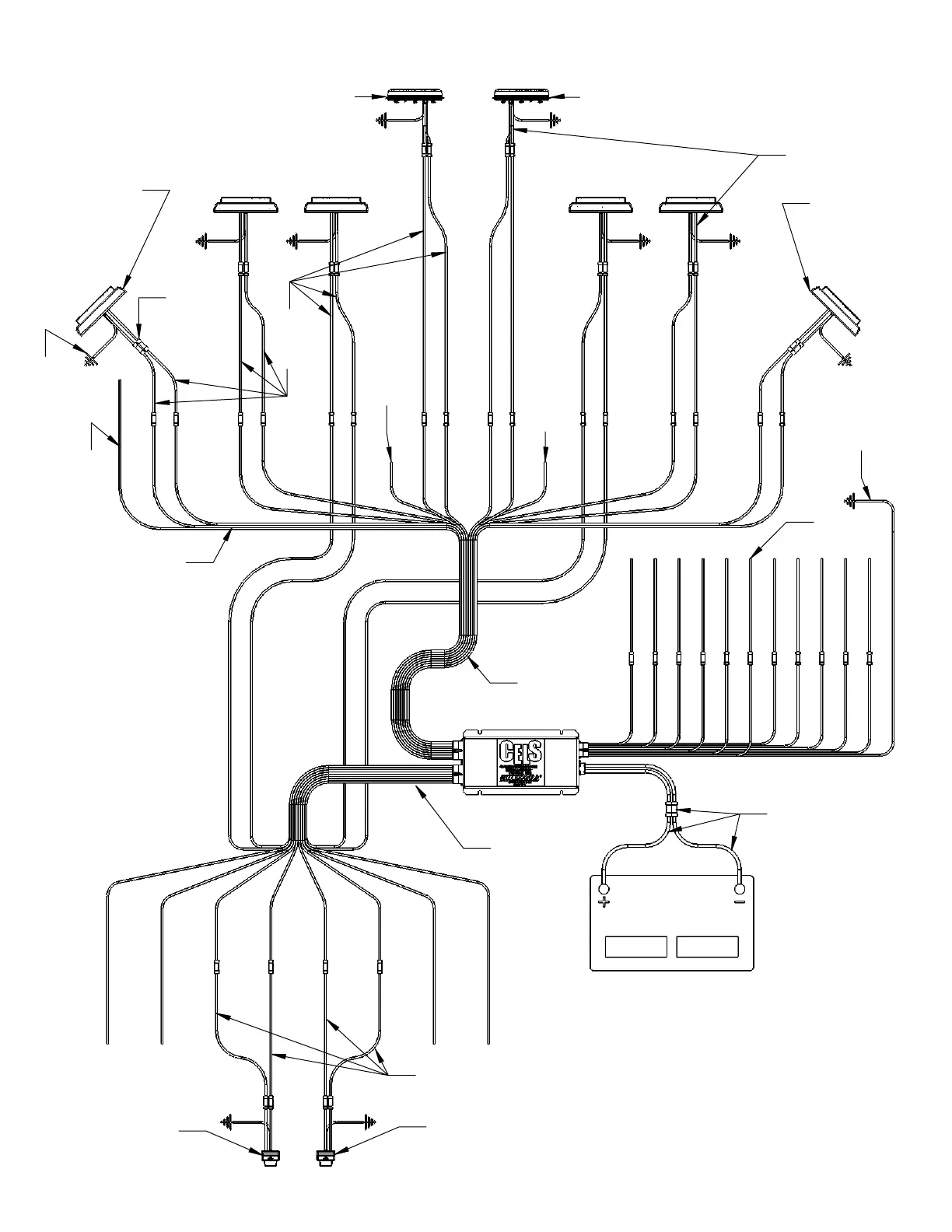

CELS WIRING DIAGRAM - PACKAGE - 5
PINK
BLUE - FLASH
ORANGE ( ARROW RIGHT )
DRIVER
SIDE VIEW
XT4 MIRROR
LIGHT
PASSENGER
SIDE VIEW
XT4 MIRROR
LIGHT
PAR36 LT HD
DRIVER SIDE
PAR36 LT HD
PASSENGER SIDE
CONTROL INPUT
WIRES
GREEN / WHT ( REAR CUT - OFF )
VIOLET
GRAY - TK DN
YELLOW - FLASH
CUSTOMER
SUPPLIED
22 AMP
BUTT SPLICE
TYPICAL
CUSTOMER
SUPPLIED
WIRES TYP
LT BLUE
BLACK WIRE
TO GROUND
TYPICAL
FRONT
OUTPUT
WIRES
REAR
OUTPUT
WIRES
GRAY / BLK - TK DN
YELLOW / BLK - FLASH
BLUE / BLK - FLASH
ORANGE / BLK - TK DN
ORANGE - TK DN
NOTE: THE PAR36 & THE XT4
MIRROR LIGHT OUTPUTS ARE TIED
(SYNCRONIZED) TO LIGHT
TOGETHER SIMULTANEOUSLY!
THE OUTPUT WIRES THAT ARE
SYNCRONIZED ARE AS FOLLOWS!
BLUE WIRE OUTPUT IS SYNCD
WITH THE YELLOW
GRAY WIRE OUTPUT IS SYNCD
WITH THE ORANGE / BLK
ORANGE WIRE OUTPUT IS SYNCD
WITH THE GRAY / BLK
BLUE / BLK WIRE OUTPUT IS SYNCD
WITH THE YELLOW / BLK
RED / WHT - TK DN
YELLOW
BLUE
GRAY
WHITE
BLUE
YELLOW
WHITE
GRAY
GREEN
PINK
GREEN / WHT
GREEN / WHT
DO NOT CONNECT
PURPLE - DO NOT CONNECT
ORANGE - DO NOT CONNECT
RED / WHT - DO NOT CONNECT
BROWN / WHT - DO NOT CONNECT
TAN - DO NOT CONNECT
XT4 LIGHT
HEAD
XT4 LIGHT
HEAD
XT4 LIGHT
HEAD
XT4 LIGHT
HEAD
XT4 LIGHT
HEAD
XT4 LIGHT
HEAD
BROWN / WHITE
TO STEADY BURN
RED LIGHT HEAD
IF REQUIRED
POWER & GROUND
WIRES WILL REQUIRE
CUSTOMER SUPPLIED
12 GAGE WIRE, 12 GAGE
BUTT SPLICES, & 20
AMP FUSE
TYP SEE PAGE 5 CHART
FOR WIRE COLORS
CUSTOMER
SUPPLIED
WIRES TYP
CUSTOMER
SUPPLIED
WIRE TYP
