Code 3 CELS - Wiring Diagram Package 6

11
CITADEL
ORANGE 6 ORANGE
WHITE 8 WHITE
BLUE 7 BLUE
GREEN / WHT 10 GREEN / WHT
RED / WHT 11 RED / WHT
PINK 9 PINK
GREEN / BLK ( LEVEL - 1 )
RED ( ARROW LEFT )
WHITE / BLK ( LEVEL - 2 )
RED / BLK ( LEVEL - 3 )
BLUE ( DIMMING )
GREEN ( CRUISE )
UNUSED
UNUSED
WHITE ( ARROW FLASH )
BLACK / RED - PATTERN SELECT
ATTACH BLACK / RED
WIRE TO GROUND
AFTER PROGRAMMING
IS COMPLETE

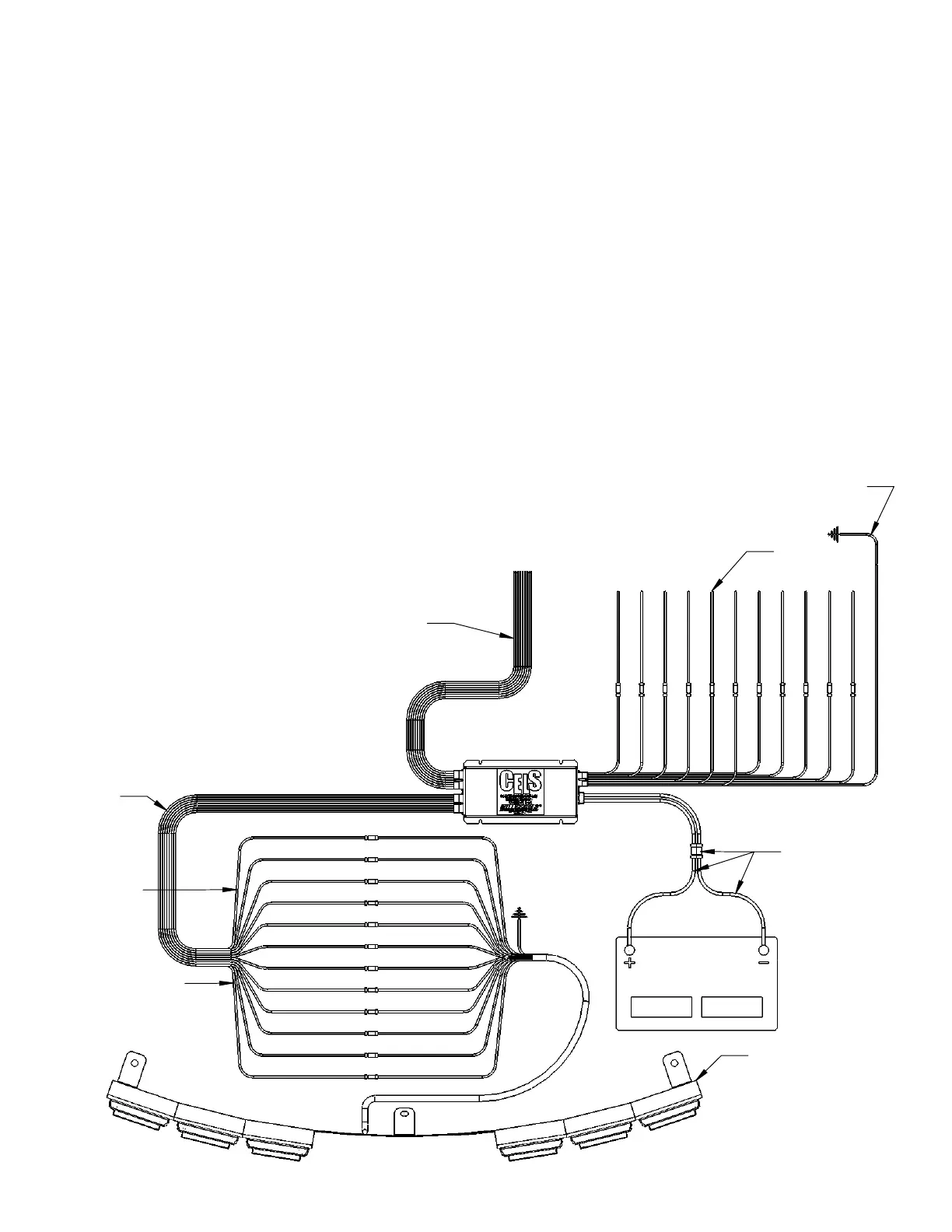

CELS WIRING DIAGRAM - PACKAGE - 6
ORANGE ( ARROW RIGHT )
CONTROL INPUT
WIRES
GREEN / WHT (UNUSED )
YELLOW 1 YELLOW
GRAY 2 GRAY
GREEN 3 GREEN
VIOLET 4 VIOLET
TAN 5 TAN
BROWN 12 BROWN
CUSTOMER
SUPPLIED
WIRE TYP
POWER & GROUND
WIRES WILL REQUIRE
CUSTOMER SUPPLIED
12 GAGE WIRE, 12 GAGE
BUTT SPLICES, & 20
AMP FUSE
FRONT
OUTPUT
WIRES
NOT USED
REAR
OUTPUT
WIRES
NOTE: WIRES 7 THRU 12
ARE FOR DUAL COLOR CITADEL
ONLY! DO NOT CONNECT THESE
WIRES IF YOU HAVE A SINGLE
COLOR CITADEL
FORD PI SUV CITADEL
SHOWN. WIRING IS THE
SAME FOR THE TAHOE
CITADEL
WIRES 1 THRU 6
ARE ARROWSTIK
DUAL & SINGLE
COLOR LIGHT
HEAD WIRES
