8 Quick Installation Guide
page 14 of 45 GU-139-Z1
You are now ready to program your IA4100.
If you have a strobe light, run the yellow wires into N.O. output 1.
The green wire will run to the grounding lug.
Run the gray-and-black male connector into the female connector on the power supply
inside the unit.
Plug in the battery wires. They are left unplugged for shipping to prevent running down the
battery.
IA4100
Administrator Guide
Code Blue
• 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com

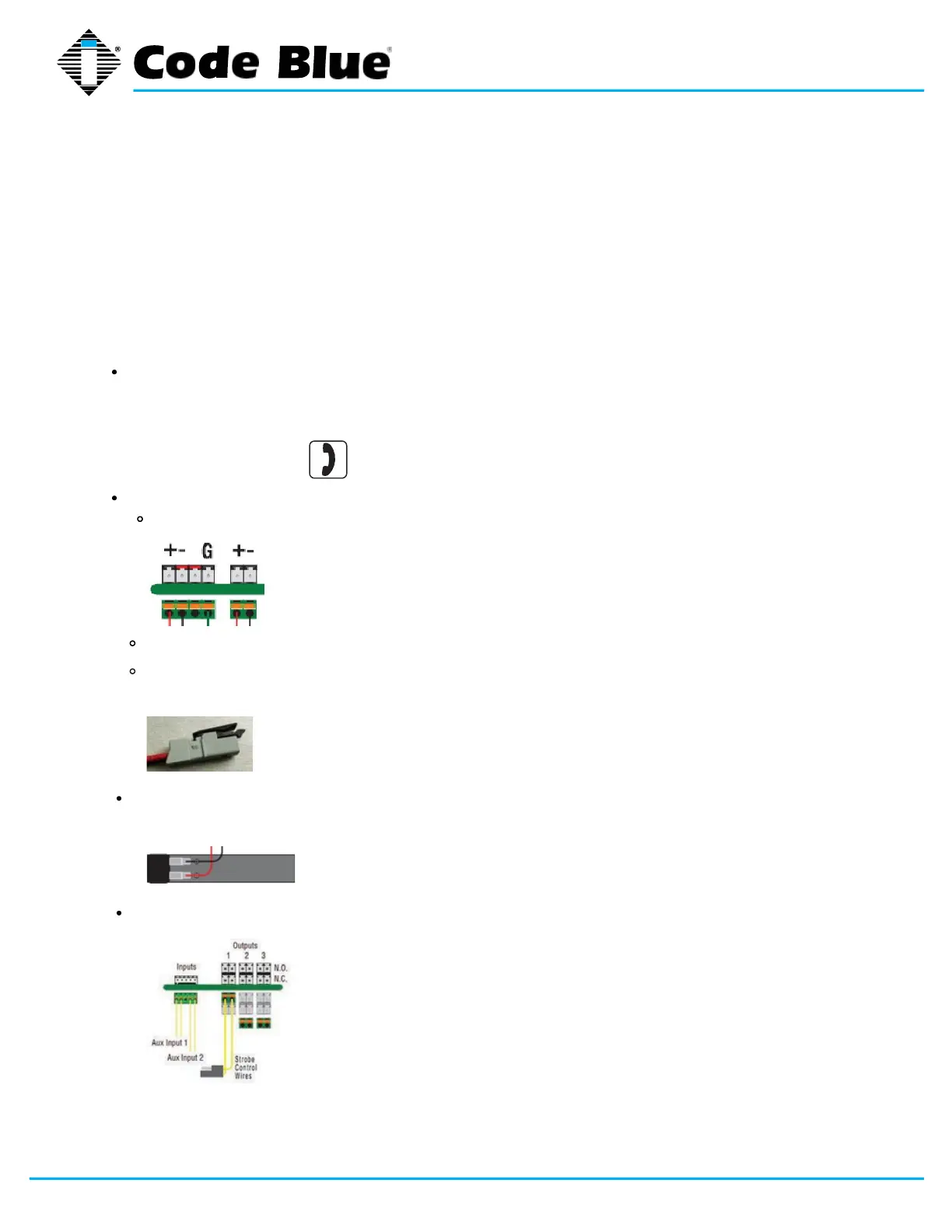

The IA4100 analog speakerphone is designed to fit into any existing or new Code Blue enclosure. It
is a direct replacement for the following InterAct legacy series models: IA2000, IA3000, IA3100.
Additionally, Code Blue offers custom faceplate sizes that allow the IA4100 to be placed in many
different enclosure types.
Code Blue provides the following items with each IA4100: six security screws, one security bit,
7-foot phone line, power harness, surge suppressor and ground wire.
Using the provided Velcro, mount the surge suppressor to the back of the enclosure near
the grounding lug. Connect the green ground wire to the grounding lug.
Insert the phone wire first into the surge suppressor and then to the RJ11 on the IA4100
marked with this symbol:
The power harness will have three connections:
A 4-pin power connector will connect to the 4-pin opening on the IA4100.
