9 Installation
page 15 of 45 GU-139-Z1
IA4100
Administrator Guide
Code Blue
• 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com
The IA4100 speakerphone is capable of being connected to 12-24 Volts DC or 12-24 Volts AC power
sources. Additionally, the IA4100 may also be configured with a 12 Volts DC battery backup system
that monitors and reports on the battery voltage for ensured up time.
The IA4100 has one FXO port for connectivity to POTS/1MB/Station Ports from a Local Exchange
Carrier, PBX system, etc.
The IA4100 has three normally open and three normally closed auxiliary output contacts for con-
necting devices, such as the LED beacon/strobe, camera preset activation inputs, third party
controllers, etc. There are also two normally open auxiliary input contact closures for connecting
devices, such as door contacts, relays, etc. which can be programmed to perform various functions of
the phone.
The IA4100 speakerphone has been designed to be mounted in any Code Blue enclosure. Custom
faceplates are available for mounting in other product enclosures. Contact your local dealer for
additional information and availability of custom options.

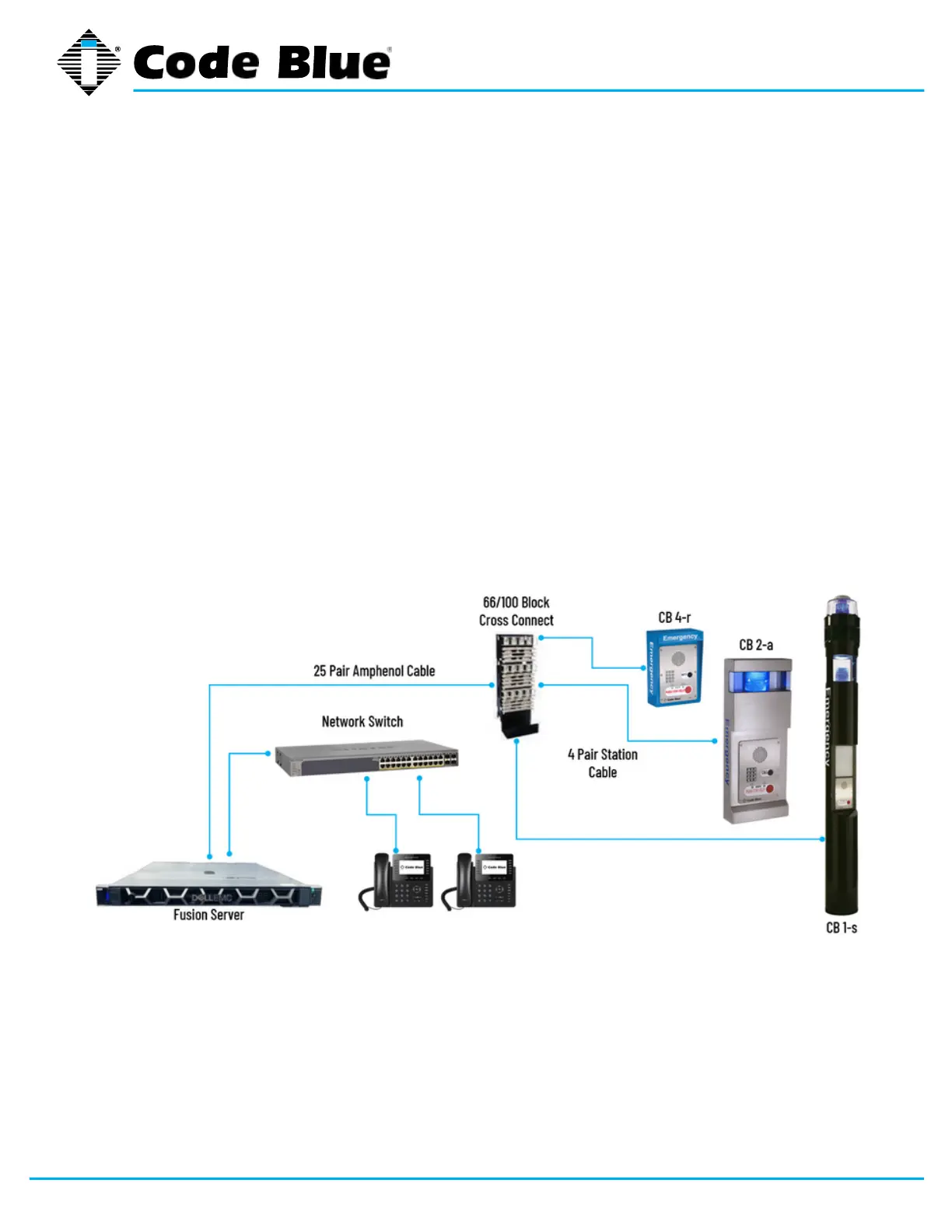

Typical IA4100 Speakerphone Uses
