11.0 - CR1000 Hole Mounting Pattern

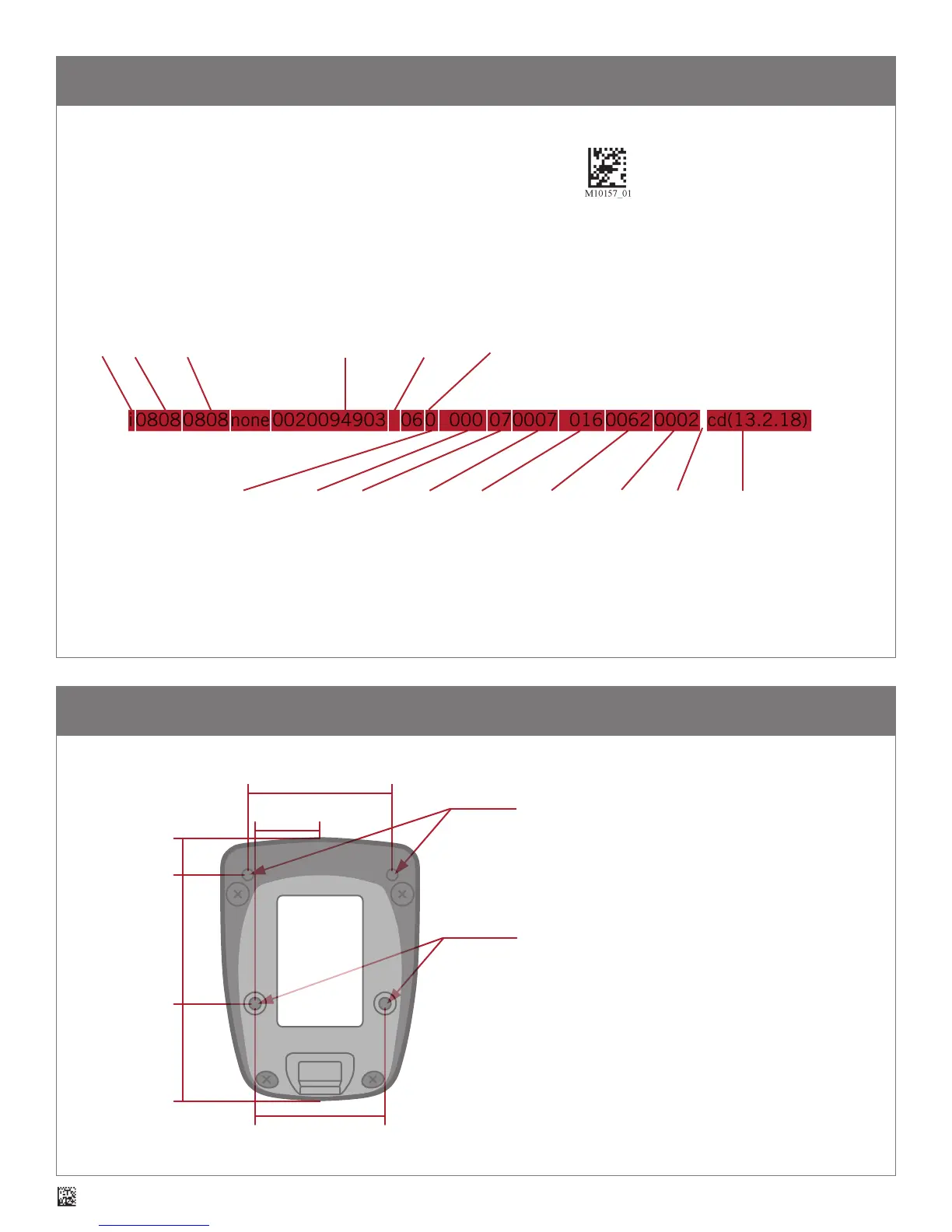

10.0 - Reader ID and Firmware Version
A text string indicating the rmware version and CR1000 ID number will be displayed.
example: Xap/i06760456none0020094903A06000000700070016006200 02cd(13.2.18) (see below):
To nd out the Reader ID and Firmware version, open a text editor program
(i.e., Notepad, Microsoft Word, etc.) and read the Reader ID and Firmware
conguration barcode.
Reader ID and Firmware
Note: Code will periodically release new rmware for CR1000 readers. For information on latest rmware visit our website at
www.codecorp.com/codesupport.php.
Display
type
Flash file system
version number
Hardware
revision
Hardware type
identifier
Boot
application
version
Operating
system kernel
version
Root file
system
version
Decoder version
ASCII TAB
character
Xap/ i 0808 0808 none 0020094903 A 06 0 0000 0700070016 0062 0002 cd(13.2.18)
○
Firmware
version
Boot firmware
version
Radio firmware
version
Reader serial
number (ten digits)
Current
execution state
String
output
OEM
identifier
○
NOTE 1:
Locating holes are 2 mm in
diameter, hole depth is 1.5 mm.
NOTE 2:
Mounting inserts are M3-.5 internal
thread, 3.8 mm length.
10.36 mm
15.53 mm
34.08 mm
31.12 mm
30.20 mm
27.01 mm
