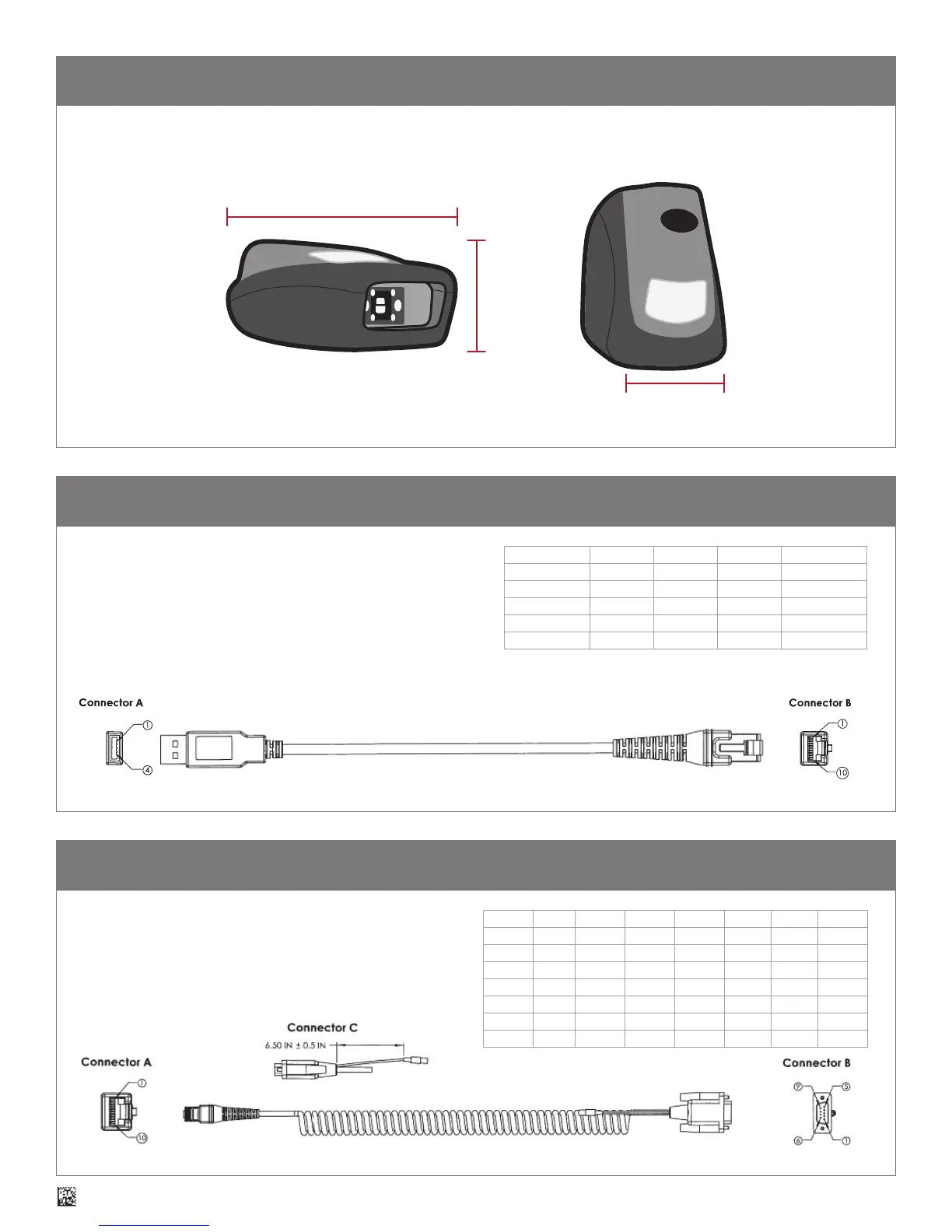

12.0 - CR1000 Overall Dimensions
13.0 - USB Cable Example with Pinouts
14.0 - RS232 Cable Example with Pinouts
NOTES:
1. Part to be ROHS and Reach compliant.
2. Maximum Voltage Tolerance = 5V +/- 10%.
3. Caution: Exceeding the maximum voltage will void
manufacturer warranty.
CONNECTOR A CONNECTOR B
NOTES:
1. Part to be ROHS and Reach compliant.
2. Maximum Voltage Tolerance = 5V +/- 10%.
3. Caution: Exceeding the maximum voltage will void
manufacturer warranty.
CONNECTOR A NAME WIRE COLOR CONNECTOR B
1 VIN 24A WG RED 1
2 DM 28A WG WHITE 2
3 DP 28A WG GREEN 3
4 GND 24A WG BLACK 10
SHELL - SHIELD BARE SHELL
CONN A NAME WIRE COLOR CONN B WIRE COLOR CONN C
1 VIN 24A WG RED 1 24A WG RED TIP
4 TX 28A WG BROWN 2
5 RTS 28A WG ORANGE 8
6 RX 28A WG YELLOW 3
7 CTS 28A WG GREEN 7
10 GND 24A WG BLACK 5 24A WG BLACK RING
SHIELD - SHIELD SHIELD
2.6"
(67 mm)
1.7"
(30 mm)
2.2"
(52 mm)
