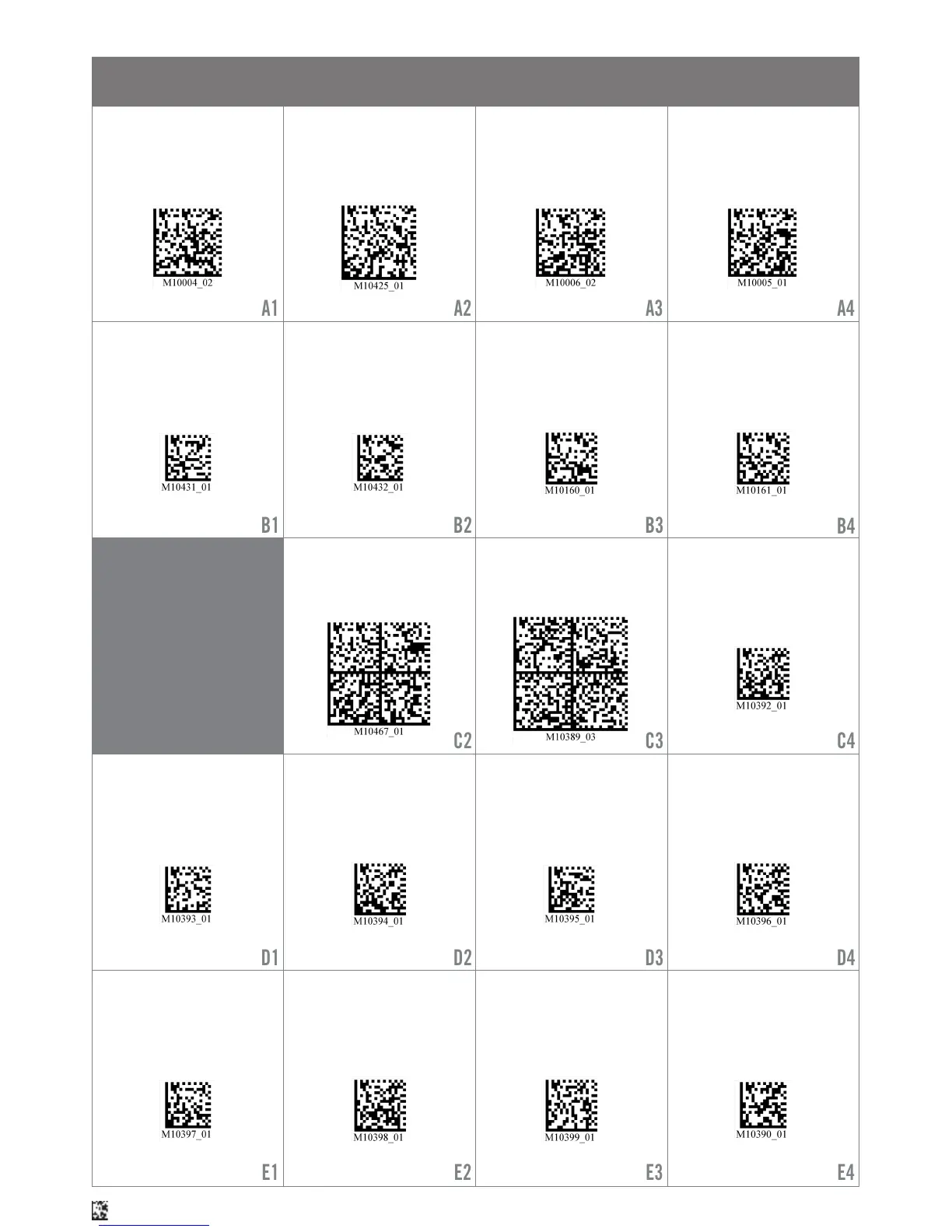

Code CR1400 - RS232 Settings

A1 A4A2 A3
B1 B2 B3
C1 C4C2 C3
D1 D4D2 D3
E1 E4E2 E3
B4
CR1400 Configuration Guide
NOTE: Configuration changes will take effect immediately and be saved to memory
Web Generated Configuration Guide
For questions regarding reader configuration contact support@codecorp.com.
18
USB Downloader Mode USB HID POS Mode (Terminal
ID 131)
USB Native Two Way Mode USB Virtual COM One Way
Mode
USB Virtual COM Multiple Ports USB Virtual COM Common
Ports
USB Speed High Speed -
Default
USB Speed Full Speed
Reader - Enable RS232
OPOS/JPOS
Reset to RS232 Factory
Defaults
RS232 Interface 1200 Baud
Rate
RS232 Settings
RS232 Interface 2400 Baud
Rate
RS232 Interface 4800 Baud
Rate
RS232 Interface 9600 Baud
Rate
RS232 Interface 19200 Baud
Rate
RS232 Interface 38400 Baud
Rate
RS232 Interface 57600 Baud
Rate
RS232 Interface 115200 Baud
Rate - Default
RS232 Interface 7 Data Bits
