Code CR1500 User Manual

9
D030210_01_CR1500_User_Manual

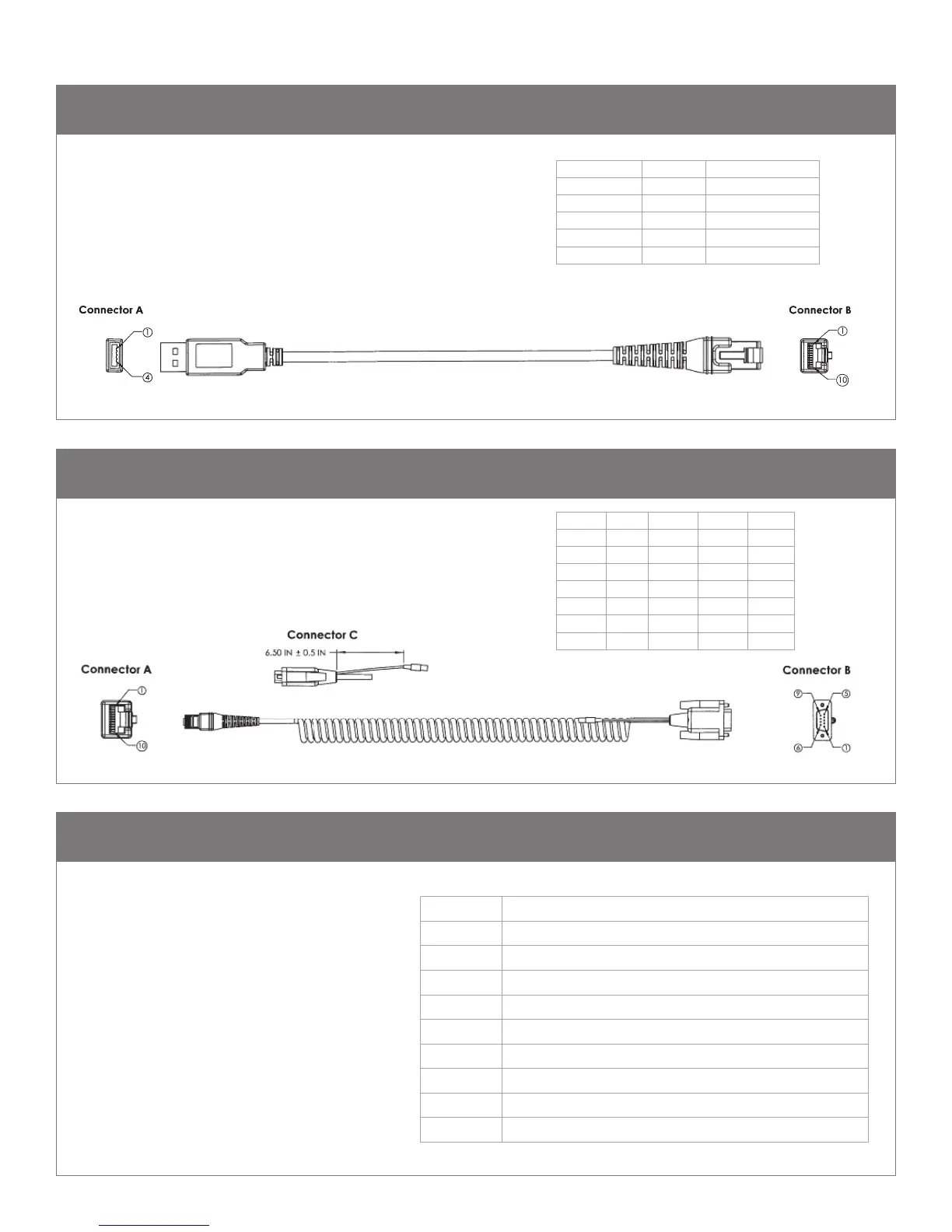

15.0 - Reader Pinouts
13.0 - USB Cable Example with Pinouts
14.0 - RS232 Cable Example with Pinouts
NOTES:
1. Part to be ROHS and Reach compliant.
2. Maximum Voltage Tolerance = 5V +/- 10%.
3. Caution: Exceeding the maximum voltage will void
manufacturer warranty.
CONNECTOR A CONNECTOR B
CONNECTOR A NAME CONNECTOR B
1 VIN 1
2 D+ 2
3 D- 3
4 GND 10
SHELL - NC
NOTES:
1. Part to be ROHS and Reach compliant.
2. Maximum Voltage Tolerance = 5V +/- 10%.
3. Caution: Exceeding the maximum voltage will void
manufacturer warranty.
CONN A NAME CONN B COLOR CONN C
1 VIN 1 RED TIP
4 TX 2
5 RTS 8
6 RX 3
7 CTS 7
10 GND 5 BLACK RING
NC - SHIELD
The connector on the CR1500 is an RJ-50
(10P-10C). The pinouts are as follows:
Pin 1 +VIN (5v)
Pin 2 USB_D-
Pin 3 USB_D+
Pin 4 RS232 TX (output from reader)
Pin 5 RS232 RTS (output from reader)
Pin 6 RS232 RX (input to reader)
Pin 7 RS232 CTS (input to reader)
Pin 8 External Trigger (active low input to reader)
Pin 9 N/C
Pin 10 Ground
