D041878 CR5200 User Manual
16.0 - Reader Pinouts
The connector on the CR5200 is an RJ-50 (10P-10C). The pinouts are as follows:
Pin 1 +VIN (5v) Pin 6 RS232 RX (input to reader)
Pin 2 USB_D- Pin 7 RS232 CTS (input to reader)
Pin 3 USB_D+ Pin 8
N/C
Pin 4 RS232 TX (output from reader) Pin 9
N/C
Pin 5 RS232 RTS (output from reader) Pin 10 Ground

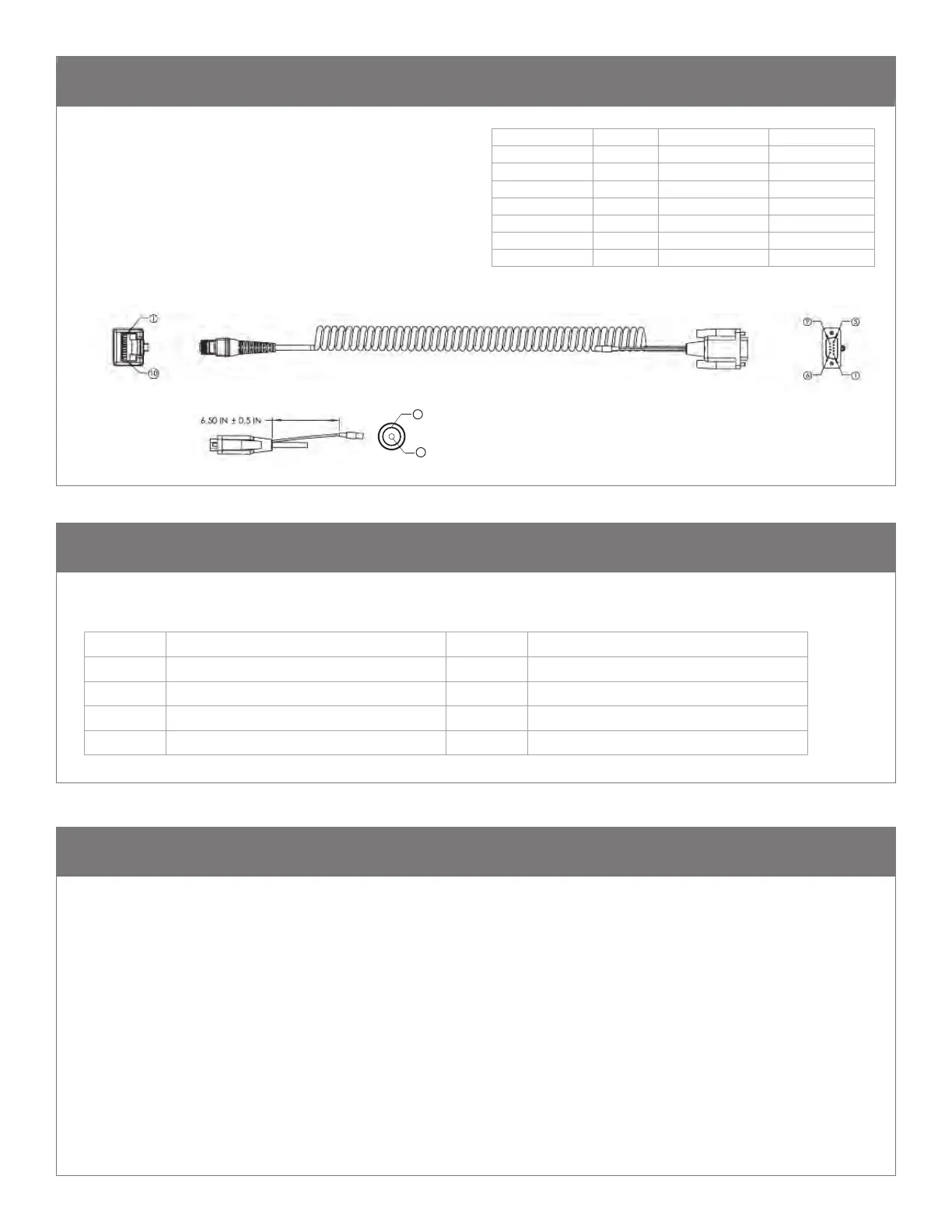

15.0 - RS232 Cable Example with Pinouts
NOTES:
1. Part to be ROHS and Reach compliant.
2. Maximum Voltage Tolerance = 5V +/- 10%.
3. Caution: Exceeding the maximum voltage will void
manufacturer warranty.
*Diode on Pin 9 of Connector A prevents back-powering of host.
17.0 - CR5200 Series Maintenance
The CR5200 series devices need only a minimum amount of maintenance to operate. A few tips are given below for maintenance
suggestions.
Cleaning the CR5200 Series Window
The CR5200 window should be clean to allow the best performance of the device. The window is the clear plastic piece inside the
head of the reader. Do not touch the window. Your CR5200 uses CMOS technology that is much like a digital camera. A dirty
window may stop the CR5200 from reading barcodes. If the window becomes dirty, clean it with a soft, non-abrasive cloth or a facial
tissue (no lotions or additives) that has been moistened with water.
Technical Support and Returns
For returns or technical support visit www.codecorp.com/
CONNECTOR A CONNECTOR B
CONNECTOR C
1
2
CONNECTOR A NAME CONNECTOR B CONNECTOR C
1 VIN 9 TIP
4 TX 2
5 RTS 8
6 RX 3
7 CTS 7
10 GND 5 RING
N/C SHIELD SHELL
