CODEL Operation and Maintenance Manual

Issue : A Rev. : 3 Date : 13/11/2018 Ref. : 100351

P a g e | 10

4 Installation

Be sure to observe all necessary safety precautions at all times during installation.

All cable gland entry holes are drilled and tapped M20 x 1.5 and are fitted with blanking plugs.

Cable glands are to be supplied by the customer according to the cables used during installation.

4.1 Mounting Details

After unpacking the equipment check, using the packing list provided, that all items are present. TunnelTech

500 is carried on a fabricated mounting bracket (if supplied)

4.1.1 TunnelTech 500

Secure the TunnelTech 500 to the tunnel wall by the mounting brackets supplied using 4 x M8 bolts (by

others).

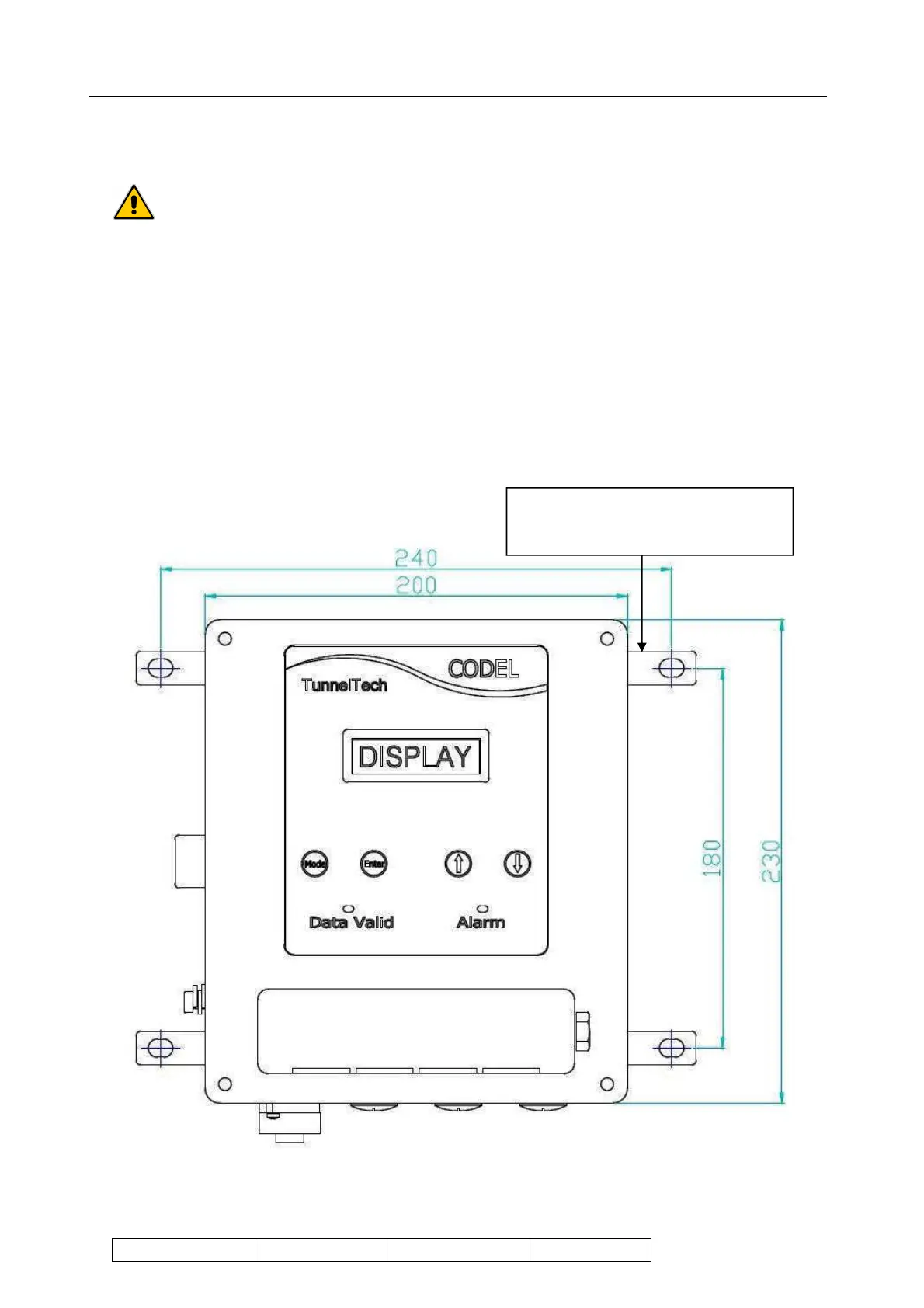

Figure 3: TunnelTech 500 – Mounting Dimensions

4 x holes on latch and hinge for M8

mounting bolts
