COEF MP 700 ZOOM - Special Action

http://www.coef.it - info@coef.it Pag. 11
EFFECTS (Frost - Prism)
0 - 5Neutral
6 - 20 Automatic FROST from 0 to 100% (velocity adjustment)
21 - 40 Automatic FROST from 100% to 0(velocity adjustment)
41 - 60 Frost
61 - 80 Prism 3 faceted
81 - 170 CW PRISM rotation withvelocity adjustment
171 - 255 CWW PRISM rotation withvelocity adjustment
IRIS
0 - 5Open / Neutral
6 -
130 IRIS with manualregolation (100% - 0)
131 - 150 IRIS closed
151 - 170 IRIS 0 - 100%
171 - 190 IRIS 100% - 0
191 - 210 IRIS 0-100%-0slow
211 - 230 IRIS 0-100%-0 middle
231 - IRIS 0-100%-0 fast
251 - 255 IRIS 0-100%-0random
DIMMER
0 - 5 DIMMERClosed
6 - 250 DIMMERregolation
251 - 255 DIMMEROpen
WARNING
:position CHANNEL1at a value between 6 and 250, in order to control DIMMER with this channel.
USE MODE (only Electronic Ballastcode 02E011)
0 - 5Studio mode
6 - 250 Regolation
251 - 255 Livemode
MOVEMENTS TIME ADJUSTMENT (work on channels 5-7)
0 - 5NOdelay
6 -
250 adjustment delay
251 - 255 MAX delay
CH
12
13
14
15
16

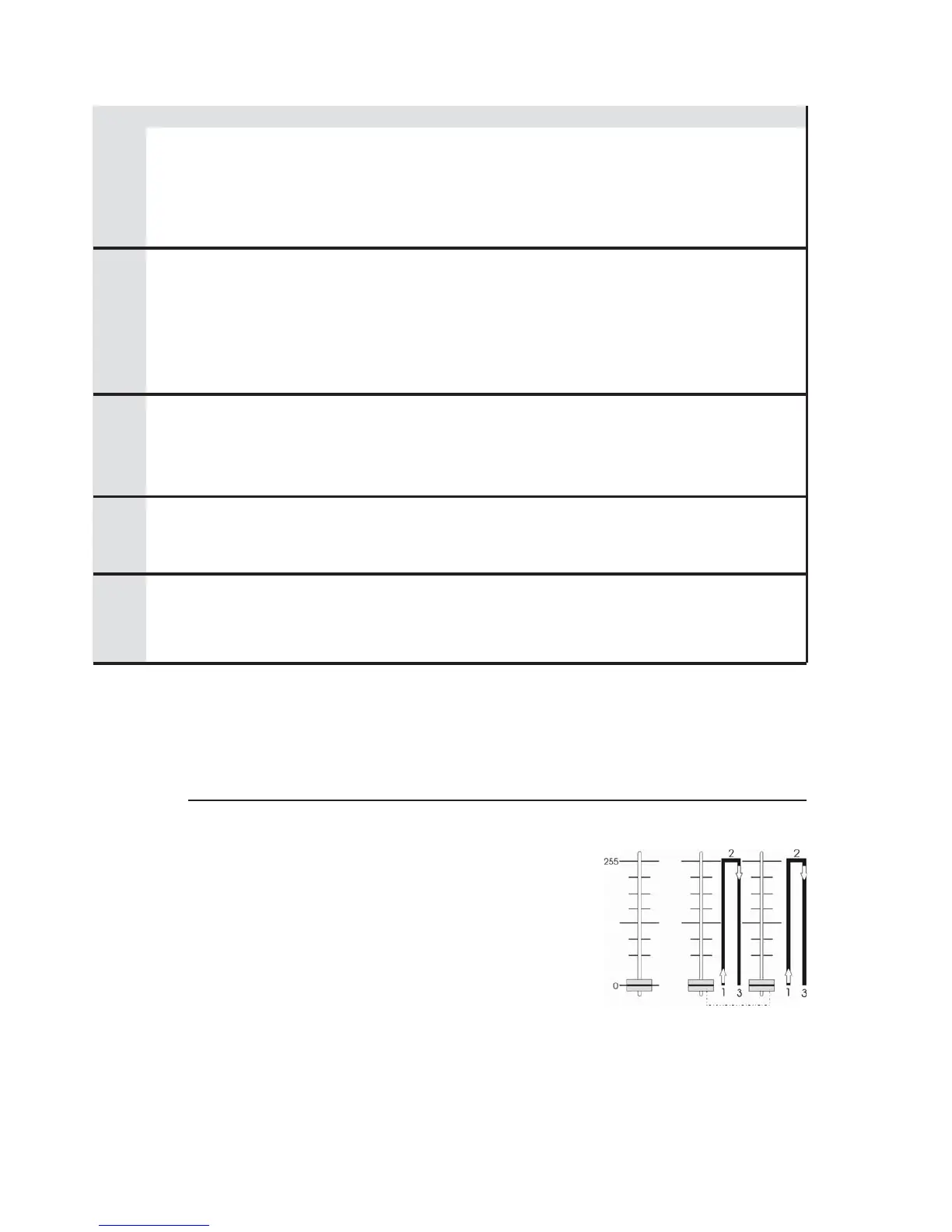

7.1 SPECIAL ACTION
When the lamp control via DMX (CDMX) and the reset via DMX (RDMX) function
have been activated in the configuration menu, it’s possible,bya combination of
thechannels values, to control the lamp switchON/OFF or to allow theprojector
MASTERRESET.
Lamp ON via DMX:
CHANNEL 2 = value 0
CHANNEL 3 and CHANNEL 4 = value0>255>0
Lamp OFF via DMX:
CHANNEL 2 = value 255
CHANNEL 3 and CHANNEL 4 = value0>255>0
MASTER RESET:
CHANNEL 1 = value 0
CHANNEL 2 and CHANNEL 3 = value0>255>0
250
