Colasit CMV 450 - Dimensional Drawings; Dimensions of the CMV 450-800 with Direct Drive

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone +41 (0)33 655 61 61 Fax +41 (0)33 654 81 61
TD-000 796-E
Edition 10/2019, Subject to alteration
Copyright by COLASIT AG Spiez
Page 17
16 Dimensional drawings

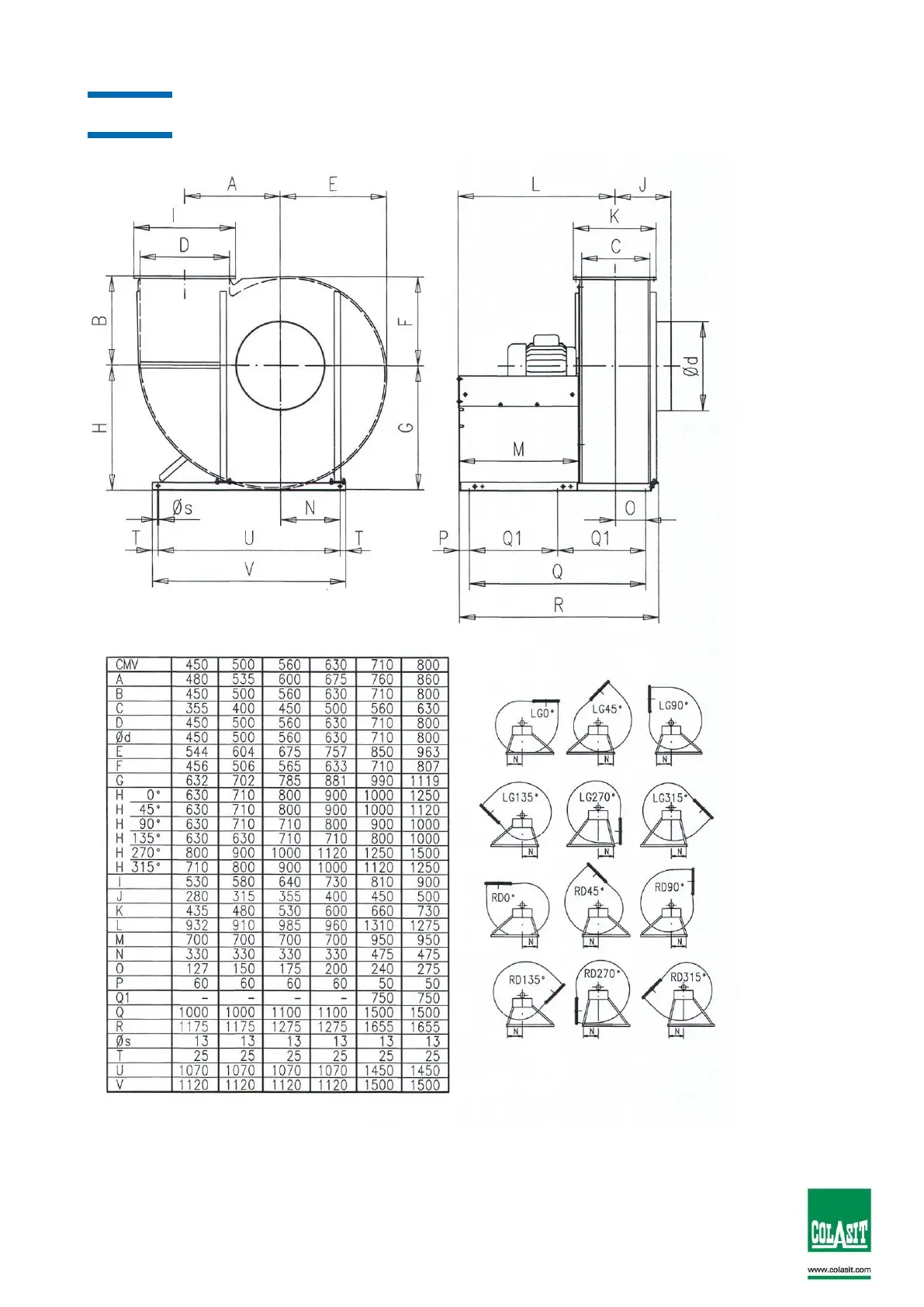

16.1 Dimensions of the CMV 450-800 with direct drive
