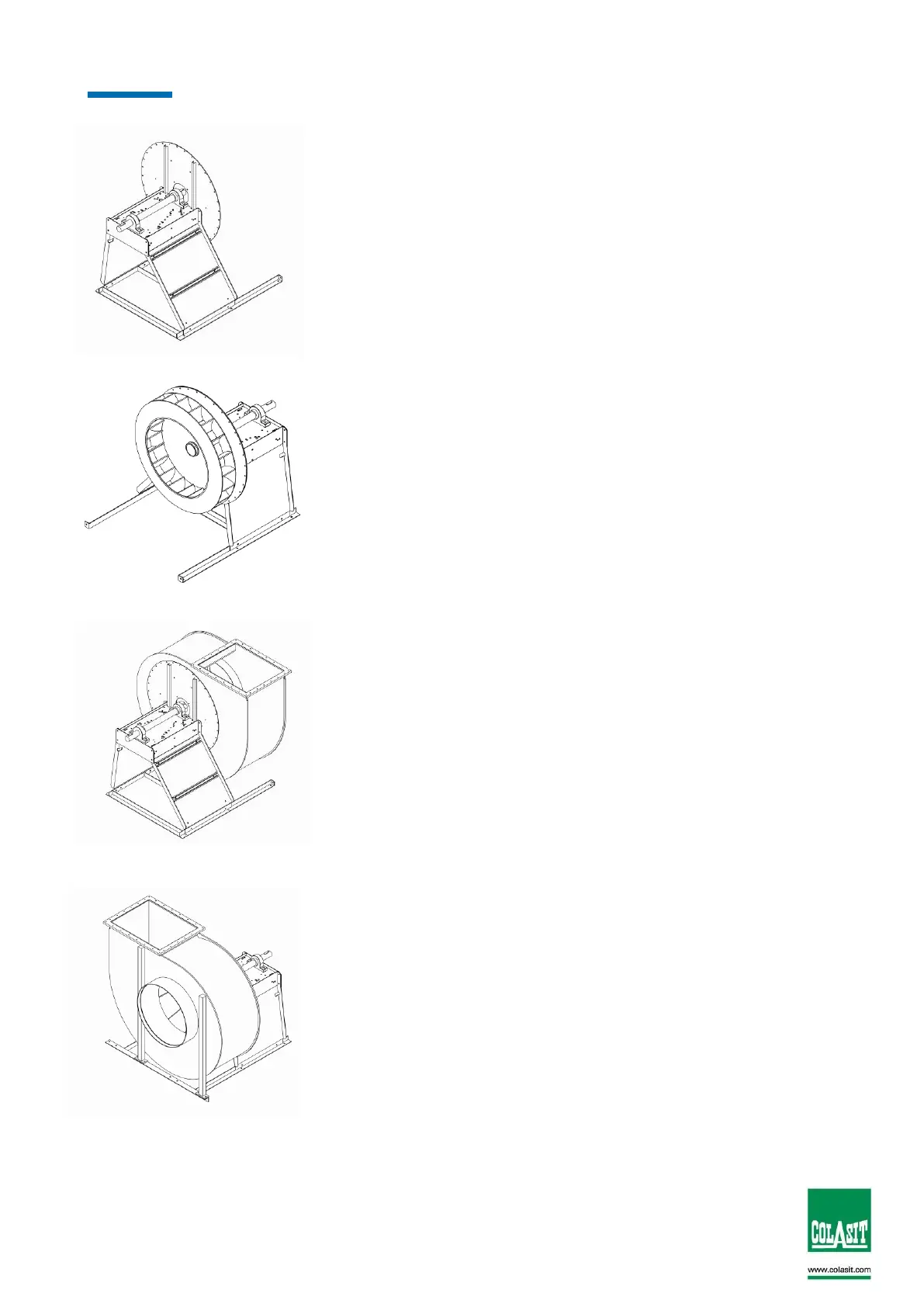

17.2 Assembly instructions for CMV 450-800 with V-belt drive
1. Attach support steel sheets including round steel plate,
pedestal bearing and shaft to base frame.
2. Place plastic back plate and impeller onto shaft with Taper-
Lock bushing and tighten.
3. Join casing with round steel plate together with bolts.
4. Screw bracket to base frame.
Screw casing reinforcements to bracket.
