Colasit CMV 450 - Spare Parts List for CMV 450-800 with V-Belt Drive

COLASIT AG
Plastic construction
CH-3700 Spiez
Phone +41 (0)33 655 61 61 Fax +41 (0)33 654 81 61
TD-000 796-E
Edition 10/2019, Subject to alteration
Copyright by COLASIT AG Spiez
Page 23

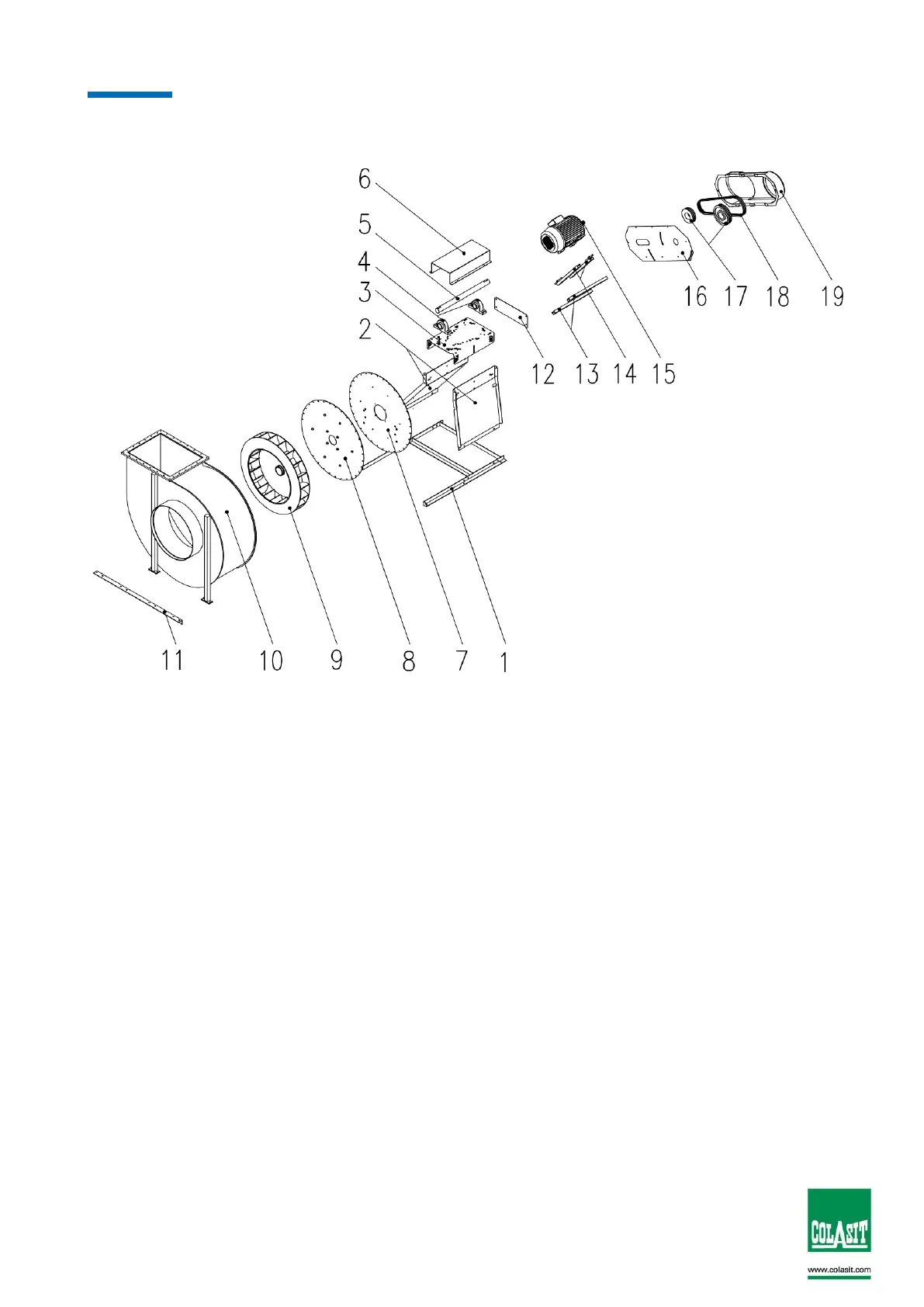

18.2 Spare parts list for CMV 450-800 with V-belt drive
1 Base frame 11 Support bracket
2 Support construction 12 Front steel plate
3 Motor plate with bracket 13 Base rails
4 Pedestal bearing 14 Sliding rails
5 Shaft 15 Motor
6 Shaft protection 16 V-belt protection steel plate
7 Round steel plate 17 V-belt pulley complete
8 Back plate 18 V-belt
9 Impeller with Taper-Lock bushing 19 V-belt protection
and hub cap
10 Casing
