17 Assembly instructions

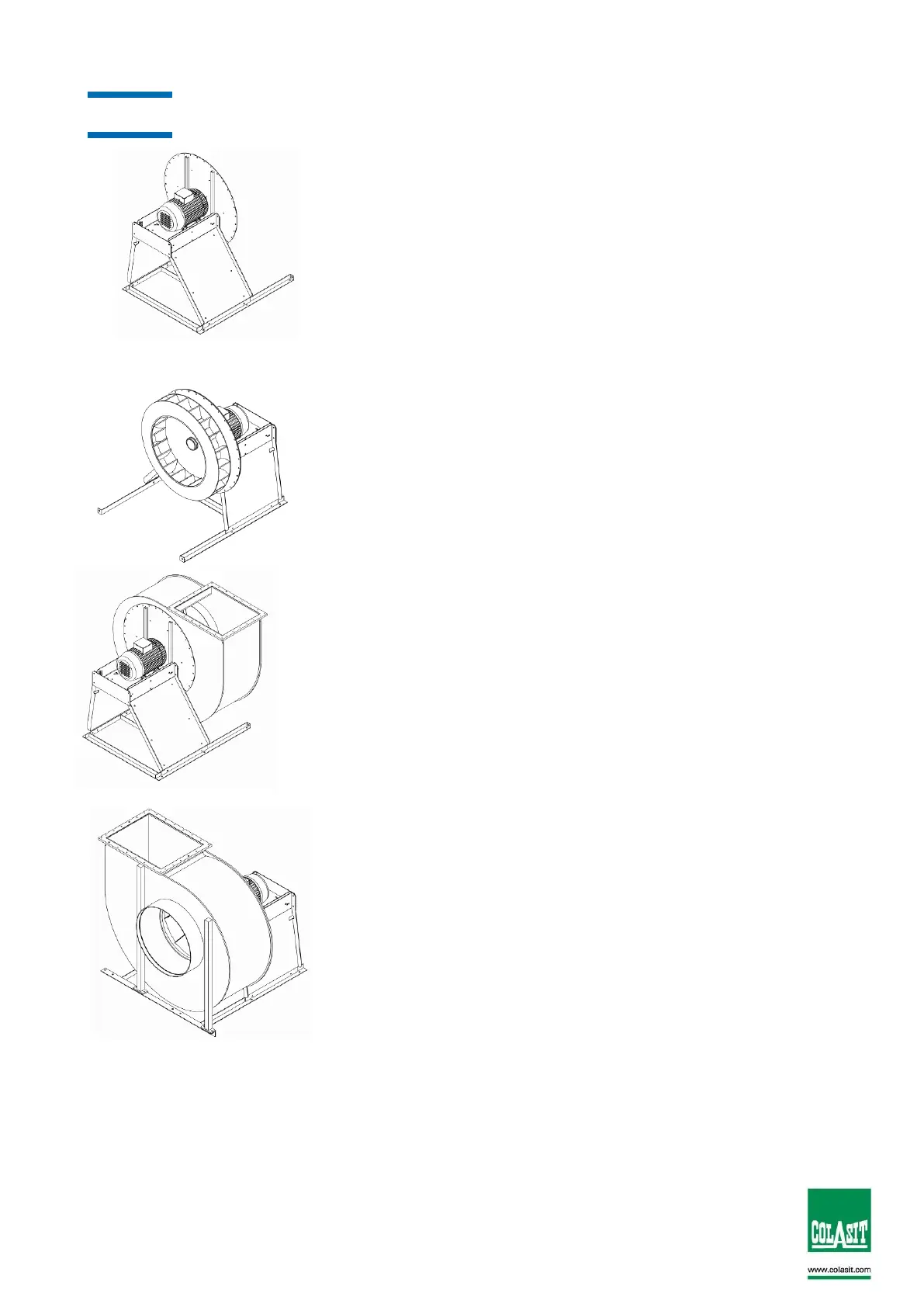

17.1 Assembly instructions for CMV 450-800 with direct drive
1. Attach support steel sheets including round steel plate and motor
to base frame.
2. Place plastic back plate and impeller onto shaft with Taper-
Lock bush and tighten.
3. Join casing with round steel plate together with bolts.
4. Screw bracket to base frame.
Mount casing reinforcements to bracket.
Dismantling in the same way but in reverse order
