Coleman CT200U-EX V Assembly Instructions

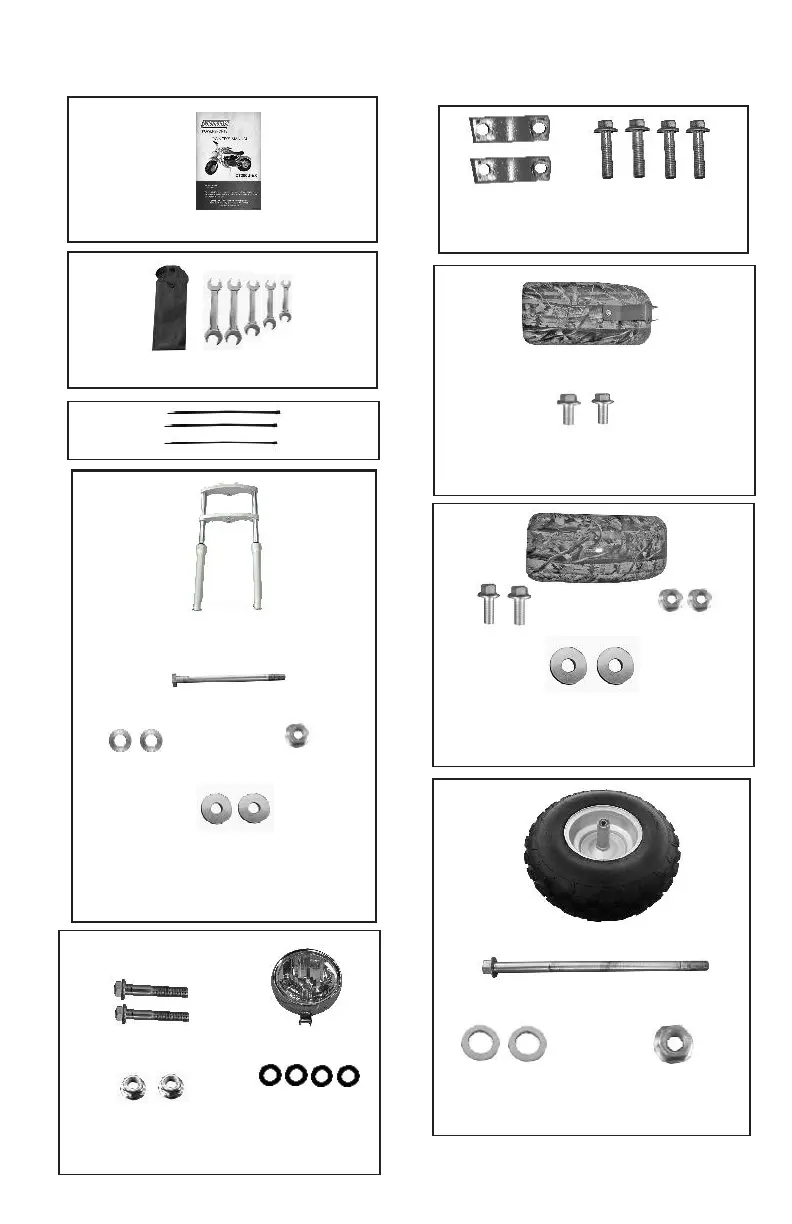

REMOVAL FROM CRATE
Tool Kit
Zip Ties
8mm Large Washers
Front Fork
Assembly
Front Fork
Suspension
Front wheel
M14 Axle Bolt
Assembly
M10 Large Washers
M10 Small
Washers
M10 Lock Nut
M10 Steering Bolt
M14 Washers
M14 Lock Nut
Rear Fender
Clamps
M8 x 32 bolts
Rear Fender
M8 x 15 Bolts
M8 x 20 Bolts
M8 Nuts
Front Fender
with light Bracket
Owner’s/Operator’s Manual
Handle Bar Hardware
Grommets
Front Wheel Assembly
Front Fender
Assembly
Light Assembly
M8 Rubber
M8 Nuts
Light
M8 x 50 Bolts
1

Coleman CT200U-EX V Specifications

General

Horsepower	6.5 hp
Weight Capacity	200 lbs
Fuel System	Carburetor
Starting System	Recoil start
Final Drive	Chain
Frame	Steel
Rear Brake	Drum
Top Speed	24 mph
Transmission	Automatic
Tires	19 x 7-8
Dry Weight	119 lbs
Engine Type	Air-cooled, 4-stroke, single-cylinder
