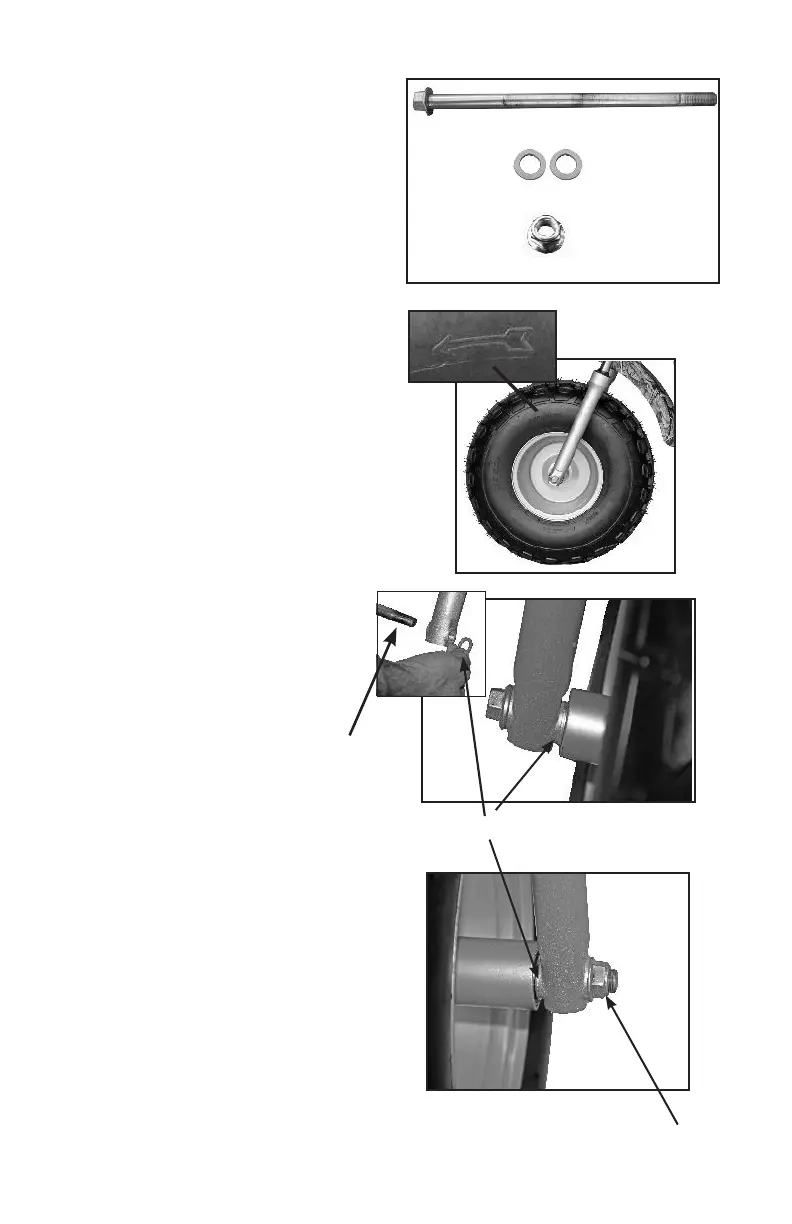

1. Orient the front tire so the arrow
on the tire faces forward.
Arrow faces forward
Large 8mm Washers
M14 Axle Bolt
M14 Lock Nut
M14 Washer
M14 Axle bolt 1ea.
M14 washers 2ea.
M14 lock nut 1ea.
3. Install M14 lock nut
and tighten.
2. Insert Axle bolt with the M14
washers between the forks and wheel
on each side.
FRONT WHEEL INSTALLATION
6

Table of Contents

Other manuals for Coleman CT200U-EX V

Preview: Owner's Manual
Owner's Manual39 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Coleman CT200U-EX V and is the answer not in the manual?

Coleman CT200U-EX V Specifications

General IconGeneral
Horsepower6.5 hp
Weight Capacity200 lbs
Fuel SystemCarburetor
Starting SystemRecoil start
Final DriveChain
FrameSteel
Rear BrakeDrum
Top Speed24 mph
TransmissionAutomatic
Tires19 x 7-8
Dry Weight119 lbs
Engine TypeAir-cooled, 4-stroke, single-cylinder
