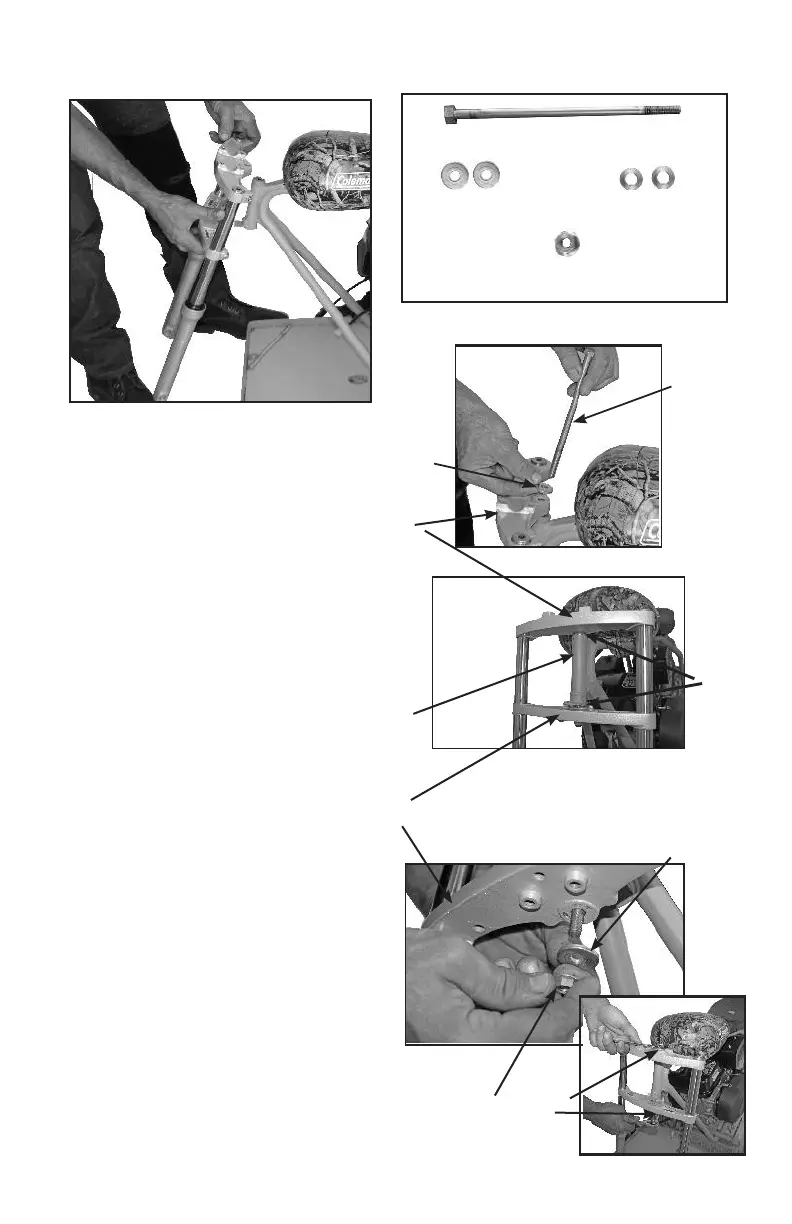

FRONT FORK INSTALLATION
Large Washer
Steering
Bolt
Top
Bracket
Small
Washer
Large Washer
Lock Nut
Tighten
Bolt
1. Install front Fork Assembly by
inserting the M10 steering bolt
through the assembly in the
following order: Large washer,
Top bracket, Small Washer,
Steering Neck, Small washer,
Bottom bracket, Large Large
Washer, Lock Nut
M10 Steering Bolt
M10 Large
Washers
M10 Small
Washers
M10 Lock Nut
Steering Neck
Bottom Bracket
2. Tighten Lock nut
