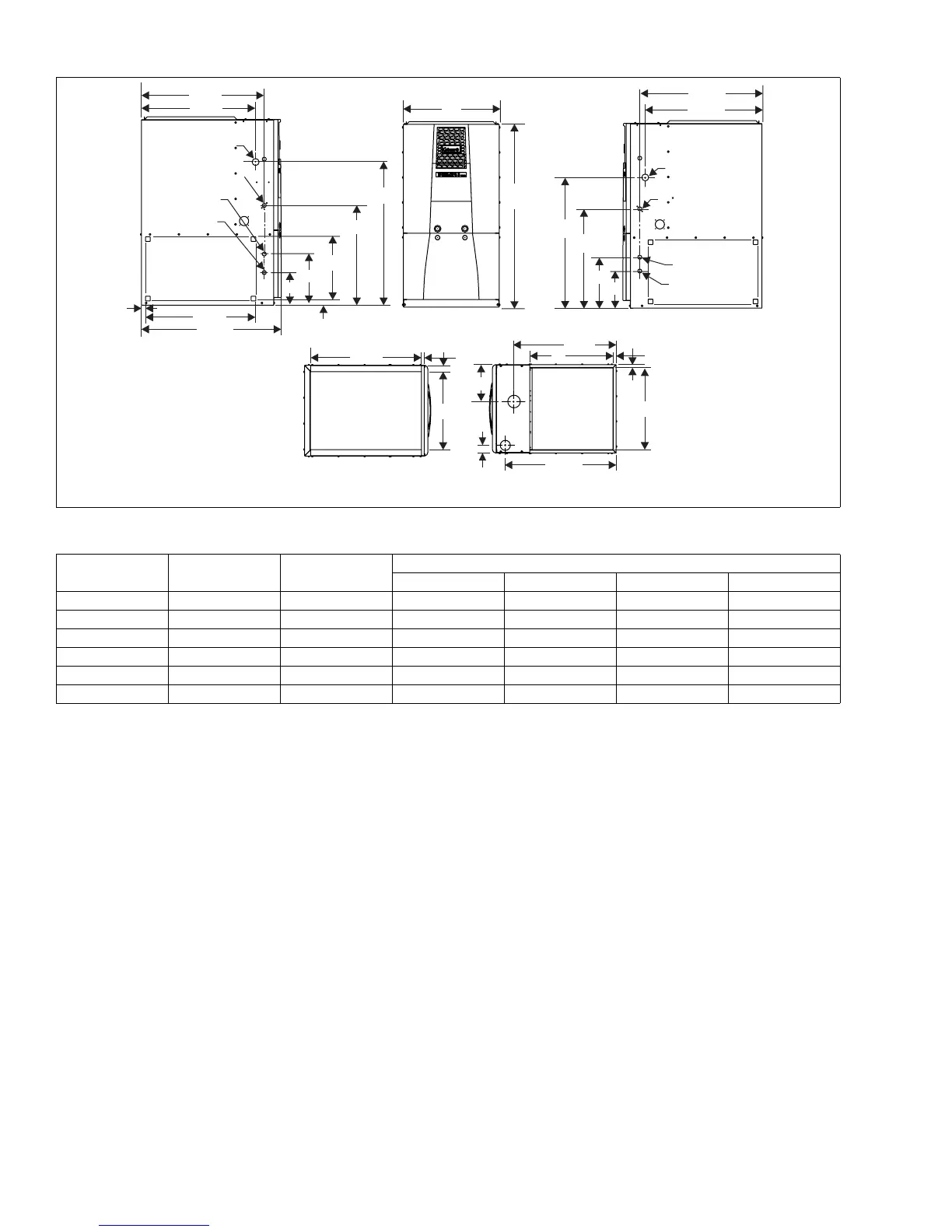

Coleman FC9M080C16UP11 - DIMENSIONS

259720-CTG-B-0108
2 Unitary Products Group
30-7/8
21-1/2
13-7/8
7
11
7/8
23-3/4
7/8
30-1/8
26-1/2
24-5/8
A
40
26-1/2
25-3/8
28-3/8
21-1/2
11
8
26-3/4
1-3/8
1-1/4
C
24-3/8
20
5/8
5/8
B
24-7/16
2
D
1-1/2” GAS
PIPE ENTRY
7/8” JUNCTION
BOX HOLE
T-STAT WIRING
7/8” K.O.
CONDENSATE
DRAIN 7/8” K.O.
OPTIONAL RETURN AIR
CUT-OUT (either side)
FOR USE WITH
EXTERNAL FILTER
FRAME
LEFT SIDE
FRONT
RIGHT SIDE
BOTTOM IMAGE
RETURN END
TOP IMAGE
SUPPLY END
1-1/2” GAS
PIPE ENTRY
7/8” JUNCTION
BOX HOLE
T-STAT WIRING
7/8” K.O.
CONDENSATE
DRAIN 7/8” K.O.
DIMENSIONS
Models
Nominal
CFM
Cabinet
Size
Cabinet Dimension
A (in.) B (in.) C (in.) D (in.)
FC9M060B12UP11 1200 B 17-1/2 16-1/4 14-1/2 8-1/2
FC9M080B12UP11 1200 B 17-1/2 16-1/4 11 8-1/2
FC9M080C16UP11 1600 C 21 19-3/4 18 8-7/8
FC9M100C16UP11 1600 C 21 19-3/4 18 8-7/8
FC9M100C20UP11 2000 C 21 19-3/4 18 8-7/8
FC9M120D20UP11 2000 D 24-1/2 23-1/4 21-1/2 10-5/8
