8-6 Periodic Maintenance and Adjustment

Hood

To Open

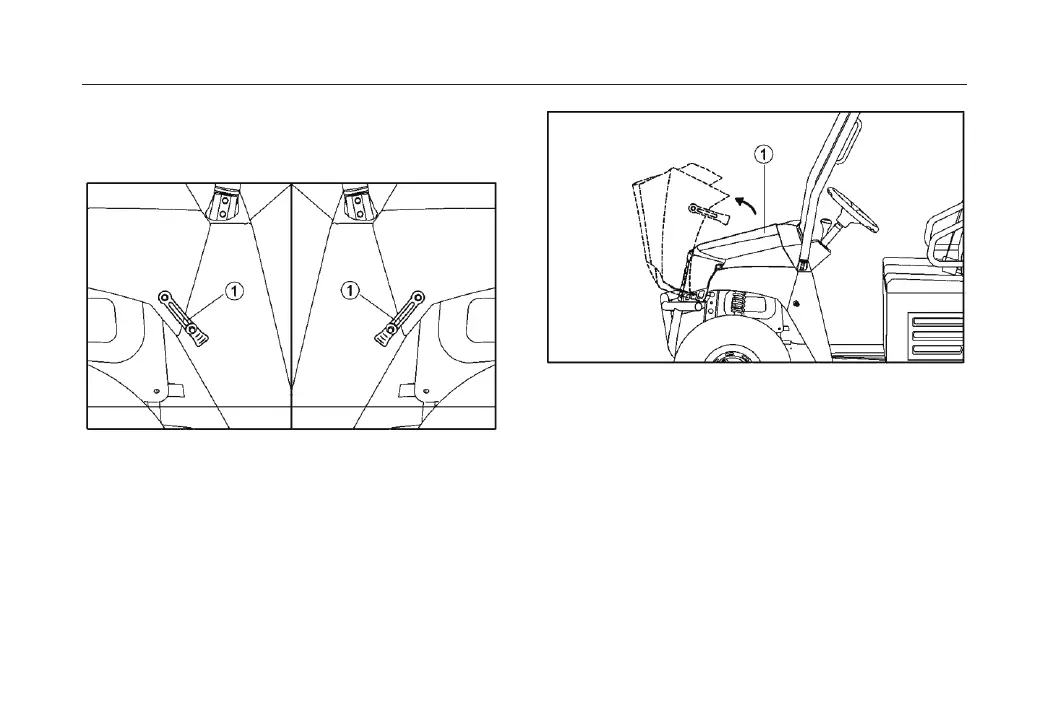

Unhook the hood latches, and then slowly tilt

the hood up until it stops.

1. Latch (×2)

1. Hood
