Pre Operation Checks 5-14

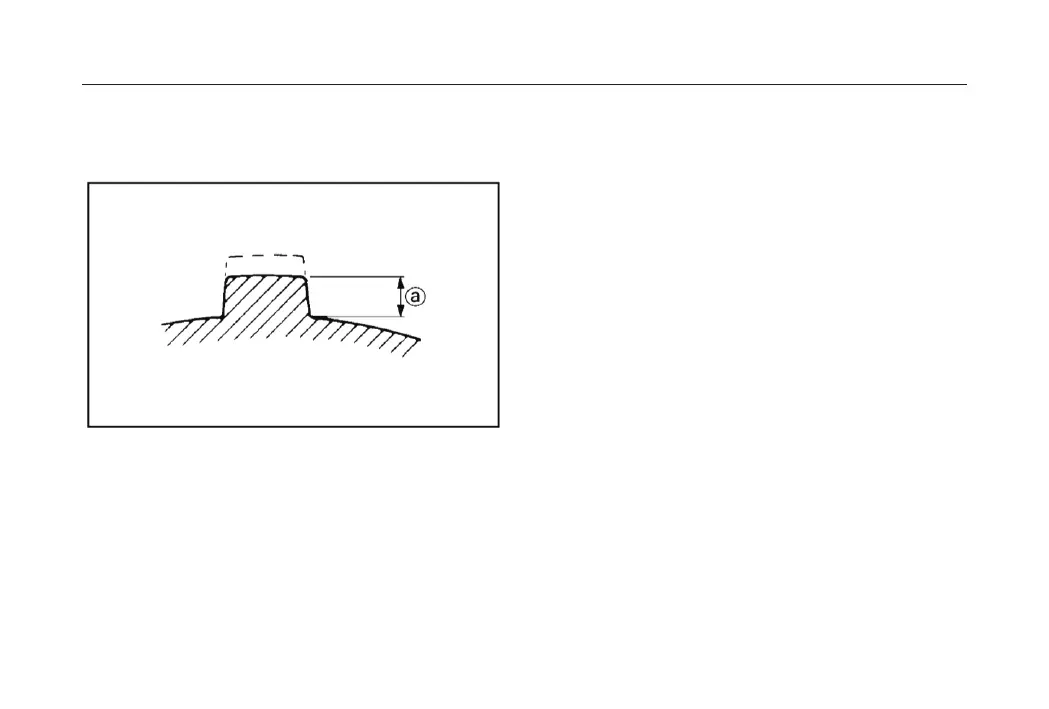

Tire Wear Limit

When the tire groove decreases to 0.12 in (3

mm) due to wear, replace the tire

a. Tire wear limit
