Periodic Maintenance and Adjustment 8-9
1. High voltage wire
2.Ignition signal plug
3. Ignition coil

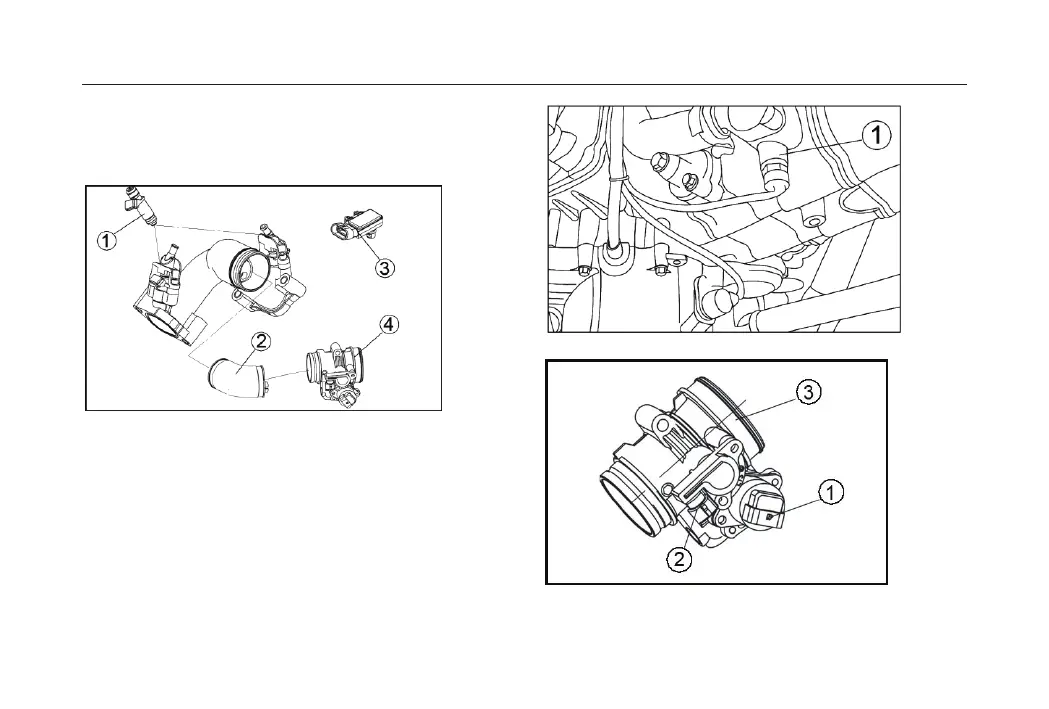

1. Fuel injector 2. Bent pipe, inlet pipe
3. Intake air temperature sensor/ pressure sensor
4. Ducting dampers
2. Water temperature sensor
1. Air damper degree sensor
2. Idle speed stepper motor 3. Air damper
