Periodic Maintenance and Adjustment 8- 27
1. Air filter check hose
1. Remove the seats. (See pages 4-19 - 4-20
for seat removal and installation
procedure.)
2. Remove the Engine cover. (See page
8-16-8-17 for Engine cover removal and
installation procedure.)
3. Remove the connecting rubber tube
between air cleaner and throttle valve
and the screws fixing the air cleaner, and
then remove the air cleaner.

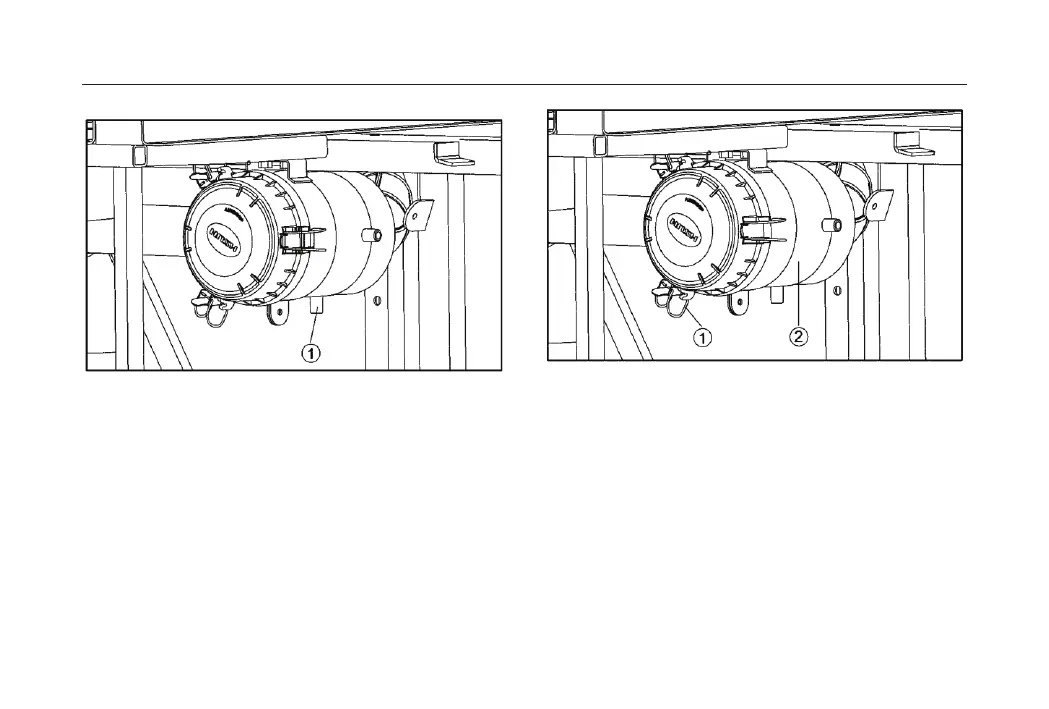

1. Holder (×3) 2. Air filter case cover
4. Remove the air filter element.
5. Remove the sponge material from its
frame.
To Next Page
