Testmode
The firmware of the Collamat® 3600 has a standard test and diagnostic routine. If the
DIL-switch TEST is switched on while turning the power on, the firmware starts the test
and diagnostics routine. See also figure 2.
In the testmode, the motor is started and stopped periodically with the speed, set on the
SPEED potentiometer. If there are any labels threaded through the Collamat® 3600,
the labels will be dispensed periodically.
In the testmode, the Collamat® 3600 can be controlled by an ASCII-terminal or a PC
with a terminal emulation software. The communication with the Collamat® will be done
through the connector X104 using the RS232 protocol. The test software is menu driven
and self explaining. The user language is English.

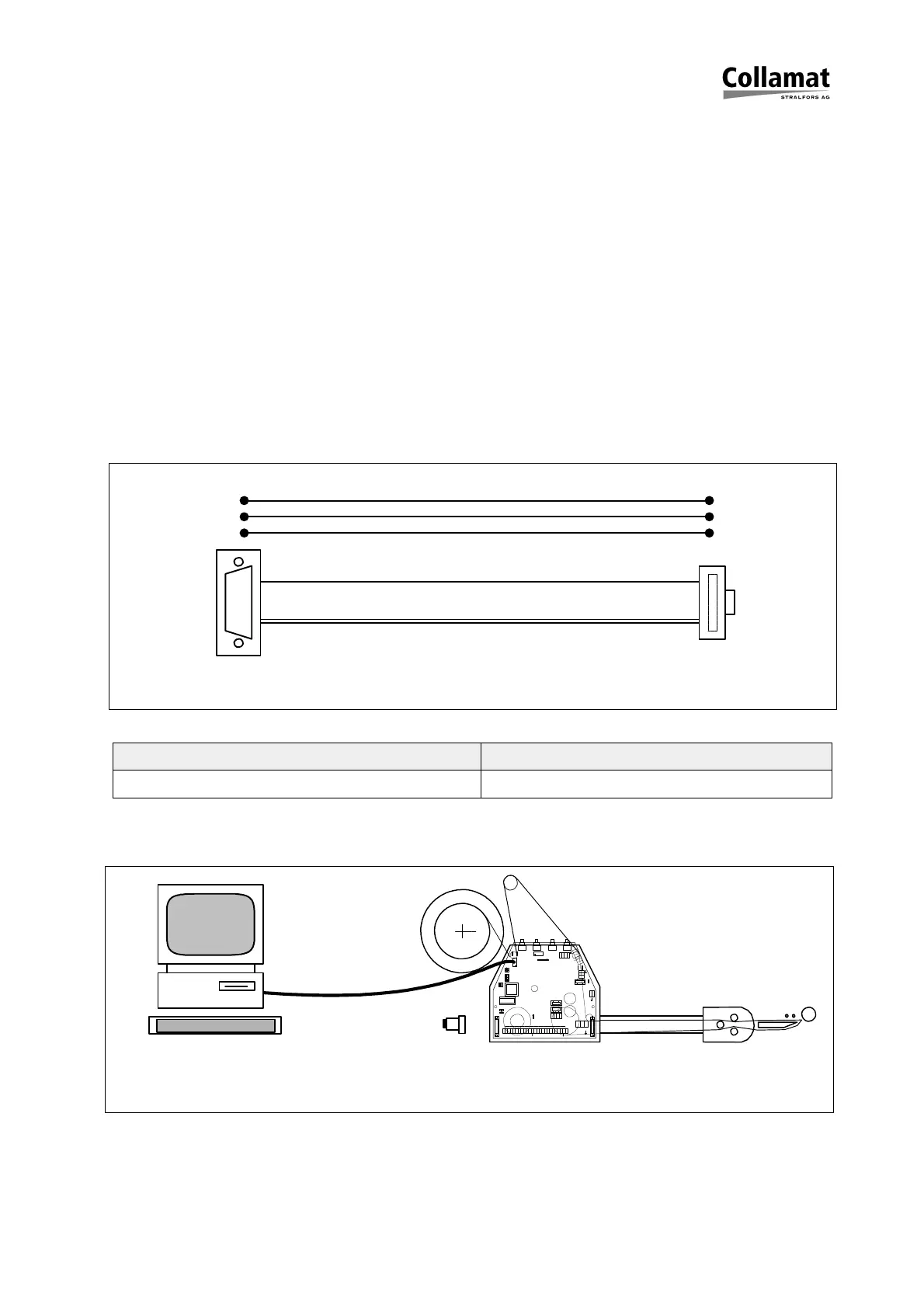

To communicate with a PC, a serial communication cable is used. The figure 6 shows
the electrical connections of the serial cable:
Figure 6
Communication parameters Terminal settings
9600 Baud, 8 Bit, 1 Stop Bit, No Parity TTY, Text
Figure 7 shows how to connect the Collamat® 3600 to a PC:
Figure 7: Test connections
9Pol D-Sub
10Pol Flachkabel
3
5
9
2
3
5
10 pol
1
1
GND
GSC1
+12V
GND
LSC
+12V
TCY
+12V
GND
RDY
FEED
IFD
IFD
+12V
GND
GSC2
+12V
GND
GSC3
NSTPI
NSTPO
GND
ERR
ERR
+12V
X48
a3
a2
a1
L1
N1 X46
9
6
1
F1
2AT 230V
4AT 115V
N
L
X51
F2
2.5AT
1.6AT
F3
3
3
7
7
IN
X40
L N
PE
X101X102
12V
5V
TEST
DIR
DEL
NS
R1
R2
X104
12
RESET
FAULT
X61
X60
1
X103
X106
1
7605
OUT
X1
X25
SPEED
PREDISP
POS TCY
X105
X39
X36
COM1
PC
Diagnosestecker
5999.527-01A 25.11.98 WM Seite 9 / 32
