DIL-switches
The dispenser board contains six DIL-switches. These switches are used to select diffe-
rent operating modes. The following table and figure 10 show the functions and the
positions of the DIL-switches:
Switch Function Off On
DIR Turning direction of the motor Right Left
TEST Labelingmode/ Testmode
Slave in Nonstopmode
Labelingmode Testmode
DEL Delayed predispensing Normal mode Delayed predispensing
NS Nonstop Normal mode Nonstopmode
Test On : Master
Test Off : Slave
R1 Position/GSC-Suppression Position GSC-Suppression
R2 Potentiometer range
Incremental encoder
Normal
Off
Programmed
Programmed

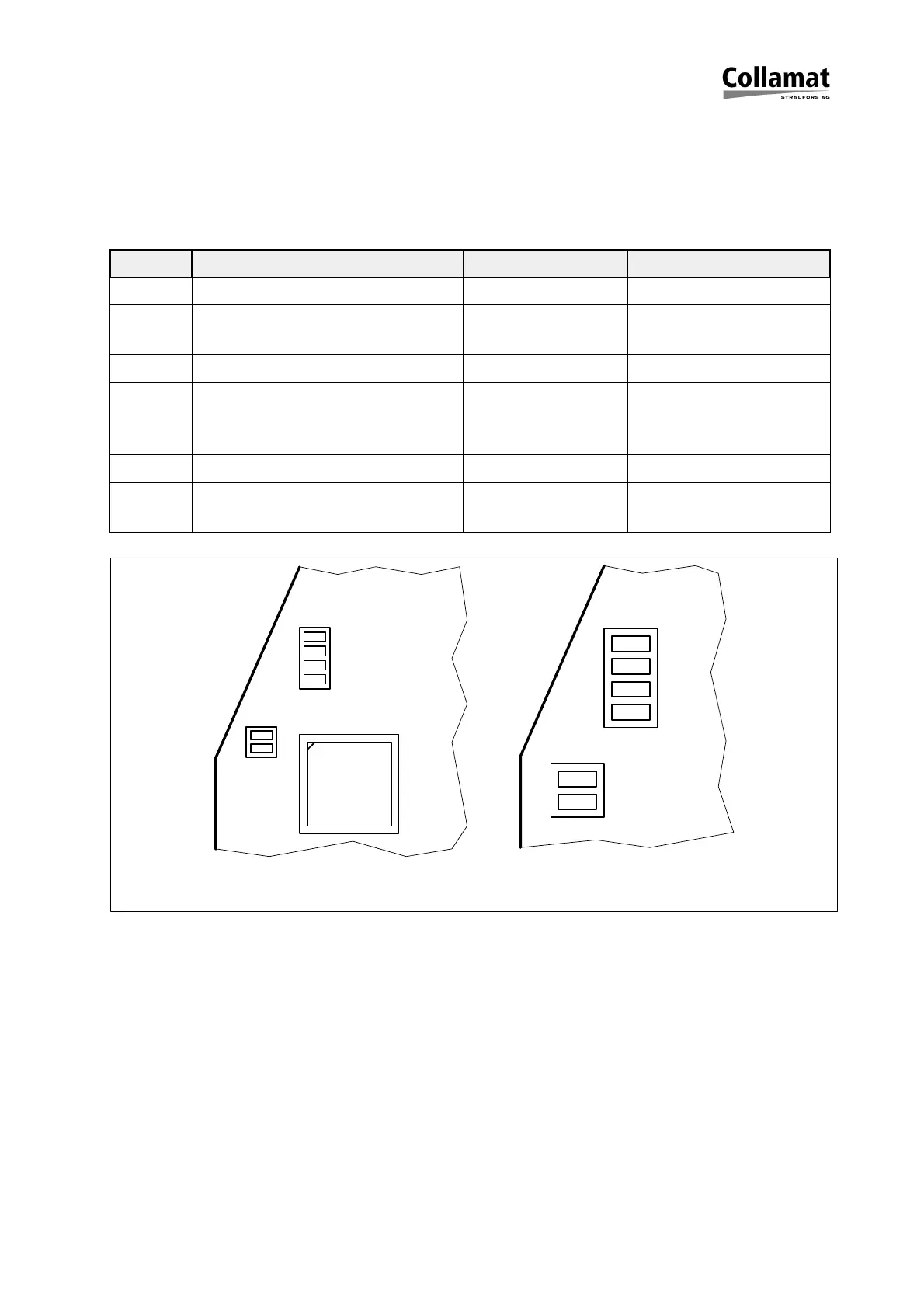

Figure 10: DIL-switches
DIL-switch DIR
This DIL-switch selects the turning direction (right or left) of the traction motor.
DIL-switch TEST
This DIL-switch selects the testmode. For further informations to the testmode, please
read the chapter Testmode.
DEL
NS
R1
R2
TEST
DIR
On
Off
Off
On
5999.527-01A 25.11.98 WM Seite 14 / 32
