Instruction Manual - Twin Master
12
11
13
3 - Identication, features and technical specications

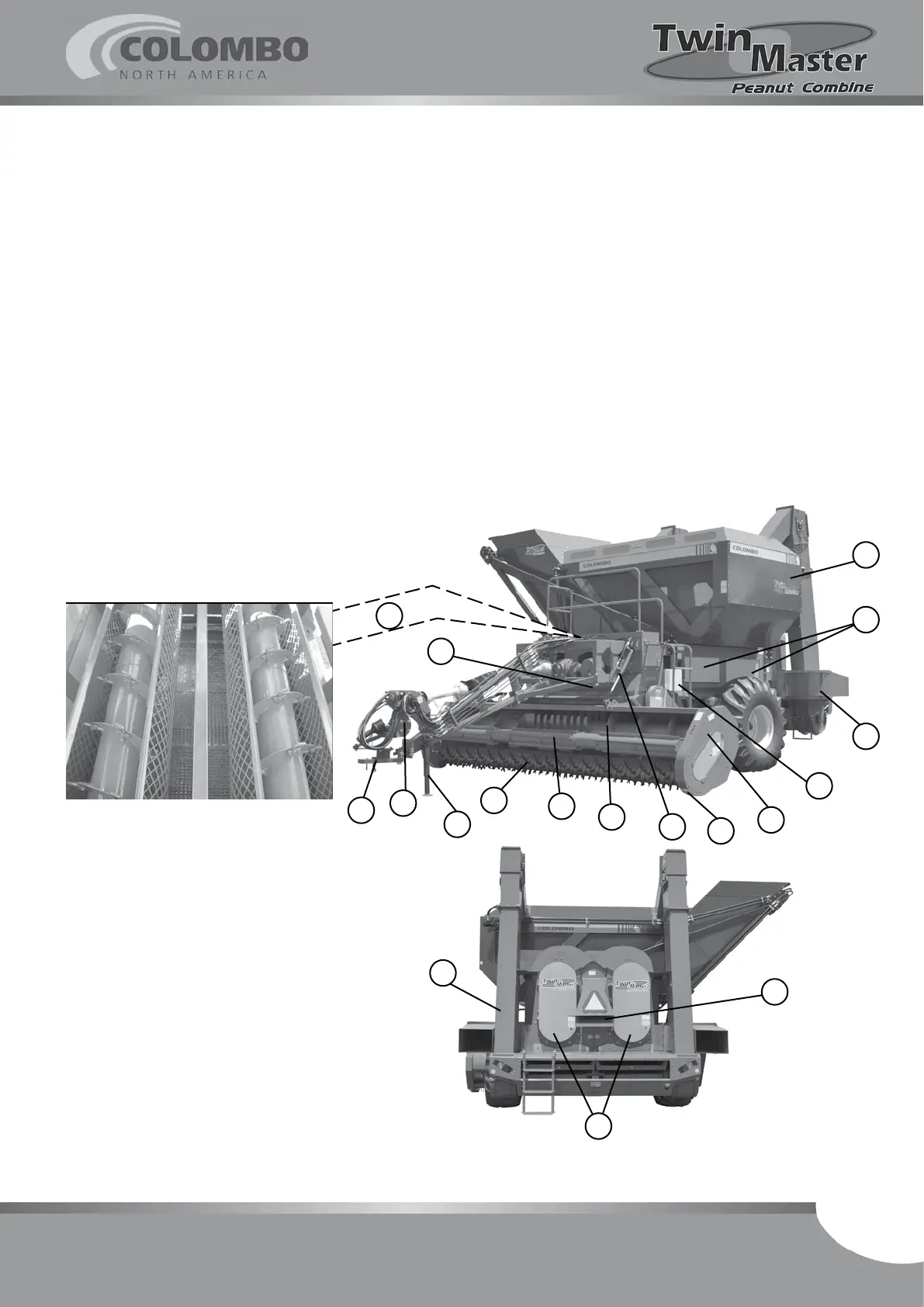

3.1 - Components identication
1 - Auger
2 - Pickup cylinder
3 - Driving cardan
4 - Coupling header
5 - Header Stand Jack
6 - Pickup unit intermediate cylinder
7 - Thick straw outlet
8 - Inspection windows
9 - Grain box
10 - Ladder
11 - Thin straw outlet
12 - Grain elevator

13 - Compartments of the driving belts of
the cleaning system and sieve.
14 - FABI type threshing cylinder (Axial
Flow of Low Impact), located under
the grain box (9).
15 - Guiding cylinder.
16 - Sliding shoes.
17 - Pickup unit.
18 - Pickup unit raising cylinder.
14
6
5
4
2
3
9
8
1
7
10
15
16
17
18
Note:
Whenever the terms “left” and “right”
are used, the tractor moving direction
is considered as reference point.
