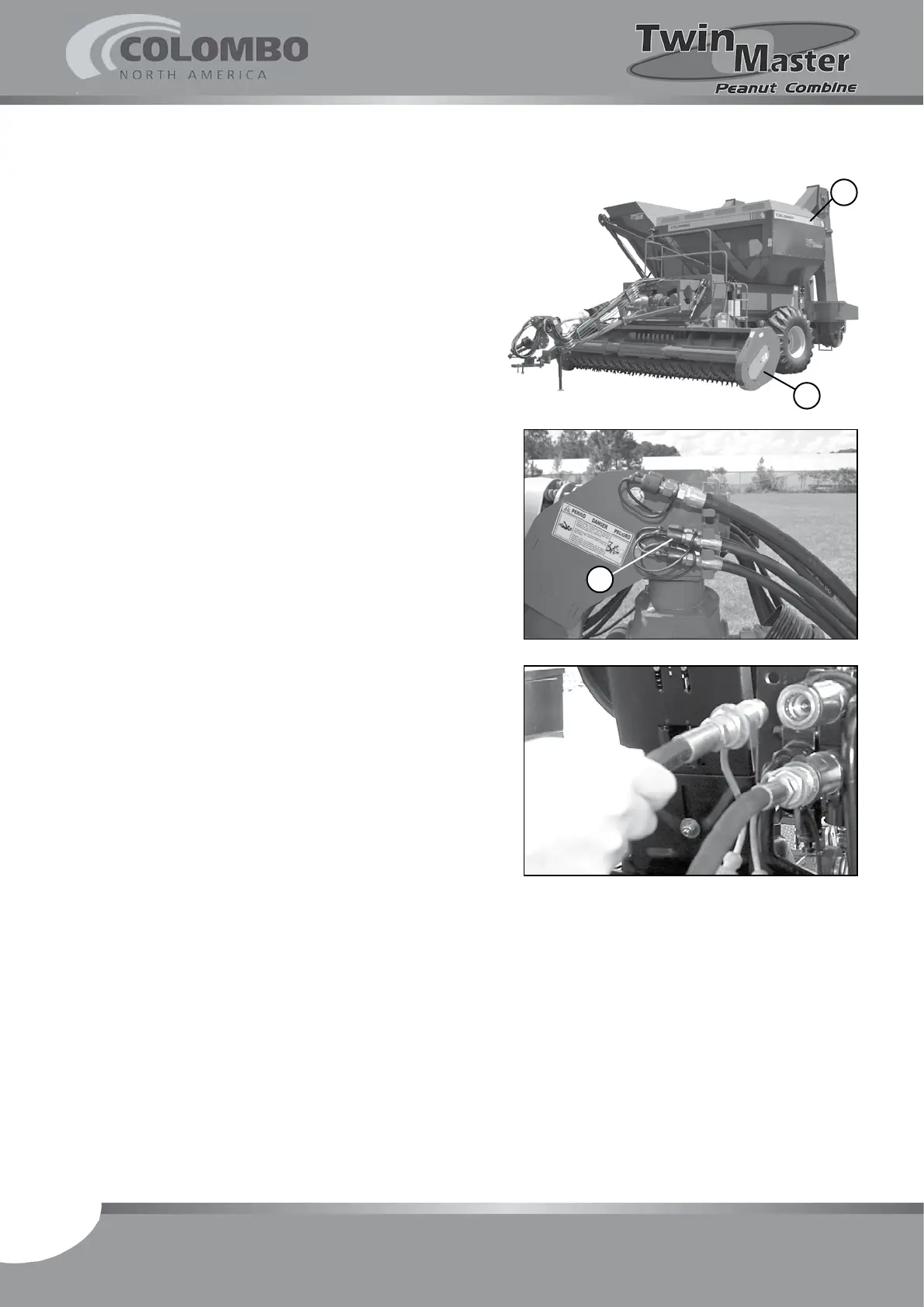

5.2 - Hydraulic coupling
In the tractor remote control, use the three hydraulic lines,
connecting the hoses like this:
Line nº 1 - for driving:
- Tilt (raise and lower) of the pickup unit (6).
Line nº 2 - for driving:
- Tilt (raise and lower) of the grain box (7).
Line nº 3 (optional) for driving:
- Hydraulic motor for driving the pickup cylinder of the
pickup unit.
- Hydraulic motor to drive the spreading auger that
spreads the peanut pods (grain tank).
a) Remove the protecting plugs (5) from the three pairs
of hoses of the machine and from the tractor remote
control terminals.
b) Connect the hoses rmly pushing their terminals against
the remote control terminals (according to gure 1).
5
gure 1
