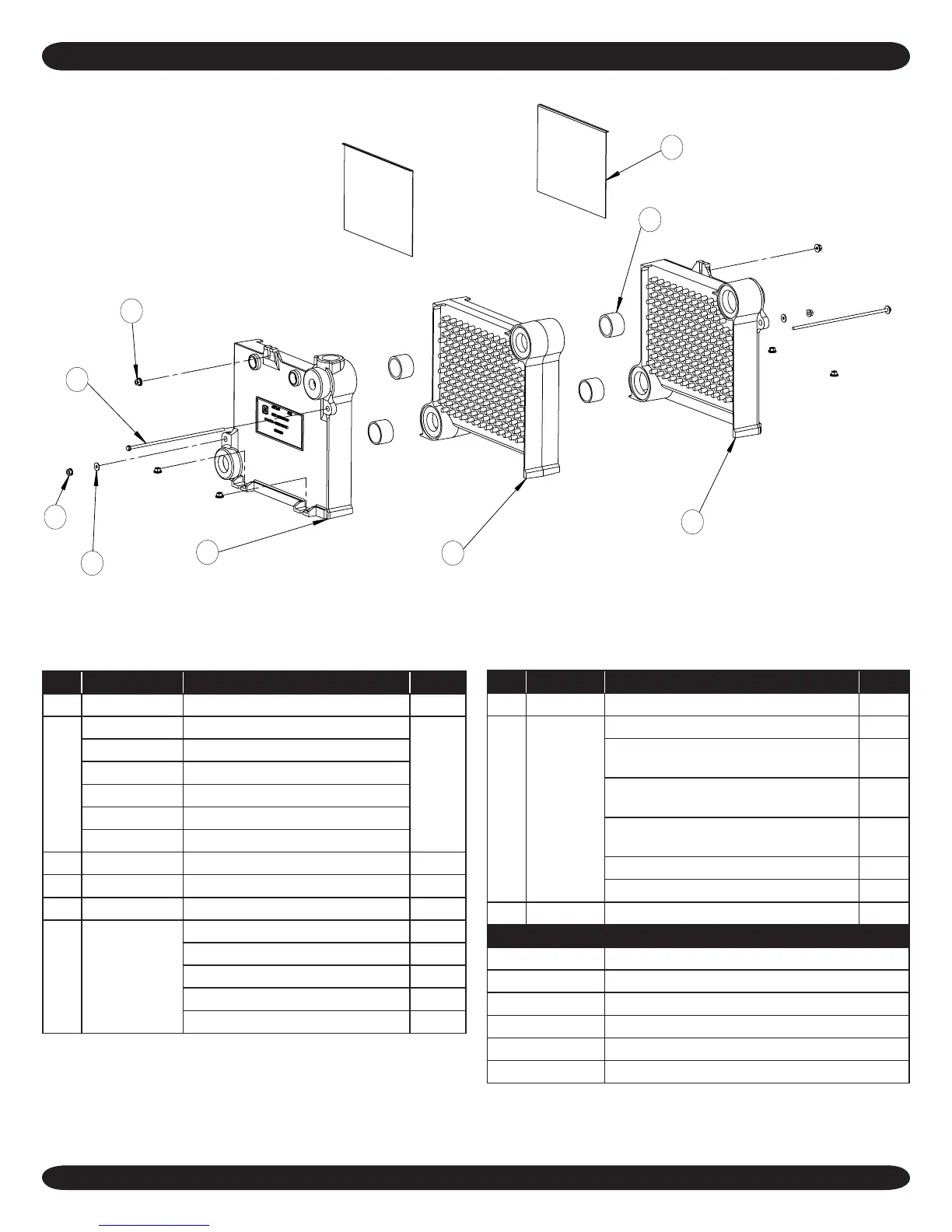

REPLACEMENT PARTS - HEAT EXCHANGER
Item Part No. Description Qty.
1 HW06901 Nut
5
/16 - 18 Wislock 6
2
14605001 Tie Rod - ¼” x 7¼” (045)
2
HW-011.01 Tie Rod - ¼” x 11½” (070, 096)
HW-011.03 Tie Rod - ¼” x 15½” (120, 145)
HW-011.05 Tie Rod - ¼” x 19½” (175, 195)
HW-011.07 Tie Rod - ¼” x 23” (245)
HW-011.09 Tie Rod - ¼” x 27” (295)
3 HW-003.02 Nut ¼”-20 Hex 2
4 HW-008.01 Washer -
5
/16” Flat 4
5 100-2-3.01 Right Hand Section 1
6 100-2-1.01
Center Section (075, 100) 1
Center Section (125, 150) 2
Center Section (175, 200) 3
Center Section (250) 4
Center Section (300) 6
Item Part No. Description Qty.
7 100-2-2.01 Left Hand Section 1
8 43300976
Push Nipple 2” Mach. (050) 2
Push Nipple 2” Mach. (075, 100) 4
Push Nipple 2” Mach. (125, 150) 6
Push Nipple 2” Mach. (175, 200) 8
Push Nipple 2” Mach. (250) 10
Push Nipple 2” Mach. (300) 12
9 3461601 Bafe (075 & 175 Only) 2
Fully Assembled Heat Exchangers
100-2-7.01 Heat Exchanger (3 Section)
100-2-7.02 Heat Exchanger (4 Section)
100-2-7.03 Heat Exchanger (5 Section)
100-2-7.04 Heat Exchanger (6 Section)
100-2-7.05 Heat Exchanger (7 Section)
100-2-7.06 Heat Exchanger (2 Section)
