Columbia MCB50 - Replacement Parts

22

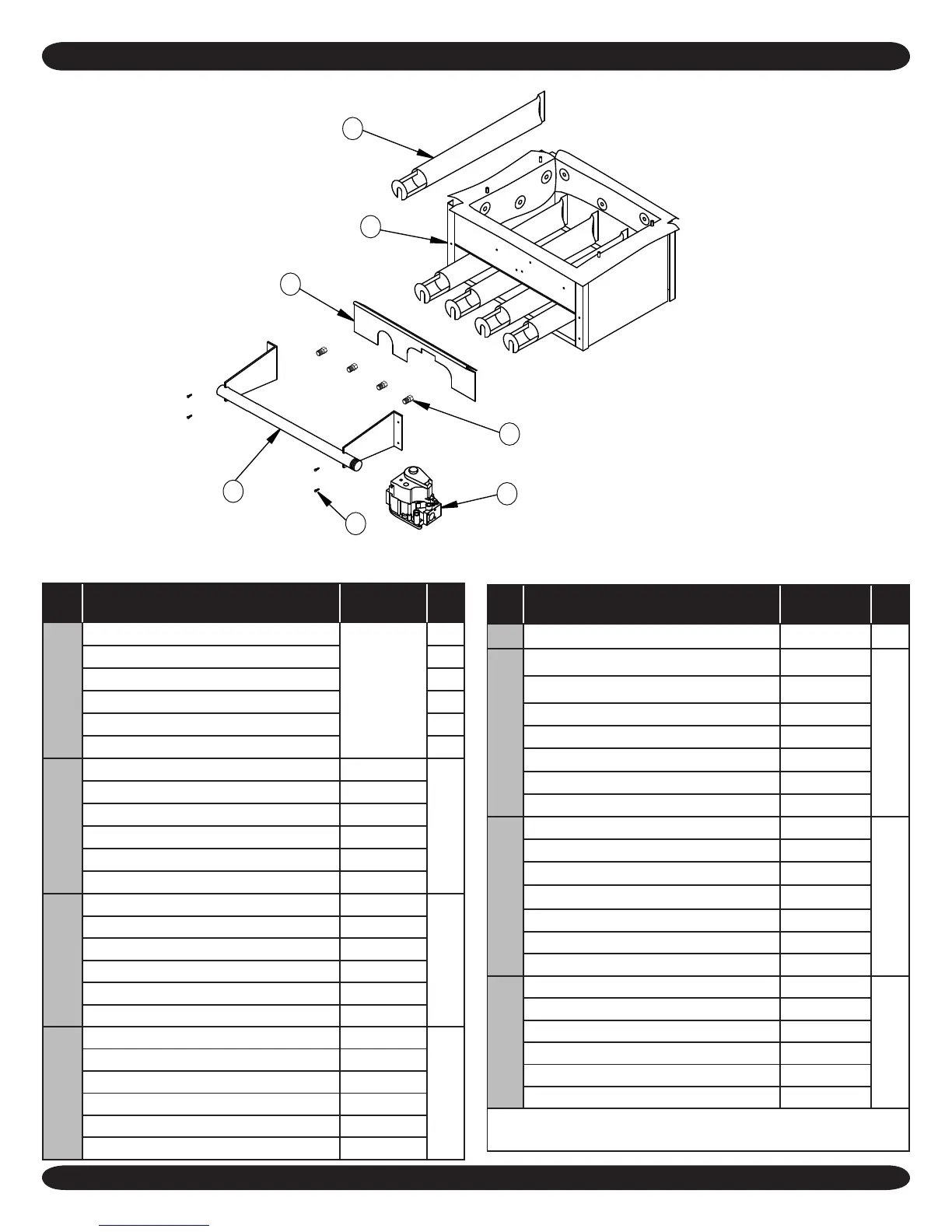

REPLACEMENT PARTS - BASE
1
2
3
4
5
6
7
Item
#
Description Part # Qty.
1
BURNER TUBE 1 1/2" - 50
240005543
1
BURNER TUBE 1 1/2" - 75, 100 2
BURNER TUBE 1 1/2" - 125, 150 3
BURNER TUBE 1 1/2" - 175, 200 4
BURNER TUBE 1 1/2" - 250 5
BURNER TUBE 1 1/2" - 300 6
2
BASE W/INSUL - 50 5611601
1
BASE W/INSUL - 75, 100 5611602
BASE W/INSUL
- 125, 150 5611603
BASE W/INSUL
- 175, 200 5611604
BASE W/INSUL
- 250 5611605
BASE W/INSUL
- 300 5611606
3
BURNER DOOR - 50 3261201
1
BURNER DOOR - 75, 100 3262701
BURNER DOOR -
125, 150 3262801
BURNER DOOR -
175, 200 32621001
BURNER DOOR -
250 32621002
BURNER DOOR -
300 32621003
4
MANIFOLD - 50 356-2-1.01
1
MANIFOLD - 75&100 356-2-1.02
MANIFOLD - 125&150 356-2-1.03
MANIFOLD - 175&200 356-2-1.04
MANIFOLD - 250 356-2-1.05
MANIFOLD - 300 356-2-1.06
Item
#
Description Part # Qty.
5 SCREW ¼ - 20 X ½ SELF TAP HW-005.01 4
6
GAS VALVE VR8200H - 50 - 150 24V NAT VG-003.05
1
GAS VALVE VR8200H - 50 - 300 24V LP VG00307
GAS VALVE VR8204H - 50 - 150 SPARK NAT VG01101
GAS VALVE VR8304H4 - 175-300 SPARK NAT VG01103
GAS VALVE VR8304 - 50-300 SPARK LP VG01104
GAS VALVE VR8300H4 - 250 & 300 24V NAT VG01201
GAS VALVE VR8300H4 - 175 & 200 24V NAT VG01202
7
ORIFICE 3.2mm NAT - 50, 100, 150, 200, 250, & 300 240007406
*
ORIFICE 3.0mm NAT - 175 240007404
ORIFICE 2.9mm NAT - 125 240007403
ORIFICE 2.8mm NAT - 75 240007402
ORIFICE #47 LP - 50, 100, 150, 200, 250, & 300 355-1-5.04
ORIFICE #49 LP - 125&175 355-1-5.06
ORIFICE #50 LP - 75 355-1-5.07
NOT SHOWN
COMBUSTIBLE BASE FLOORING - 50 325-2-8.01
1
COMBUSTIBLE BASE FLOORING - 75, 100 325-2-8.02
COMBUSTIBLE BASE FLOORING - 125, 150 325-2-8.03
COMBUSTIBLE BASE FLOORING - 175, 200 325-2-8.04
COMBUSTIBLE BASE FLOORING - 250 325-2-8.05
COMBUSTIBLE BASE FLOORING - 300 325-2-8.06
* Orice Quantities: Model 50 - qty 1; Model 75 & 100- qty 2; Model 125 & 150-
qty 3; Model 175 & 200- qty 4; Model 250- qty 5; Model 300- qty 6.
