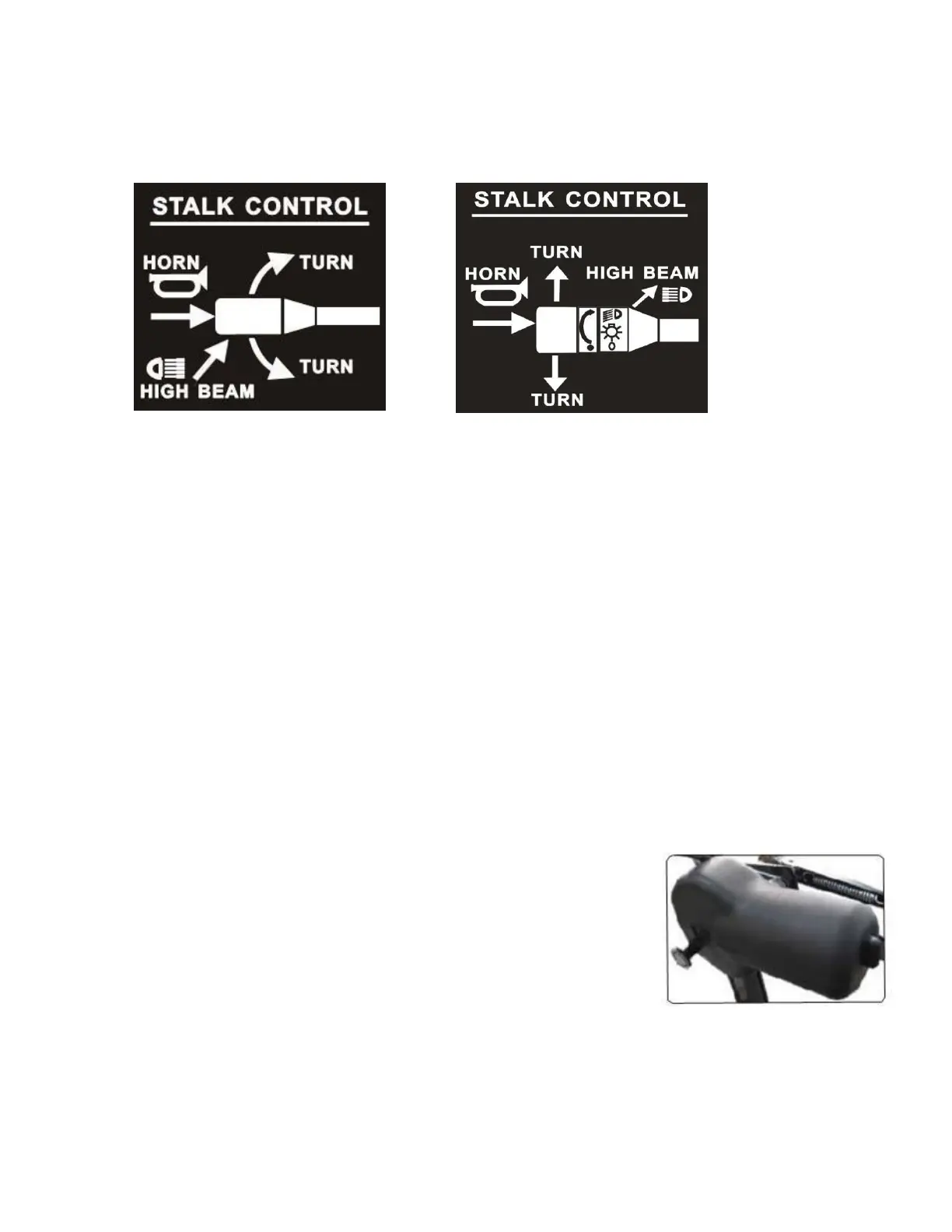

Multifunction Stalk: Turn Signals/Horn/High Beam/Low Beam
The Multi-Function Stalk is a multi-feature control. It is located on the left side of the steering wheel and
functions like an automobile for the turn signals and also includes the high beam and horn control.
Revenge
LE PLUS, SS Coupe/Saloon
Turn Signal
Pushing down on the stalk indicates a left turn, pushing up indicates a right turn.
Note: For the Revenge model, the turn signal stalk will not automatically return to the off position after a turn,
the
operator should manually move the stalk to the center position upon completing each turn.
Horn
To activate the horn, the operator should press the end of the stalk.
Headlights
Engage the headlamp switch on the dashboard (Revenge) or on steering column (LE, SS Coupe/Saloon) to
activate
the headlamps. See page 9 for the location of the headlight switch.
• Revenge: pulling the multi-function stalk up will initiate the low beam, while pushing the multi-function stalk
down will initiate the high beam; at the same time, the blue indicator on speedometer will illuminate to show
that
the high beam headlamp is on.
• LE PLUS, SS Coupe/Saloon: pulling the multi-function stalk up will initiate the high beam.
Windshield wiper
(If equipped) the windshield wiper switch is on the wiper motor which located
at the left corner of windshield frame. When the power switch is in the “ON”
position, pull out the wiper switch to engage the wiper motor, push it forward
to disengage.
