ADJUSTMENTS
AND
INSPECTIONS
SIMPLA 45-50
Doc. 10001244
Em. 04/2007
Rev. 00
Pag. 5 di 6

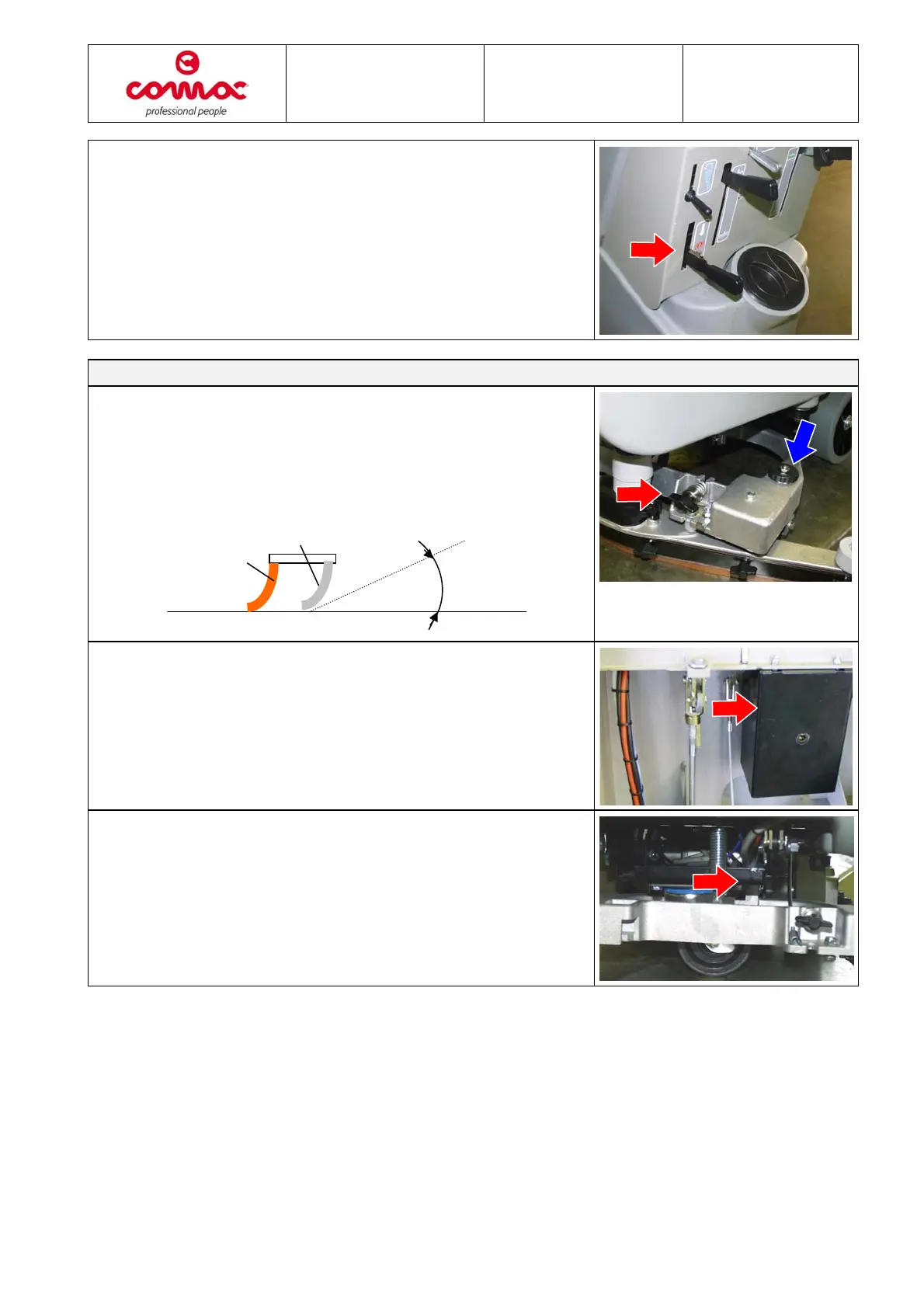

1. Adjustment hand brake: Verify if the lever does not snap
more than 3-4 times. If necessary restore the right execution
register the nut on the brake cable.
2. Adjustment of the brake disk. Verify the uniform brake effect.
Try to turn the machine with insert brake to the left and to the
right: Check if the wheels remain blocked in the same way.
Adjustment Squeegee
1. Adjustment of the inclination controller back rubber in
working conditions, in order to obtain a uniform inclination.
2. Adjust the wheel height with the corresponding hand wheel.
Check, if the rubber has an inclination about 30°-45° and is
not pressed on the floor or in a lifted position.
3. Adjust the length of the lifting cable with the corresponding
controller, until the back rubber is lifted about 4-5 cm from
the floor. The squeegee should not have contact with the tank
outlet. Afterwards fix the nut.
4. Check, if the Spring ring is completely closed.
About 30°-45°
Back rubber
Front rubber
